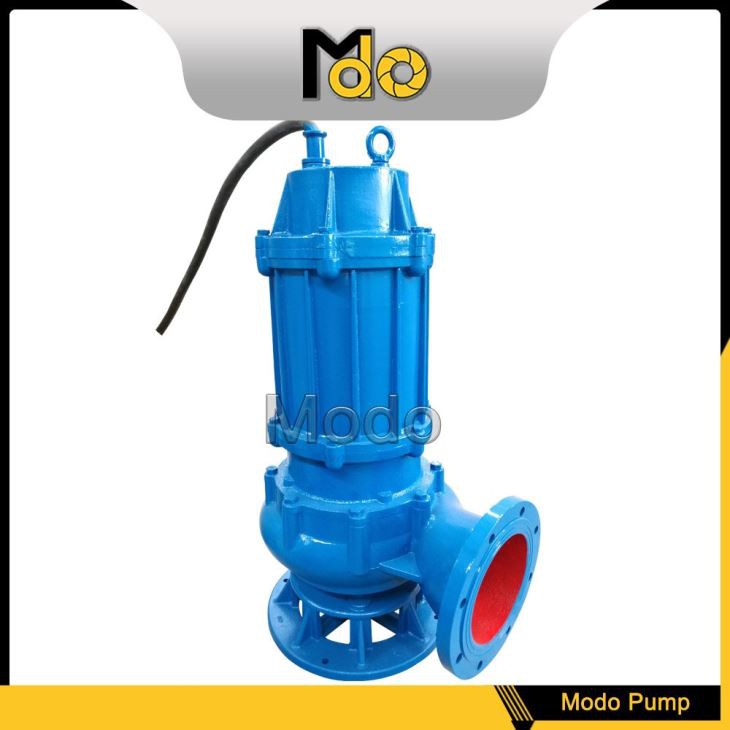

Centrifugal Submersible Sewage Pump
Centrifugal electric submersible sewage water pump can work in buildings, hotels, hospitals, civil air defense, mines.
Centrifugal electric submersible sewage pump for duty water

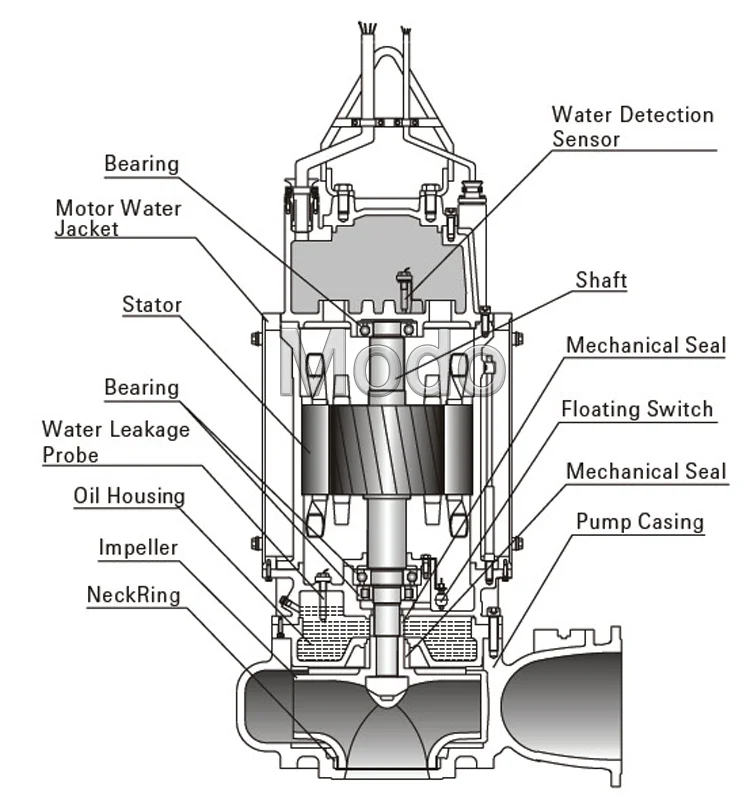

Structural Drawing
Performance Parameter
Selection Chart
Type | Outlet Dia. (mm) | Capacity (m3/h) | Head (m) | Power (kw) | Efficiency (%) |
50WQ15-8-0.75 | 50 | 15 | 12 | 0.75 | 52 |
50WQ25-36-7.5 | 50 | 30 | 15 | 7.5 | 48 |
65WQ30-10-2.2 | 65 | 30 | 10 | 2.2 | 62 |
65WQ30-35-7.5 | 65 | 30 | 35 | 7.5 | 50 |
80WQ50-8-2.2 | 80 | 50 | 8 | 2.2 | 60 |
100WQ80-7-3 | 100 | 80 | 7 | 3 | 64 |
150WQ150-10-7.5 | 150 | 150 | 10 | 7.5 | 72 |
200WQ300-10-15 | 200 | 300 | 10 | 15 | 74 |
250WQ500-10-30 | 250 | 500 | 10 | 30 | 72 |
300WQ700-19-55 | 300 | 700 | 19 | 55 | 75 |
350WQ1100-25-110 | 350 | 1100 | 25 | 110 | 76 |
400WQ2000-23-185 | 400 | 2000 | 23 | 185 | 80 |
500WQ3000-15-132 | 500 | 3000 | 15 | 185 | 72 |
600WQ4000-20-315 | 600 | 4000 | 20 | 315 | 77 |

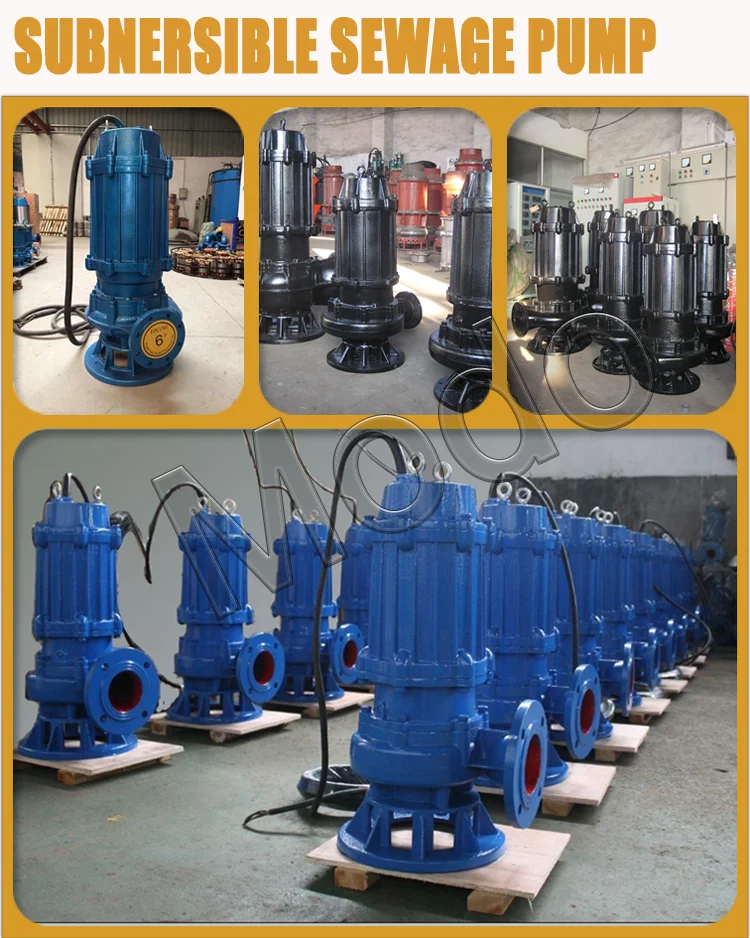

WQ Submersible Sewage Pump Series
WQ Submersible Sewage Pump can work in buildings, hotels, hospitals, civil air defense, mines.
Installation of WQ Sewage Treatment Pump
FAQ
1. What is your product range?
Slurry pumps ( vertical, submersible type.)
Water pumps(submersible, deep well)
2. What information I need to offer for quotation?
Liquid:___ Pump Capacity___m3/h
PH:_____ Pump Head: ___m
Specific of gravity___ Voltage ___V Frequency ___Hz
3. Do you only supply pumps? Could you supply driven equipment?
Yes, sure ,the pumps could be coupled with motor, below brands for your reference:
Motor: WEG, SIMENS ,ABB, TECO ,and Chinese brands
4. What is your MOQ?
We value every client, no matter pump or spare parts, one set or one piece, we treat the same with 100sets.
5. Is OEM parts available ?
Yes, please send me the detailed drawing. Different materials is available.
