Submersible Pump For Sewage Work
submersible pump type WQ for sewage work RFQ from client: sewage work (in the composition of il, fine sludge, soil, sand, mud, etc.), the following characteristics: productivity 800-850 m3 / h, head - not less than 35 m, engine power-80-130 kW If you do not mind tell the price of the pump Thank...
Submersible Pump For Sewage Work
MWQ Submersible Sewage Pump is mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defense, mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.
Chart for reference
Type | Outlet Dia. (mm) | Capacity (m3/h) | Head (m) | Power (kw) | Efficiency (%) |
50WQ15-8-0.75 | 50 | 15 | 12 | 0.75 | 52 |
50WQ25-36-7.5 | 50 | 30 | 15 | 7.5 | 48 |
65WQ30-10-2.2 | 65 | 30 | 10 | 2.2 | 62 |
65WQ30-35-7.5 | 65 | 30 | 35 | 7.5 | 50 |
80WQ50-8-2.2 | 80 | 50 | 8 | 2.2 | 60 |
100WQ80-7-3 | 100 | 80 | 7 | 3 | 64 |
150WQ150-10-7.5 | 150 | 150 | 10 | 7.5 | 72 |
200WQ300-10-15 | 200 | 300 | 10 | 15 | 74 |
250WQ500-10-30 | 250 | 500 | 10 | 30 | 72 |
300WQ700-19-55 | 300 | 700 | 19 | 55 | 75 |
350WQ1100-25-110 | 350 | 1100 | 25 | 110 | 76 |
400WQ2000-23-185 | 400 | 2000 | 23 | 185 | 80 |
500WQ3000-15-132 | 500 | 3000 | 15 | 185 | 72 |
600WQ4000-20-315 | 600 | 4000 | 20 | 315 | 77 |
Pump specification
·Usage: | Sewage & Clean Water |
·Type: | MWQ Submersible Sewage Pump |
·Capacity | Up to 5760m3/hr( 1600 L/s ) |
·Head | Up to 62 m ( 203 feet ) |
·Speed: | Up to 2880 rpm |
·Outlet Dia: | 50mm to 2600mm (2＂up to 23＂) |
·Temperature | Max.: 155 ℃ |
·Drive | Electric |
·Shaft | 420 Stainless Steel |
·Pump Casing | Cast Iron/SS304/SS316 |
·Impeller | Cast Iron |
·Neck Ring | Cast Iron |
·Motor Water Jacket | Mild Steel |
·Motor Mechanical Seal | 304 Stainless Steel |
·Wet End Mechanical Seal | 304 Stainless Steel |
·Motor Body | Cast Iron |
·Oil Housing | Cast Iron |

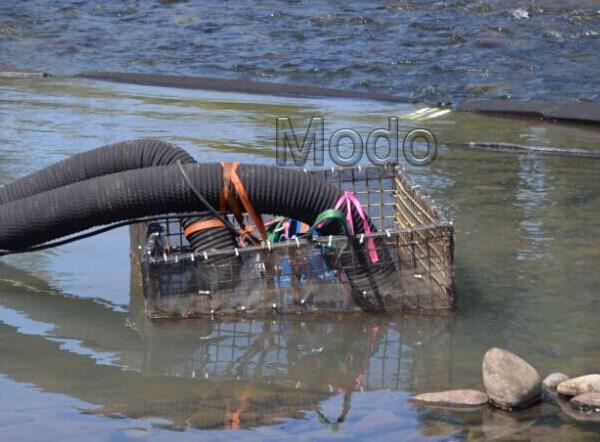

Sewage pump photos
Modo Pump provides submersible sewage pump for Italian customers in wetland modification projects. The pump has strong sewage discharge capacity, which can tear and cut the long fibers, bags, grass, cloth strips and other substances in the sewage, and then discharge smoothly. It is simple to install and reduces the cost of construction. In the whole project, there are no problems in the use of submersible sewage pumps in the river diversion, sewage Treatment and sediment discharge, and the wetland reconstruction is completed ahead of schedule.
Client need it urgently ,luckily we have stock!
Contact us for your solution!
