High Pressure Slurry Pump

Modo Pump has been focused on high pressure slurry pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our high pressure slurry pump and check the price list with us.



Description

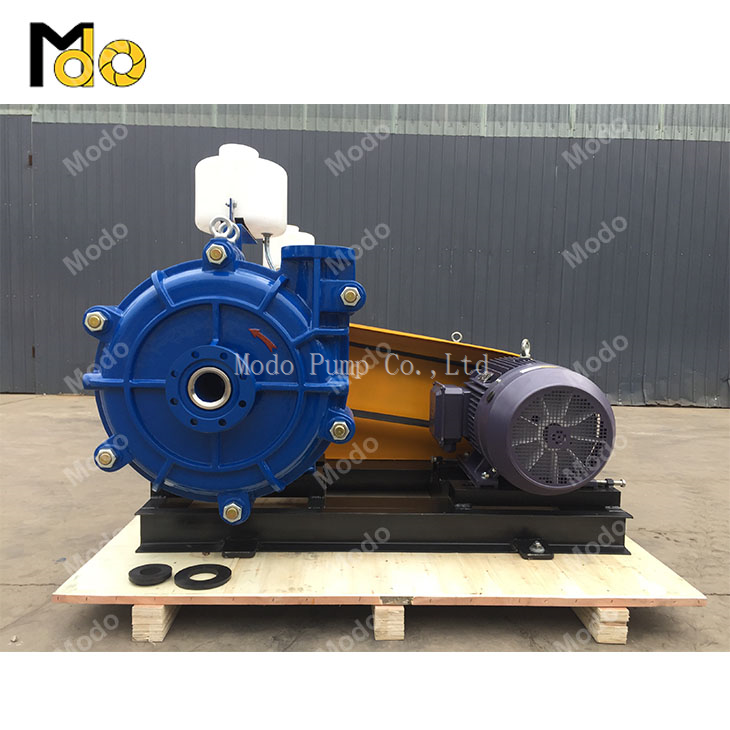

The MHH high pressure slurry pump is a single stage, single suction, cantilever, centrifugal wear-resistant slurry pump. The MHH high pressure slurry pump has thick wear parts and is equipped with heavy-duty frame, making it suitable for conveying strong abrasion, high concentration slurry or low concentration high lift slurry.

Model	Power(KW)	Flowrate (m³/h)	Head(m)	Speed (r/min)	Efficiency η%	NPSHr(m)	Impeller diameter(mm)	Weight (kg)
1.5/1C-HH	7.5-30	16.2-34.2	25-92	1400-2200	20	2-5.5	330	318
3/2D-HH	15-60	68-136.8	25-87	850-1450	47	3.7.5	457	750
4/3E-HH	18.5-120	126-252	12-97	600-1400	50	2-5	508	1250

 Features

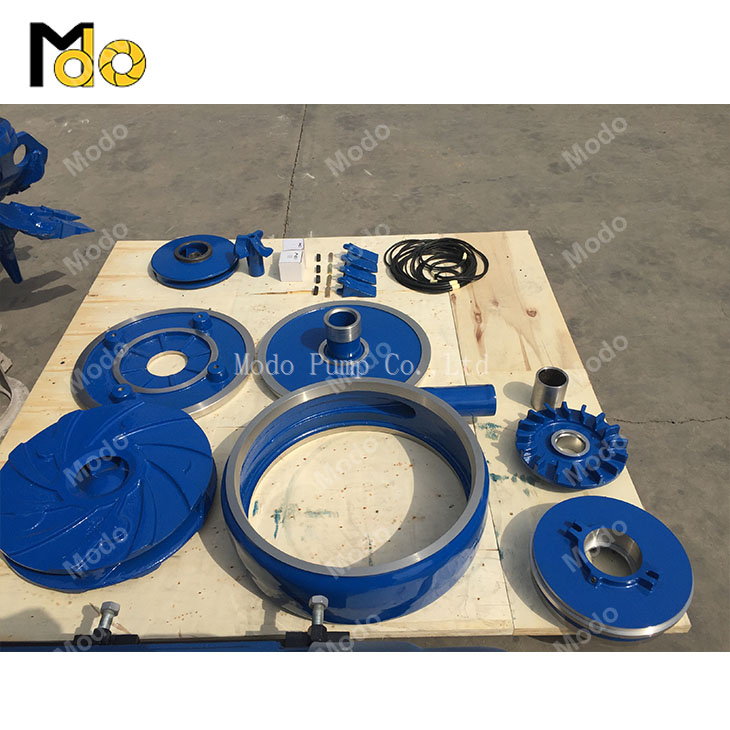

The MHH high pressure slurry pump can be used to transport slag slurry with certain corrosiveness. The wet end parts, including impeller, volute liner, throat bush and frame plate liner insert, are all made of wear-resistant high chrome material. These parts are replaceable if any needed.

It has 3 kinds of shaft seals for difference application: packing seal, expeller seal and mechanical seal.
The outlet position of the high pressure slurry pump can be installed and used by rotating 8 different angles at intervals of 45 ℃ as needed.
Within the maximum allowable working pressure range, the slurry pump can be used in multiple stages in series.

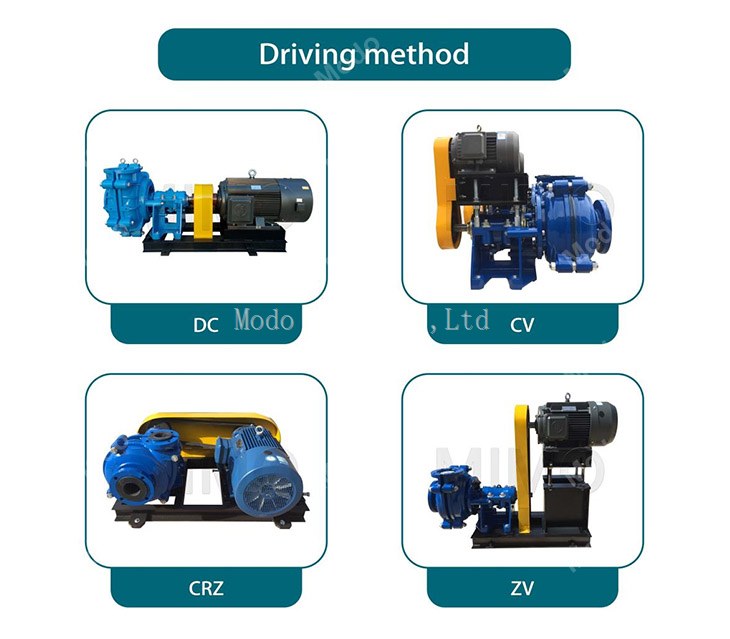

The high pressure slurry pump have 4 drive arrangements to suit for all requirements of installation spaces.

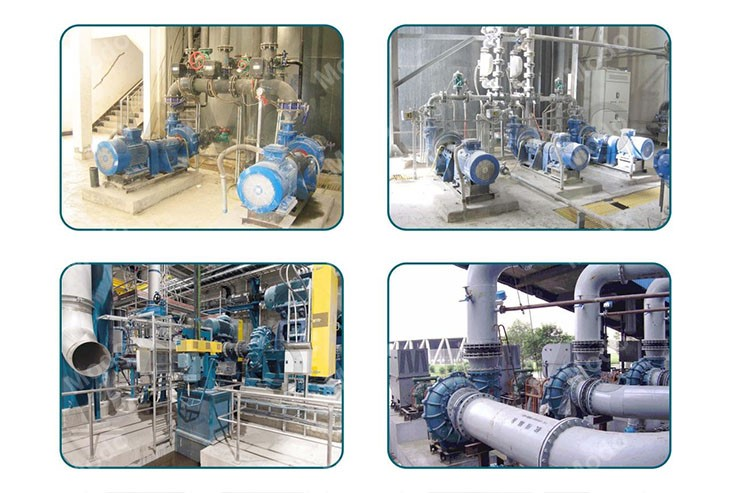

Application
High pressure slurry pumps are commonly used in various industries for applications that involve pumping abrasive or viscous slurries under high pressure conditions. Here are some typical applications where high-pressure slurry pumps are utilized:
Mining and Mineral Processing: High-pressure slurry pumps play a crucial role in the mining industry for transporting mineral slurries. They are used for applications such as transferring ore concentrates, tailings disposal, dewatering, and hydrotransport of slurries in mineral processing plants.
Oil and Gas Industry: In oil and gas exploration and production, high-pressure slurry pumps are employed for drilling mud circulation, well stimulation, and fracking operations. These pumps are capable of handling abrasive drilling fluids and delivering them at high pressures to enhance drilling efficiency.
Power Generation: High pressure slurry pumps find application in power plants, especially in coal-fired power stations. They are used to transport coal slurry, ash, and other abrasive materials involved in the coal handling process, such as fly ash disposal and bottom ash handling.
Chemical and Petrochemical Industry: Slurry pumps with high-pressure capabilities are utilized in chemical and petrochemical plants for various applications. They can handle corrosive and abrasive fluids, including slurries containing chemicals, catalysts, and byproducts.
Sand and Gravel Industry: High pressure slurry pumps are employed in sand and gravel operations for dredging, sand washing, and gravel extraction. These pumps are designed to handle large volumes of solids and transport them over long distances.
Waste and Water Treatment: Slurry pumps with high-pressure capabilities are used in municipal and industrial wastewater treatment plants for transporting sludge, biosolids, and other abrasive or viscous materials. They are also employed in desalination plants for seawater intake and brine disposal.
Construction and Tunneling: High pressure slurry pumps are utilized in construction projects involving tunneling, microtunneling, and pipe jacking. They are used to transport the excavated soil and other debris from the construction site.
Ceramic and Glass Industry: In ceramic and glass manufacturing processes, high-pressure slurry pumps are used for pumping abrasive slurries containing materials like clay, silica, feldspar, and other raw materials.
