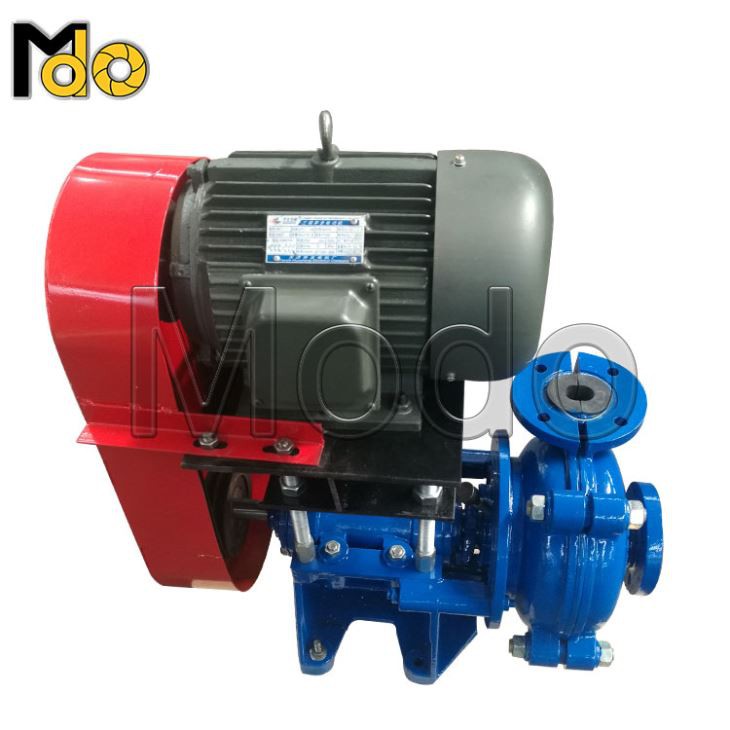

Horizontal Slurry Mining Mud Sand Pump

Name: Horizontal Slurry Mining Mud Sand Pump
Brand: Modo Pump Co.,Ltd
SKU: 62010142

Transfer of abrasives and high density slurries in: Mining Metallurgical Processing Civil Construction Heavy Industry Processing

Product Details

Low Price Horizontal Slurry Mining Mud Sand Pump With Motor

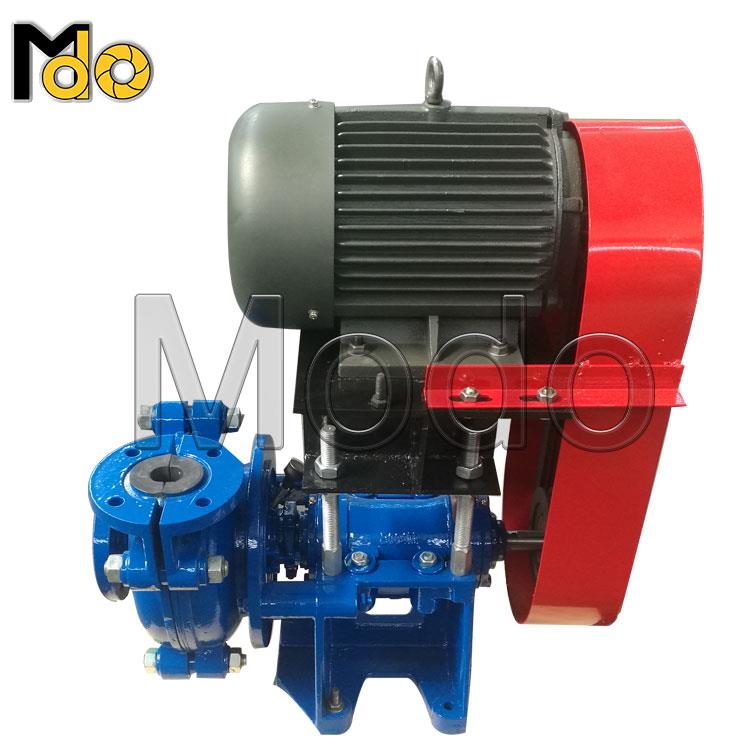

AH渣浆泵17

Features

• Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.

• Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.

• Casing – casing halves of cast or ductile iron provide high operating pressure capabilities.

• Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

• Throat bush – wear is reduced and maintenance simplified by the use of tapered.

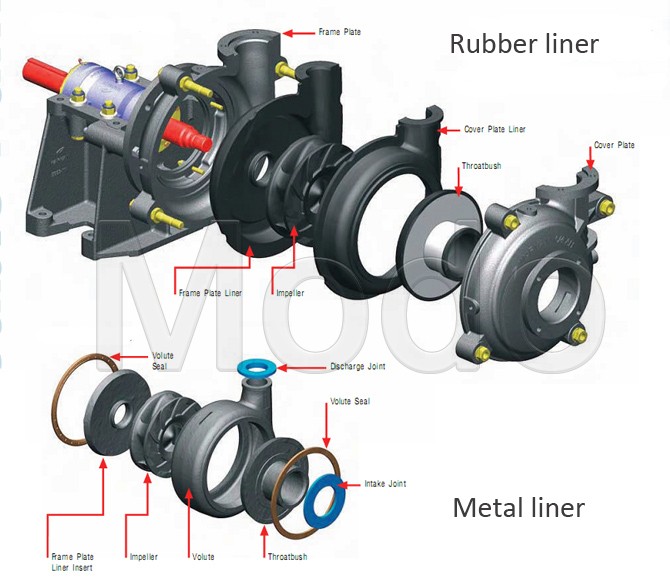

construction drawing

Pump Parts Materials

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber
