Rubber Lined Anti Corrosive Slurry Pumps in Mining

Modo Pump has been focused on rubber lined anti corrosive slurry pumps in mining manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our rubber lined anti corrosive slurry pumps in mining and check the price list with us.



Available Models of Rubber Lined Anti Corrosive Slurry Pumps in Mining:

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

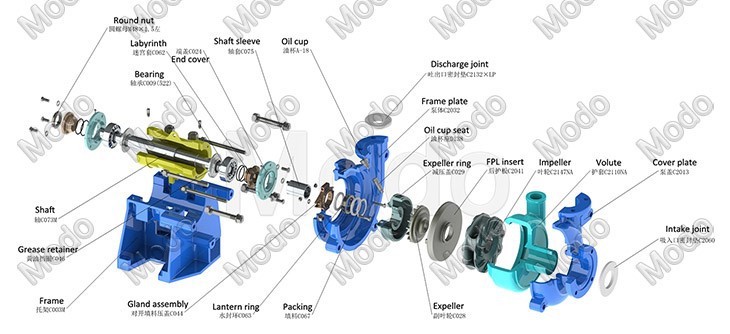

Exploded diagram of Rubber Lined Anti Corrosive Slurry Pumps in Mining:

Introduction of Rubber Lined Anti-Corrosive Slurry Pumps in Mining:
Rubber lined anti-corrosive slurry pumps have been making waves in the mining industry due to their outstanding resistance to wear and corrosion. These pumps are designed to handle abrasive slurry with minimum wear and tear, ensuring long-lasting service. The use of rubber in the lining material significantly enhances the pump's resistance to corrosion, thereby reducing maintenance costs and increasing overall efficiency.

The mining industry demands pumps that can handle a wide range of slurry types while providing reliable and efficient performance. Traditional pumps have a high probability of experiencing erosion and corrosion, leading to frequent breakdowns and repairs. However, the introduction of rubber lined anti-corrosive slurry pumps has revolutionized this aspect of the industry.

Rubber-lined slurry pumps have many benefits, including reduced downtime, increased productivity, and lower operational costs. They are available in various sizes and configurations, making them ideal for diverse mining applications. The use of rubber linings in these pumps has significantly reduced the need for frequent maintenance, allowing for continuous operation and increased production.

Spare parts of Rubber Lined Anti-Corrosive Slurry Pumps in Mining:

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

How is a Rubber Lined Anti-Corrosive Slurry Pumps in Mining working?
A Rubber Lined Anti-Corrosive Slurry Pump is a type of pump used in the mining industry to transfer abrasive and corrosive slurries. Its unique feature is the rubber lining that helps to protect the pump from corrosion and abrasion, extends its lifespan, and ensures optimal performance.

The working principles of this type of pump are simple. The slurry is drawn into the pump through the suction pipe and passed onto the impeller. The impeller spins at high speed, which creates a centrifugal force that pulls the slurry towards the edges of the impeller. The slurry is then forced out of the pump through the discharge pipe, which results in the transfer of the material from one location to another.

Rubber lining is the key feature that makes this type of pump resistant to corrosion from highly acidic or alkaline materials that are often found in mining operations. This lining helps to absorb the impact of the abrasive and corrosive slurry, which reduces the amount of wear and tear on the metal parts of the pump.

Another advantage of a Rubber Lined Anti-Corrosive Slurry Pump is its efficiency. These pumps are designed for high volume and high-pressure operations, which means they can transfer large volumes of slurry over long distances with minimal energy consumption. This results in a lower cost of operation and a more sustainable pumping solution.

In conclusion, a Rubber Lined Anti-Corrosive Slurry Pump is an essential tool in the mining industry. Its rubber lining protects it from corrosion and abrasion, making it durable and high-performing. Its efficiency and lower cost of operation make it an attractive option for mining companies looking for a reliable pumping solution.

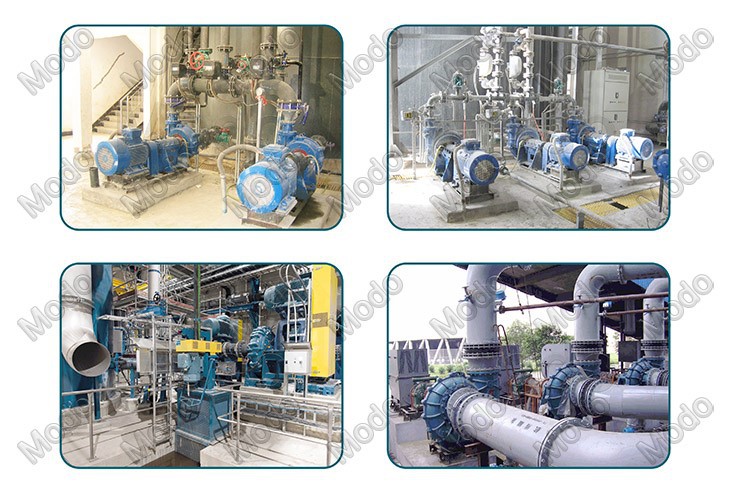

Working site of Rubber Lined Anti-Corrosive Slurry Pumps in Mining:

Contact us for your solution!
