Thick Coal Slurry Pump

Modo Pump has been focused on thick coal slurry pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our thick coal slurry pump and check the price list with us.



What we shall to know if we want to select a thick coal slurry pump:

1. Type of slurry: The type and characteristics of the slurry being pumped, including its viscosity, density, abrasiveness, and chemical composition, will determine the type of thick coal slurry pump you need.

2. Flow rate: The desired flow rate of the slurry and the required discharge head will help you determine the size and capacity of the thick coal slurry pump.

3. Efficiency: The efficiency of a thick coal slurry pump is crucial, as it impacts the amount of energy needed to pump the slurry, and hence, the operating costs.

4. Material construction: The materials used in the pump construction must be able to withstand the harsh conditions of the slurry, including its corrosive and abrasive properties.

5. Seal options: The type of seal used in the thick coal slurry pump will depend on the slurry being pumped and the operating conditions.

6. Maintenance requirements: The thick coal slurry pump maintenance needs, including the frequency and cost of repairs, must be considered when selecting a suitable slurry pump.

7.Service and support: The availability of spare parts, technical support, and other services must also be considered, especially if your pump is critical to your operations.
8. Operating temperature: The temperature of the slurry can affect the wear and tear of the pump materials. It is important to consider the operating temperature when selecting the pump material.
9. pH level: The pH level of the slurry can also impact the pump material. Acidic or alkaline slurries can corrode some materials faster than others.

10. Velocity and pressure: The velocity and pressure of the slurry can also affect the material selection of the pump. High velocity and pressure can cause erosion and wear on the thick coal slurry pump parts.

11.Particle size and concentration: The size and concentration of the particles in the slurry will have a significant impact on the pump material selection. The thick coal slurry pump material must be able to withstand the abrasive nature of the particles.
12. Mineral content: The mineral content of the slurry can also affect the pump material selection. Some minerals can be highly corrosive to thick coal slurry pump materials.

Models of thick coal slurry pump

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

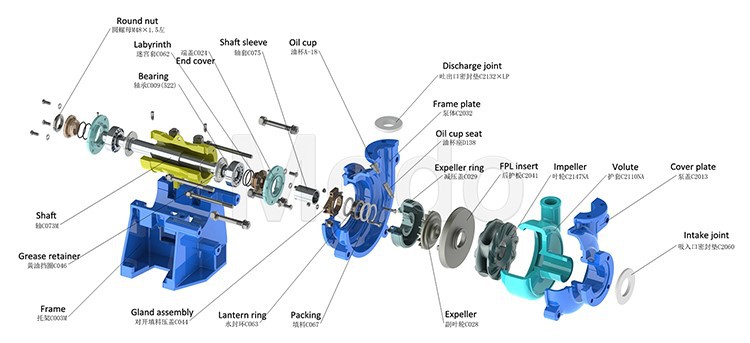

Exploded diagram of thick coal slurry pump:

Spares parts of thick coal slurry pump:

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

Working site of thick coal slurry pump

 Driving method
