Tunnelling Application Gravel Pump

Modo Pump has been focused on tunnelling application gravel pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our tunnelling application gravel pump and check the price list with us.



Assembling the Tunnelling Application Gravel Pump is a relatively straightforward process that can be completed quickly and easily if you follow the correct steps. In this guide, we will take you through the entire process, from unpacking the pump to the final assembly.

Step 1: Unpack the pump

The first step in assembling the Tunnelling Application Gravel Pump is to unpack it carefully. Remove all the parts from the box and make sure that everything is included. Check the manual to ensure that all the components are present.

Step 2: Prepare the base

Next, prepare the base by ensuring that it is clean and free of any debris. Place the base in a stable position and ensure that it is level. Make sure that the engine is in a safe and secure place before proceeding.

Step 3: Attach the suction hose

Attach the suction hose to the pump’s inlet using the clamp provided. Ensure that the hose is securely fastened to the pump.

Step 4: Attach the discharge hose

Attach the discharge hose to the pump’s outlet using the clamp provided. Ensure that the hose is securely fastened to the pump.

Step 5: Install the strainer

Insert the strainer into the suction hose and ensure that it is securely fastened. The strainer will protect the pump from any debris that may clog the impeller.

Step 6: Check the oil level

Check the oil level in the engine and add oil if necessary. It is important to use the recommended oil for the engine.

Step 7: Start the engine

Start the engine and check the pump for any leaks. Run the pump for a few minutes to ensure that it is functioning properly.

Step 8: Test the pump

Once the pump is running smoothly, test it by adding water to the suction hose and checking the discharge rate. Adjust the throttle as necessary to achieve the desired output.

In conclusion, assembling the Tunnelling Application Gravel Pump is a simple and straightforward process that can be completed with minimal effort. By following the correct steps, you can ensure that the pump is assembled correctly, and ready to use for all your tunnelling applications.

Feature of Tunnelling Application Gravel Pump:

Description
Usage: Slurry, Sand& Sewage
Type	MAH Horizontal Slurry Pump
Capacity	Up to 2880m3/hr(800 1/s)
Head	Up to 65m (214 feet)
Speed	Up to 1500rpm
Size	25mm to 300mm (1 up to 12")
Temperature	Max.110°C
Drive	Diesel or Electric
Shaft	40Cr
Shaft Sleeve	3Cr13
Bearing Assembly	Timkin
Cover Plate	Cast lron
Throat Bush	27% Chrome White lron or Rubber
Liner	27% Chrome White lron
Pump Casing	Cast iron
Impeller	27% Chrome White lron or Rubber

Available models of Tunnelling Application Gravel Pump:

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

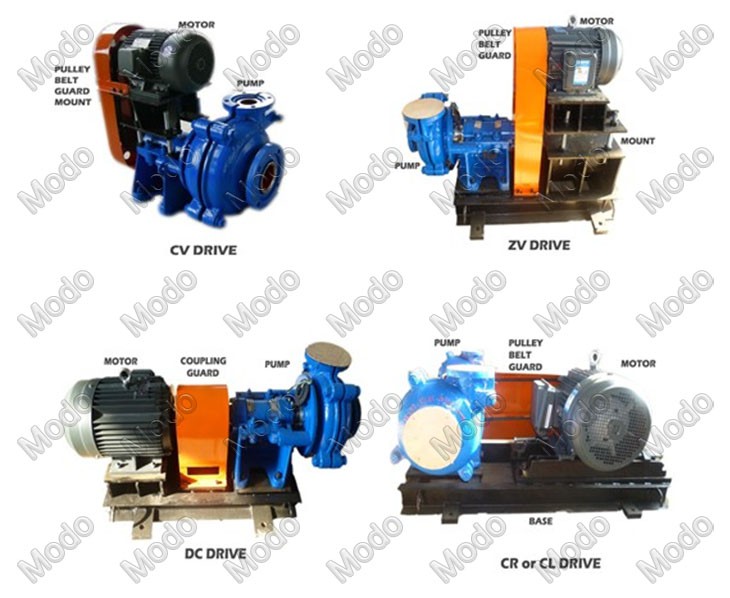

Driven method of Tunnelling Application Gravel Pump:

Contact us for your solution!
