Sand Slurry Pump Price
Sand slurry pump price As for sand slurry pump price,which could be interchangable with .But we have more competitive price than .And the lifetime is similar.Wet ends of sand slurry pump available:high chrome,R55,ceramic liner,ss304& ss316. Application of sand sand slurry pump:...
Sand slurry pump price
As for sand slurry pump price,which could be interchangable with .But we have more competitive price than.And the lifetime is similar.Wet ends of sand slurry pump available:high chrome,R55,ceramic liner,ss304& ss316.
Application of sand sand slurry pump:
1. Mining industry (concentrator)
The main purpose of the sand slurry pump is to be used in the mining industry. Some concentrators are the main manufacturers of the slurry pump. The sand slurry particle solid slurry of the mine cannot be removed manually, and the sand slurry pump can easily remove it. Because of the bad use environment of the mine, the life of the slurry pump is greatly affected, which requires the manufacturers to select high-quality products when choosing the sand slurry pump.
2. Power industry (power plant)
In China, it is mainly hydropower and thermal power generation. Through coal-fired power generation, thermal power plants will produce a lot of ash and slag mixed with scale, which requires sand slurry pump to clean it up. Therefore, thermal power plants also call sand slurry pump as ash pump.
3. Coal washing industry
Because the coal block is relatively large, mostly solid block, it is easy to block the sand slurry pump. The coal washing industry has a very high demand for sand slurry pump, so it is necessary to select the sand slurry pump with high flow rate and high throughput. Many sand slurry pumps can not meet these requirements. In 2005, our country independently developed and designed the slurry pump suitable for the use of the coal washing industry to solve the blocking problem.
Specification of sand slurry pump:
Type | Max. power | Capacity | Head | Speed | Max.Eff | NPSH | Impeller Dia. | Max.particle size |
(kw) | (m³/h) | (m) | (r/min) | (%) | (m) | (mm) | (mm) | |
MAH1.5-1 | 15 | 12-28 | 6-65 | 1200-3800 | 40 | 2-4 | 150 | 14 |
MAH2-1.5 | 15 | 32-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 185 | 19 |
MAH3-2 | 30 | 39-86 | 12-64 | 1300-2700 | 55 | 4-6 | 215 | 25 |
MAH4-3 | 60 | 86-198 | 9-52 | 1000-2200 | 71 | 4-5 | 245 | 28 |
MAH6-4 | 120 | 162-360 | 12-56 | 800-1500 | 68 | 5-8 | 365 | 44 |
MAH8-6 | 120 | 360-830 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 63 |
MAH10-8 | 260 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 685 | 76 |
MAH12-10 | 560 | 936-1980 | 7-68 | 400-750 | 82 | 1-5 | 760 | 86 |
MAH14-12 | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 965 | 90 |

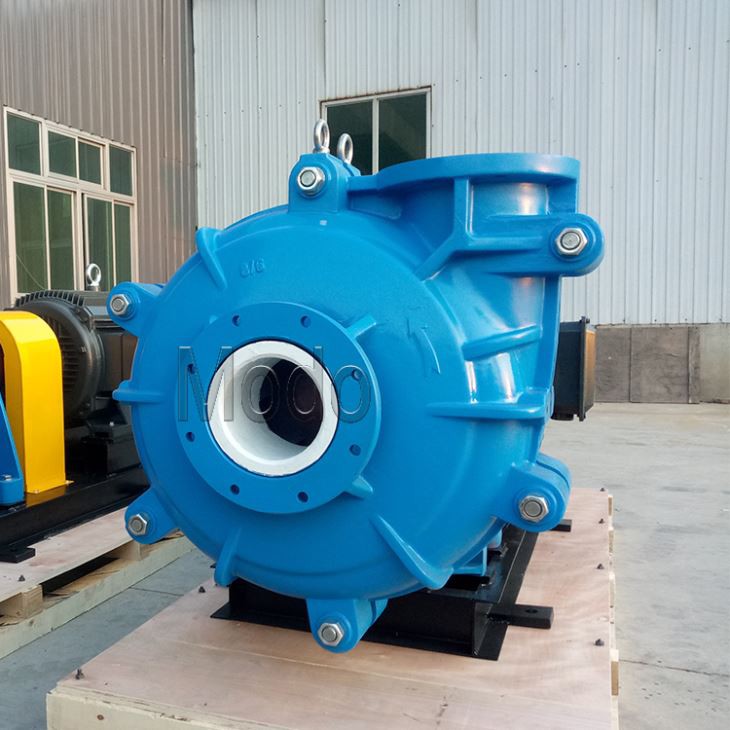

Photos of sand slurry pumps:
ceramic wet ends:

ceramic liner of sand slurry pump: metal liner of sand slurry pump:

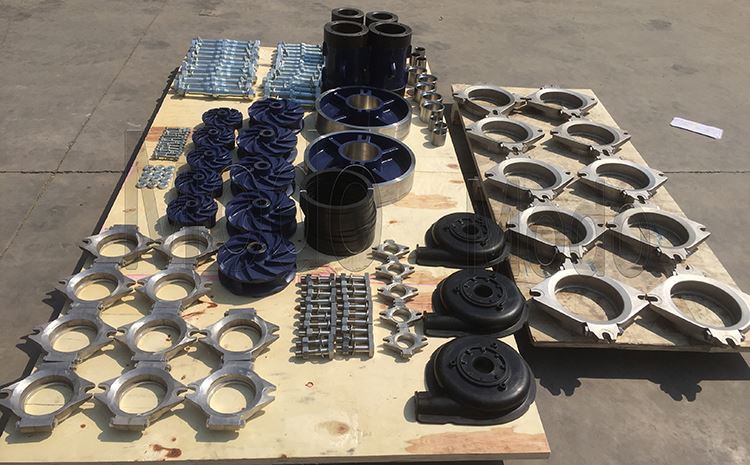

Spares of sand slurry pump:

Now email us for your solution:
