Slurry Pump Spare Parts
centrifugal slurry pump Here are some photos of centrifugal slurry pump 4/3C Performance of centrifugal slurry pump: We summarize some common failure and solutions to the slurry pump as follows: A. No water absorption of centrifugal slurry pump (no sizing) There is air in the centrifugal slurry...

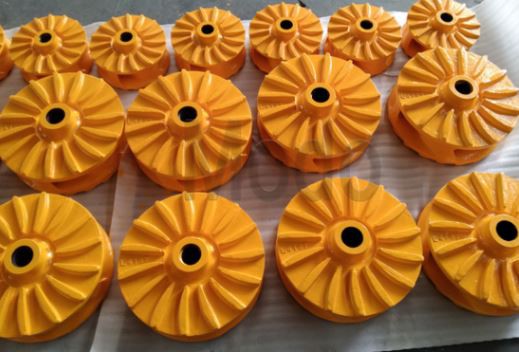

slurry pump spare parts
As we all knowbut same time,many client complain the higher price.We modo pump could make slurry pump spare parts could be interchangeable with
Following material is available:
matal material spare parts,A03,A05,A61,A49,A51,A12 ETC.
natural rubber spare parts:R08,R55,R66,R33,R26 etc.
Poluurethane spare parts:U38,U01
Shaft material:45#,40CrMo,SS304,SS316
Shaft sleeve spare parts:SS410,SS420,SS304,SS316,ceramic
Lantern ring material:SS304,SS316
These spare parts could be 100% interchangeable with spare parts.Many of client prefer to cooperate with us,not only because our competitive price for spare parts,but also because of our quality.
| Spare parts number. | Spare parts description | Spare parts Number | Spare parts description |
| 001 | Adjusting Screw | 080 | Stepped Washer |
| 003 | Base | 081 | Keeper Plate |
| 004 | Bearing Housing | 083 | Throatbush |
| 005 | Bearing Assembly | 085 | Throatbush Cotter |
| 008 | Bearing Sleeve | 089 | Bearing Seal |
| 009 | Bearing | 090 | Shaft Seal |
| 011 | Clamp Washer | 092 | Sump Pump Casing |
| 012 | Clamp Bolt | 102 | Sump Pump Column |
| 013 | Cover Plate | 108 | Piston Ring |
| 015 | Cover Plate Bolt | 109 | Shaft Sleeve O-Ring |
| 017 | Cover Plate Liner | 110 | Volute Liner |
| 018 | Cover Plate Liner – Throatbush | 111 | Packing Ring |
| 019 | Sump Pump Mounting Plate | 112 | Throatbush |
| 021 | Impeller – Two Vanes Open | 114 | Impeller – Six Vanes Open |
| 023 | Cover Plate Liner Stud | 116 | Sump Pump Strainer |
| 024 | End Cover | 117 | Shaft Spacer |
| 025 | End Cover Shim | 118 | Lantern Restrictor |
| 026 | Frame Plate Liner Stud | 122 | Seal Ring |
| 027 | End Cover Set Screw | 124 | Volute Cover Seal |
| 028 | Expeller | 125 | Volute Frame Seal |
| 029 | Expeller Ring | 126 | Gland Clamp Bolt |
| 032 | Frame Plate | 127 | Impeller – Five Vanes Open |
| 034 | Frame Plate Bolt | 130 | Flange |
| 036 | Frame Plate Liner | 131 | Gravel Pump Bowl |
| 039 | Frame Plate Liner Stud | 132 | Discharge Joint Ring |
| 040 | Frame Plate Liner Insert Bolt | 134 | Clamp Ring |
| 041 | Frame Plate Liner Insert | 135 | Clamp Ring |
| 043 | Frame Plate Liner | 137 | Impeller – Three Vanes Closed |
| 044 | Gland | 138 | Grease Cup Adaptor |
| 045 | Gland Bolt | 143 | Volute Seal Holder |
| 046 | Grease Retainer | 144 | Volute Seal Holder Stud |
| 049 | Impeller – Eight Vanes Closed | 145 | Impeller – Four Vanes Closed |
| 051 | Impeller – Two Vanes Open | 147 | Impeller – Five Vanes Closed |
| 052 | Impeller – Three Vanes Open | 154 | Sump Pump Discharge Pipe |
| 053 | Impeller – Eight Vanes Open | 179 | Shaft Sleeve Spacer |
| 056 | Impeller – Four Vanes Open | 184 | Sump Pump Flinger |
| 058 | Impeller – Six Vanes Closed | 190 | Suction Cover |
| 060 | Intake Joint Ring | 191 | Impeller – Eight Vanes Open |
| 061 | Labyrinth Locknut | 204 | Discharge Joint |
| 062 | Labyrinth | 206 | Sump Pump Impeller |
| 063 | Lantern Ring | 217 | Impeller O-Ring |
| 064 | Impeller Sealing O-Ring | 221 | Flange |
| 066 | Motor Support Bolt | 239 | Release Collar |
| 067 | Neck Ring | 241 | Lip Seal Gland |
| 070 | Shaft Key | 290 | Sump Pump Spacer |
| 073 | Shaft | 292 | Door Clamp Plate |
| 075 | Shaft Sleeve | 322 | Sump Pump Suction Pipe |
| 076 | Shaft Sleeve – Long Type | 360 | Mechanical Seal Adaptor |
| 078 | Stuffing Box | 424 | Mechanical Seal Shaft sleeve |
| 079 | Expeller Ring Stud |
Hope these information is useful for you. Please email us for your pump solution.
