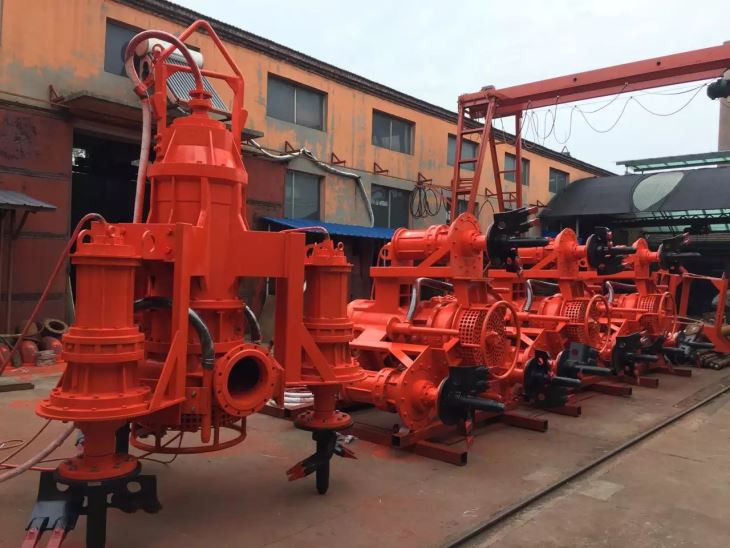

2000m³/h Submersible Sand Dredging Pump
The MSS submersible slurry pump is high efficiency and energy saving, with good NPSH performance. The heavy duty submersible slurry pump's wet ends parts are made of hard metal (Chrome alloy).
sand suction dredge price 2000m3 sand per cubic peter
Welcome to Modo Pump Co., Ltd

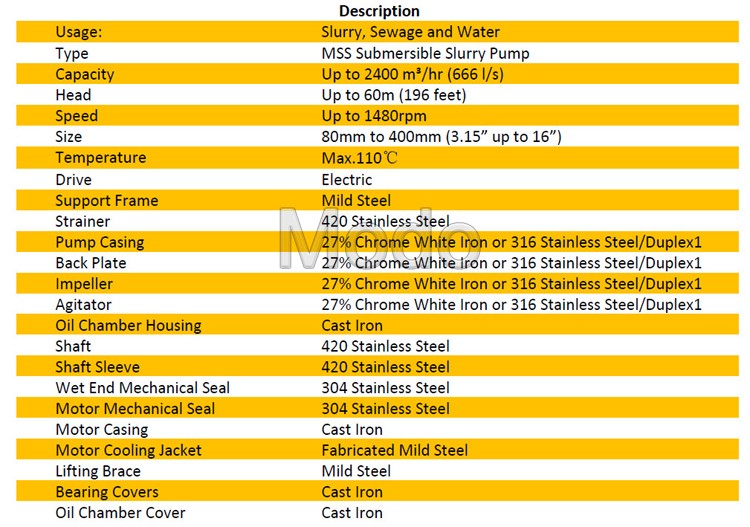

Product Description
SS series sand suction dredge price 200m3 sand per cubic peter are a heavy duty, electro-submersible slurry pumps designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and industry.
Submersible Slurry Pumps are available in 72 different models in sizes:
Discharge: 80mm to 400mm (3.15-16 inches)
Flow raters: 23 to 2400 cubic meters per hour (100-10560USGPM)
Heads: up to 64 meters (210ft).
Solids Diameter: up to 60mm (2.4 inches)
SS series Dredgeing hydraulic submersible pump :
Model meaning of SS series submersible pump head 150m :
SS45-15-5.5
SS ---- Submersible slurry pump
45 ---- The capacity is 45 cubic meter per hour
15 ---- The head is 15m
5.5 ---- The rated motor power is 5.5kw
| Model | Outlet Dia. (mm) | Capacity (m³/h) | Head (m) | Power (Kw) | Speed (r/min) | Max.Dia.of Solid (mm) | Pump Weight (kg) |
SS45-15-5.5 | 80 | 45 | 15 | 5.5 | 1460 | 13 | 100 |
| SS15-20-5.5 | 80 | 15 | 20 | 5.5 | 1460 | 13 | 100 |
| SS30-30-7.5 | 80 | 30 | 30 | 7.5 | 1460 | 13 | 114 |
| SS50-26-11 | 80 | 50 | 26 | 11 | 1460 | 13 | 165 |
| SS75-25-15 | 100 | 75 | 25 | 15 | 1460 | 13 | 220 |
| SS150-18-18.5 | 150 | 150 | 18 | 18.5 | 980 | 32 | 550 |
| SS200-12-22 | 150 | 200 | 15 | 22 | 980 | 45 | 580 |
| SS60-46-30 | 150 | 60 | 46 | 30 | 980 | 21 | 700 |
| SS150-30-30 | 150 | 150 | 30 | 30 | 980 | 21 | 550 |
| SS300-20-37 | 200 | 300 | 20 | 37 | 980 | 28 | 775 |
| SS200-30-45 | 150 | 200 | 30 | 45 | 980 | 36 | 1000 |
| SS500-15-45 | 250 | 500 | 15 | 45 | 980 | 46 | 1100 |
| SS250-35-55 | 150 | 250 | 35 | 55 | 980 | 36 | 1140 |
| SS600-15-55 | 250 | 600 | 15 | 55 | 980 | 46 | 1140 |
| SS350-35-75 | 200 | 350 | 35 | 75 | 980 | 28 | 1550 |
| SS500-20-75 | 200 | 500 | 20 | 75 | 980 | 25 | 1550 |
| SS200-60-90 | 150 | 200 | 60 | 90 | 980 | 14 | 1550 |
| SS400-40-90 | 200 | 400 | 40 | 90 | 980 | 28 | 1550 |
| SS600-30-110 | 200 | 600 | 30 | 110 | 980 | 28 | 1970 |
| SS1000-18-110 | 300 | 1000 | 18 | 110 | 980 | 50 | 1970 |
| SS500-45-132 | 200 | 500 | 45 | 132 | 980 | 28 | 2000 |
| SS1000-22-132 | 300 | 1000 | 22 | 132 | 980 | 50 | 2000 |
| SS650-52-160 | 200 | 650 | 52 | 160 | 980 | 28 | 2650 |
| SS780-50-185 | 300 | 780 | 50 | 185 | 980 | 38 | 3330 |
| SS800-55-220 | 300 | 800 | 55 | 220 | 980 | 38 | 3400 |
| SS1250-35-220 | 350 | 1250 | 35 | 220 | 980 | 45 | 3400 |
| SS1750-30-250 | 350 | 1750 | 30 | 250 | 980 | 55 | 3500 |
| SS2000-35-315 | 400 | 2000 | 35 | 315 | 980 | 60 | 3700 |

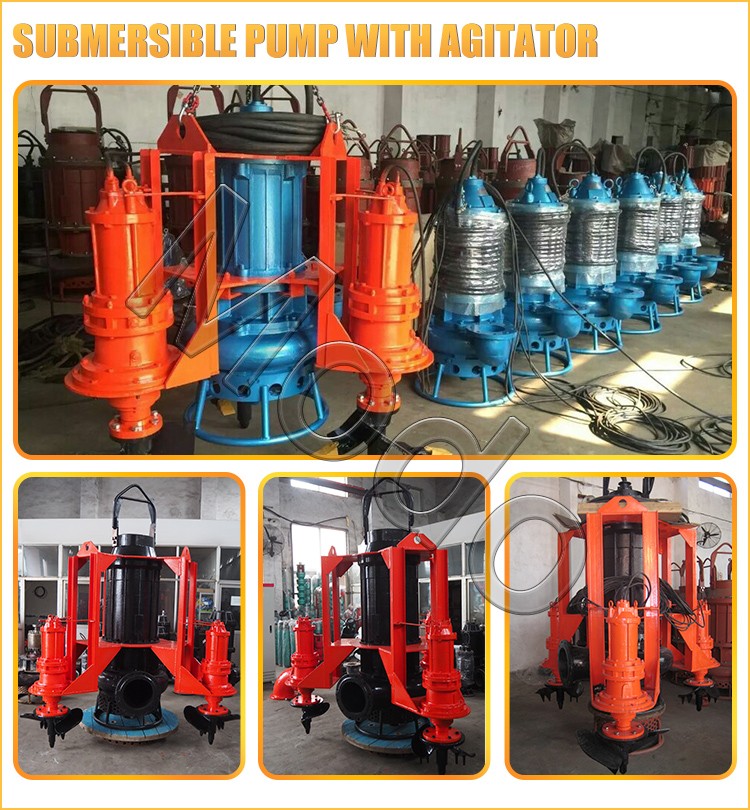

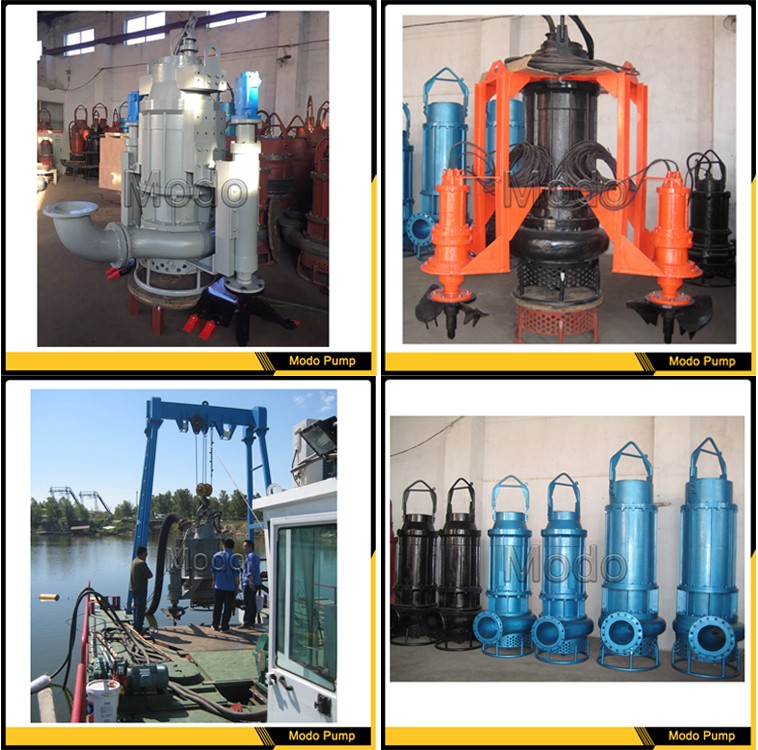

Pump Photos
submersible slurry pump floating boat
Packaging & Shipping
Company Information
Other related slurry pump:

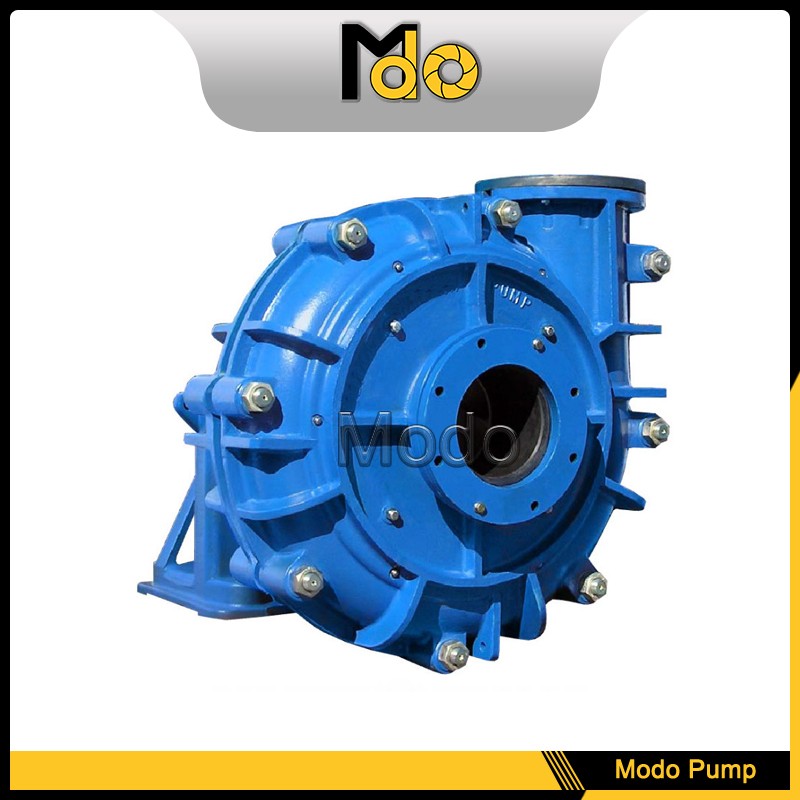

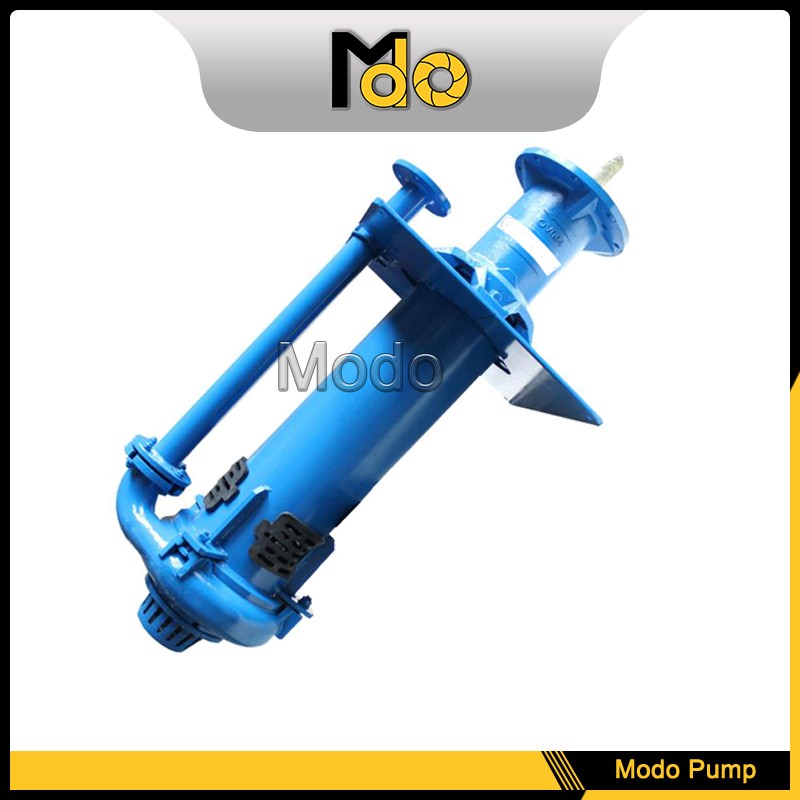

MAH horizontal slurry pump MSP vertical slurry pump
For more specification about our slurry pump, please contact me freely.
My Call: 0086 158 3083 2118
