Heavy Duty Submersible Slurry Pump
The MSS submersible slurry pump is made of high chrome to resist the strong solids and acid slurries. The electric motor of the submersible slurry pump could be 50hz or 60hz as customer requested.
Heavy Duty 60hz Submersible Slurry Pump
The MSS submersible slurry pump is made of high chrome to resist the strong solids and acid slurries.
The electric motor of the submersible slurry pump could be 50hz or 60hz as customer requested.
Reference Photo
Performance Data
·Usage: | Slurry, Water & Sewage |
·Type: | MSS Submersible Slurry Pump |
·Capacity | Up to 2400 m3/hr (666L/S) |
·Head | Up to 60 m ( 196 feet ) |
·Speed: | Up to 1480 rpm |
·Discharge: | 80-400mm (3.15’’ up to 16’’) |
·Temperature | Max.: 80℃ |
·Drive | Hydraulic or Electric |
·Shaft | 420 Stainless Steel |
·Shaft Sleeve | 420 Stainless Steel |
·Bearing Covers | Cast Iron |
·Back Plate | 27% Chrome White Iron or 316 Stainless Steel / Duplex1 |
·Agitator | 27% Chrome White Iron or 316 Stainless Steel / Duplex1 |
·Motor Mechanical Seal | 304 Stainless Steel |
·Pump Casing | 27% Chrome White Iron or 316 Stainless Steel / Duplex1 |
·Impeller | 27% Chrome White Iron or 316 Stainless Steel / Dup |

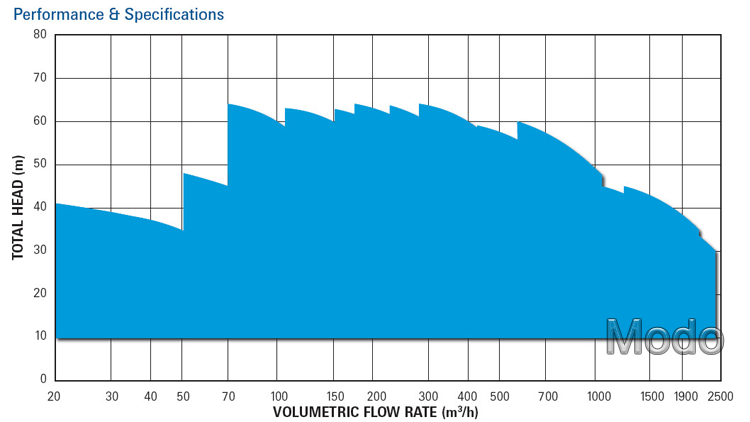

PERFORMANCE CURVE
