High Flow Submersible Slurry Pump

Name: High Flow Submersible Slurry Pump
Brand: MODO
SKU: 37292895

MSS series High flow submersible slurry pump are a heavy duty, electro-submersible slurry pumps designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and industry.

Send Inquiry

Product Details

High flow submersible slurry pump

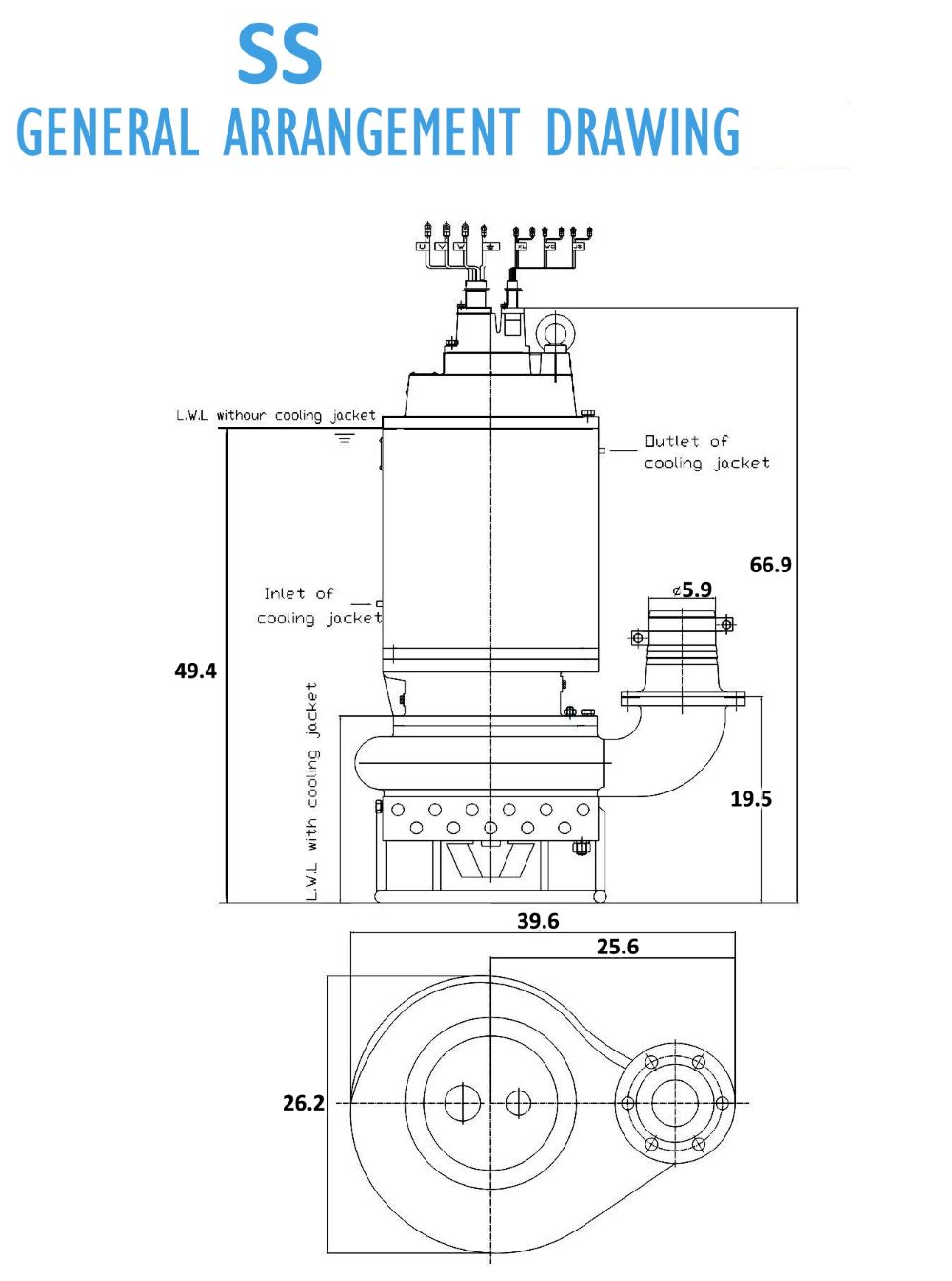

SS200-30-45 (3)

Model	Outlet Dia. (mm)	Capacity (m³/h)	Head (m)	Power (Kw)	Speed (r/min)	Max.Dia.of Solid (mm)	Pump Weight (kg)
SS45-15-5.5	80	45	15	5.5	1460	13	100
SS15-20-5.5	80	15	20	5.5	1460	13	100
SS30-30-7.5	80	30	30	7.5	1460	13	114
SS50-26-11	80	50	26	11	1460	13	165
SS75-25-15	100	75	25	15	1460	13	220
SS150-18-18.5	150	150	18	18.5	980	32	550
SS200-12-22	150	200	15	22	980	45	580
SS60-46-30	150	60	46	30	980	21	700
SS150-30-30	150	150	30	30	980	21	550
SS300-20-37	200	300	20	37	980	28	775
SS200-30-45	150	200	30	45	980	36	1000
SS500-15-45	250	500	15	45	980	46	1100
SS250-35-55	150	250	35	55	980	36	1140
SS600-15-55	250	600	15	55	980	46	1140
SS350-35-75	200	350	35	75	980	28	1550
SS500-20-75	200	500	20	75	980	25	1550
SS200-60-90	150	200	60	90	980	14	1550
SS400-40-90	200	400	40	90	980	28	1550
SS600-30-110	200	600	30	110	980	28	1970
SS1000-18-110	300	1000	18	110	980	50	1970
SS500-45-132	200	500	45	132	980	28	2000
SS1000-22-132	300	1000	22	132	980	50	2000
SS650-52-160	200	650	52	160	980	28	2650
SS780-50-185	300	780	50	185	980	38	3330
SS800-55-220	300	800	55	220	980	38	3400
SS1250-35-220	350	1250	35	220	980	45	3400
SS1750-30-250	350	1750	30	250	980	55	3500
SS2000-35-315	400	2000	35	315	980	60	3700
