Submersible Dredging Pump Electric Motor Driven

submersible dredging pump electric motor driven

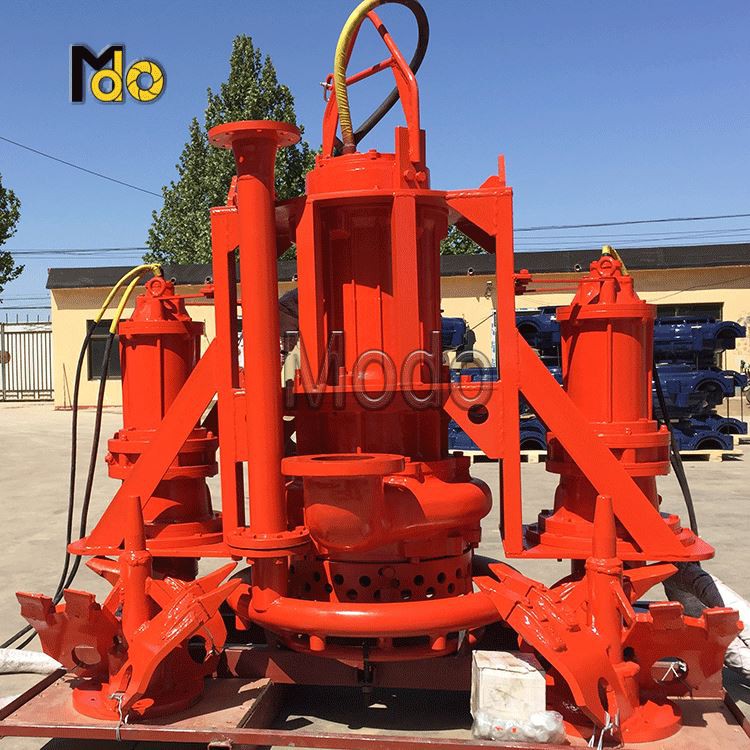

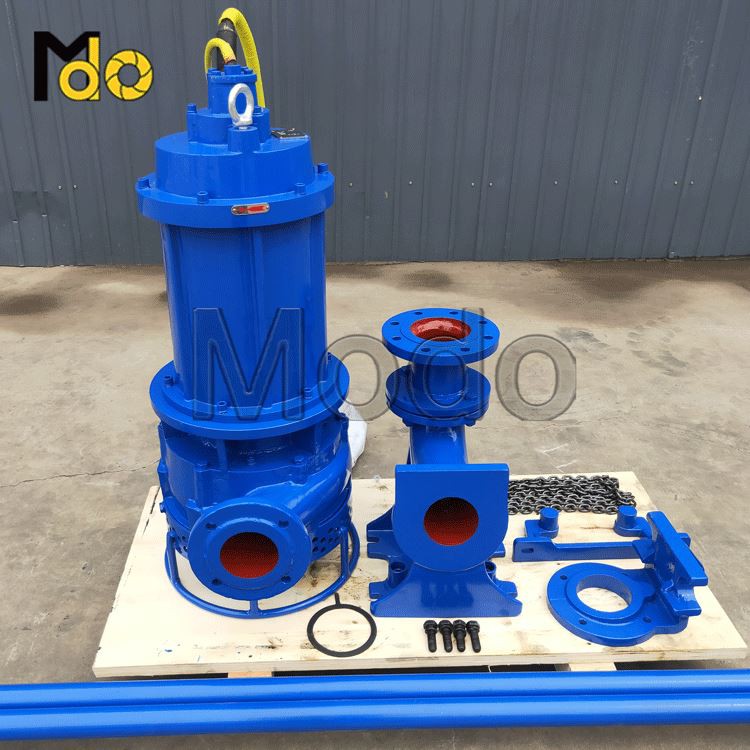

Submersible dreading pump series are a heavy duty, electro-submersible slurry pumps designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and industry. It is a versatile heavy duty solution.

1. Versatile heavy duty solution

Submersible dreading pump feature a rugged construction using the highest quality materials to ensure reliable performance and excellent service life. The high quality electric motors incorporate multiple protection features to detect the ingress of water or excessive temperatures to shut off the pump and prevent damage.

Pumps are available in 72 different models in sizes ranging from 80mm to 400mm (3.15 - 16 inches) discharge and are capable of flow rates from 23 to 2400 cubic meters per hour (100-10560USGPM) and heads up to 64 meters (210ft). Pumps can pass solids up to 60mm (2.4 inches) in diameter enabling them to transfer dense slurries with large abrasive particles.

2. Large cut water clearance

The pump casing features a large cut water clearance which allows the easy passage of large solids and reduces wear and erosion to improve service life and prevent loss of efficiency.

3. Intergral agitator

The 27% chrome white iron agitator assists in the pumping of slurries by breaking up large particles and agitating high concentrations of solids.

4. heavy duty construciton

The pump casing, impeller, backplate and agitator are manufactured from high quality 27% chrome white iron. This extremely tough construction material can withstand continuous use in heavy duty applications and allows the SS pumps to transfer abrasive and dense slurries with minimal wear. The pumps feature a replaceable backplate allowing for simple servicing and easy replacement of worn components.

5. F class motor insulation

F class motor insulation is used to ensure reliable operation in heavy duty applications in temperatures up to +40°C. In applications where higher temperatures are expected, H class motor insulation can be used to allow operating temperatures up to +70°C.

6. Support frame and strainer

A heavy duty mild steel frame with round base and strainer provide excellent stability and durability whilst preventing blockages.

7. Spare parts

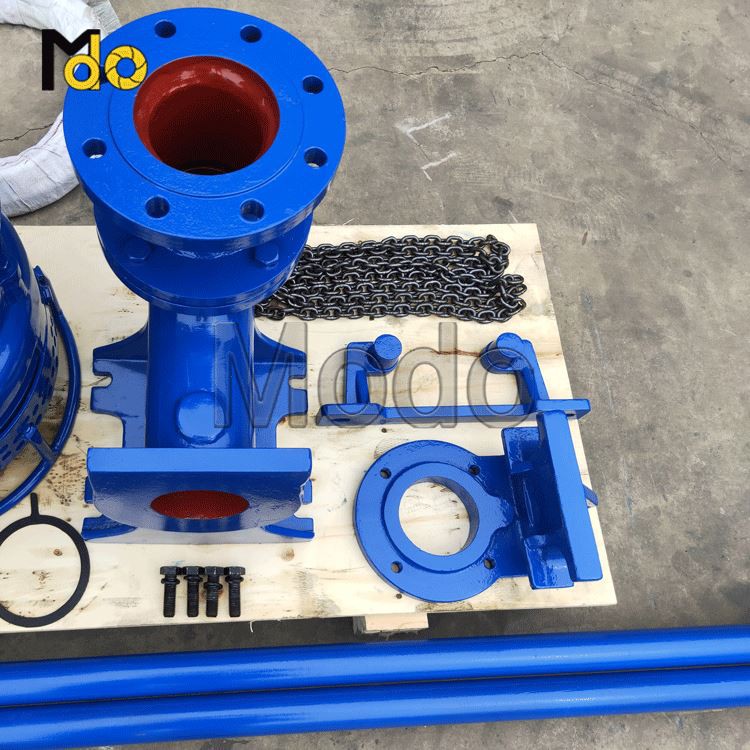

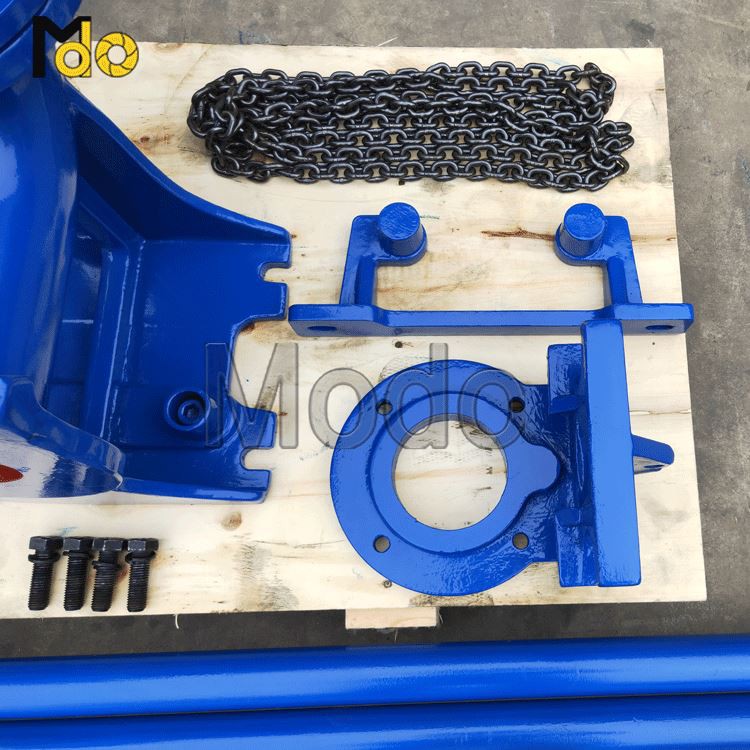

Spare parts of pump: pump casing(high chrome AO5, stainless steel or duplex), back plate(high chrome AO5, stainless steel or duplex), bottom agitator(high chrome AO5, stainless steel or duplex), impeller(high chrome AO5, stainless steel or duplex)，mechanical seal etc...

Protection: overload/motor leakage.

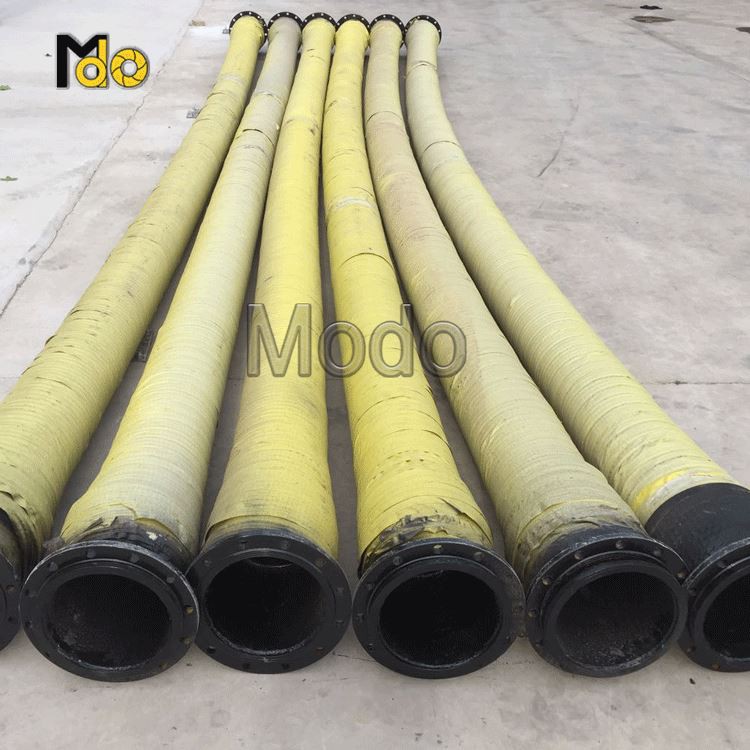

Others accessories: side cutters, floaters, discharge pipe (HDPE, rubber and others material) etc...

8. Packaing

Under normal condition, we use fumigation-free wooden box packaging that meets international standards. At the same time, we can also make different customized packaging according to your requirements, including pallet bottom reinforcement free packaging, plastic packaging, carton packaging, etc...

9. Delivery

We support many different methods of transportation, mainly including: sea transportation, air transportation, land transportation, express, etc...

After you send us an inquiry, we will recommend the most cost-effective transportation method to you according to your requirements and the actual situation of the goods!
