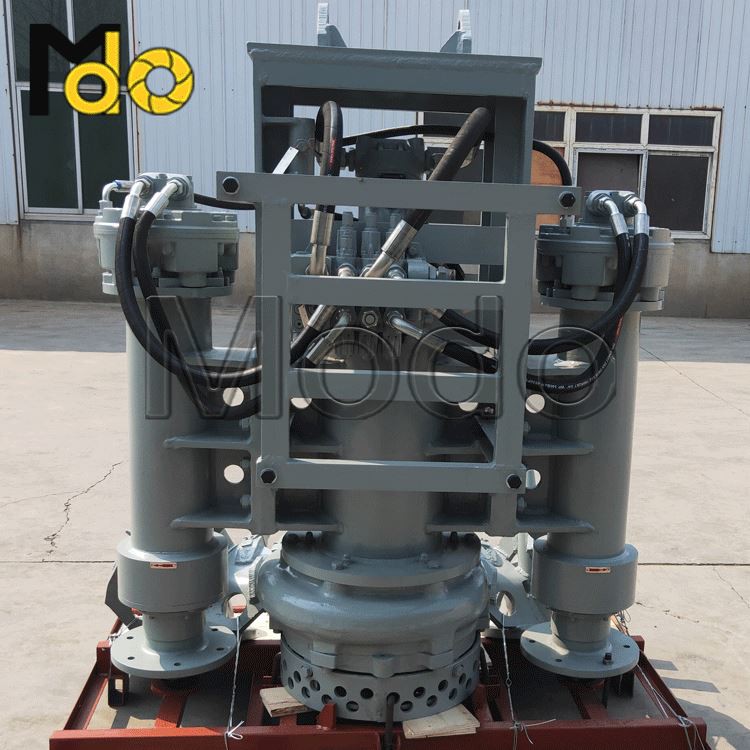

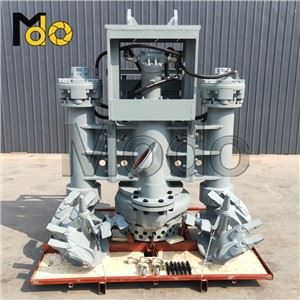

Wear-resistant Hydraulic Slurry Pump Submersible Desilting Pump

wear-resistant hydraulic slurry pump submersible desilting pump

The hydraulic wear-resistant slurry pump is a heavy-duty submersible desilting pump, which is suitable for small, medium and large series excavators such as 120, 150, 220, 240, 300, 330 and 360. When there is more water, silt and sediment are thin, and the bucket is inconvenient to grasp the excavation, the bucket is unloaded and connected with a hydraulic mortar pump, which can extract high efficiency and high concentration. It is matched with the hydraulic slurry pump, It can realize long-distance transportation. The hydraulic slurry pump can greatly improve the working efficiency. It can also be equipped with a hydraulic station. It is suitable for working conditions such as harsh environment, too much water, inability of excavator to effectively excavate, long-distance transportation of mud and mortar, insufficient power supply and frequent transfer. It has a wide range of applications.

Main characteristics of hydraulic slurry pump

1. The bottom of the pump is equipped with a mixing device, and can be equipped with separate agitators on both sides and multilateral, which can prevent large fixed substances from blocking the pump and fully mix solid and liquid, so as to facilitate treatment.

2. The pump can handle solid substances with a maximum particle size of 150mm, and the solid-liquid extraction concentration can reach more than 70%. Note: due to different working conditions, the output of the pump may also change with the influence of the treated medium, on-site operation, transportation distance and other factors.

3. The device is mainly installed on the excavator. The power is provided by the hydraulic station of the excavator, which can realize free transfer, and the power source is diesel engine, which can solve the problem of inconvenient power during construction in remote areas.

4. Flow passage parts: the pump casing, impeller, guard plate and mixing impeller are made of high chromium alloy. Other materials can be customized.

5. Unique sealing device is adopted to avoid frequent replacement of mechanical seal and improve work efficiency.

Main uses of hydraulic slurry pump

1. Desilting, dredging, sand removal, sand pumping, sand absorption, etc. of port rivers and lakes

2. Extraction of mixed sand, gravel, etc., sea reclamation and port building works

3. Slag discharge, slurry discharge and all solutions containing solid substances in mines such as iron ore, tailings pond and concentrator

4.It is used to absorb high concentration tailings, waste slag, high temperature iron slag and iron filings in metallurgy, iron and steel and other industries

5. Sand pumping, gold panning, etc.

6. It can be applied to shallow water areas and swamps, and can be used for river dredging, Lake development, warm land park construction, coastal beach development, Salt Lake development, tailings mine treatment and other water conservancy projects and swamp development projects.
