rubber lined verticle pump
The MSP pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type MSP pump are made of abrasion-resistant metal.

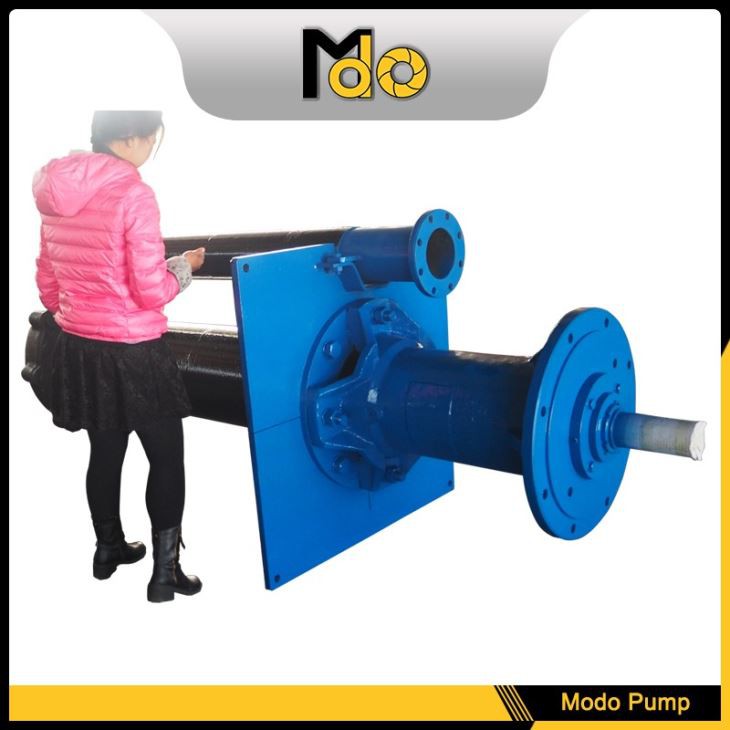

150SV-MSPR rubber lined verticle spindle pump
MSP heavy duty sump pumps are vertical, shaft driven centrifugal slurry pumps designed for transferring abrasive and high density slurries from sumps, pits and other submersible sources.
Models are available in sizes ranging from 40mm to 250mm discharge and are capable of flow rates from 5 to 350 liters per second(79-5540USGPM) at heads up to 40meters(130ft), The heavy duty design of MSP pumps allows the passage of large particles with a diameter of up to 50mm.
Pump Specifications.
| ·Usage: | Slurry, Sewage & Water |
| ·Type: | MSP Vertical Slurry Pump |
| ·Capacity | Up to 1267 m3/hr( 352 L/s ) |
| ·Head | Up to 43 m ( 141 feet ) |
| ·Speed: | Up to 1500 rpm |
| ·Outlet Dia | 40mm to 250mm (1.5"up to 10") |
| ·Temperature | Max.: 110 ºC |
| ·Drive | Electric |
| ·Shaft | 4140 Mild Steel |
| ·Bearing Housing | Cast Iron |
| ·Column | Mild Steel |
| ·Upper Strainer | Rubber or Cast Iron |
| ·Lower Strainer | Cast Iron |
| ·Back Liner | 27% Chrome White Iron |
| ·Pump Casing | 27% Chrome White Iron or Rubber Lined White Iron |
| ·Impeller | 27% Chrome White Iron or Rubber |
| ·Discharge Pipe | Mild Steel or Rubber Lined Mild Steel |
| ·Adapter Plate | Mild Steel |
•SELECTION CHART--Metal MSP Vertical Slurry Pump
| Type | Outlet Dia. (mm) | Bearing Frame | Max Power (KW) | Max Particle Size (mm) | Pumping Depth (mm) | No. of Vanes | Impeller Dia. (mm) |
| MSP-40P | 40 | P | 15 | 12 | 900*1200 | 5 | 188 |
| MSP-65Q | 65 | Q | 30 | 15 | 900*1200*1500 | 5 | 280 |
| MSP-100R | 100 | R | 75 | 32 | 1200*1500*2100 | 5 | 370 |
| MSP-150S | 150 | S | 110 | 45 | 1500*1800*2100 | 5 | 450 |
Rubber MSP Vertical Slurry Pump
| Type | Outlet Dia. (mm) | Bearing Frame | Max Power (KW) | Max Particle Size (mm) | Pumping Depth (mm) | No. of Vanes | Impeller Dia. (mm) |
| MSP-40PR | 40 | P | 15 | 12 | 900*1200 | 5 | 188-195 |
| MSP-65QR | 65 | Q | 30 | 15 | 900*1200*1500 | 5 | 280-290 |
| MSP-100RR | 100 | R | 75 | 40 | 1200*1500*2100 | 5 | 370 |
| MSP-150SR | 150 | S | 110 | 45 | 1500*1800*2100 | 5 | 450 |
Selection chart
Pump struture
Contact us for more information
