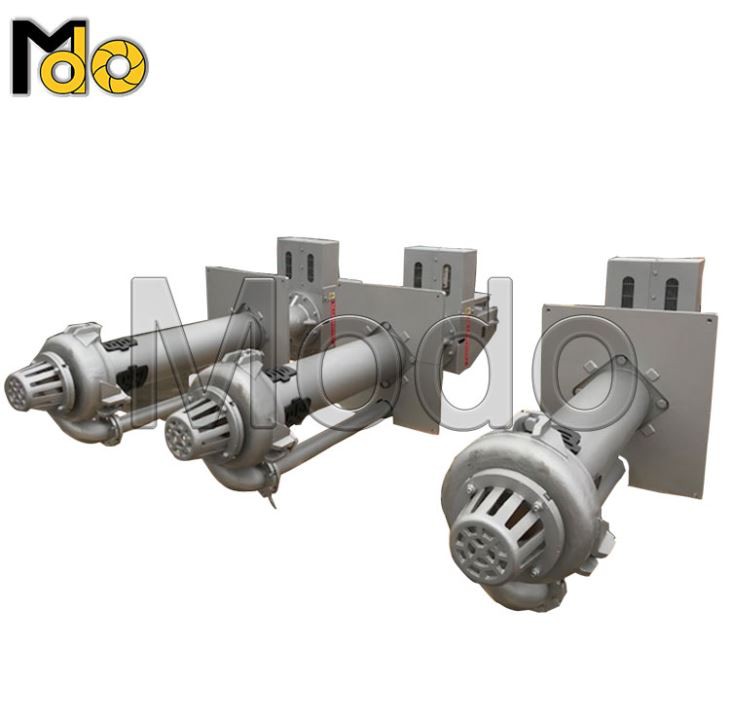

High Performance Slurry Pump

Name: High Performance Slurry Pump
Brand: Modo Pump Co.,Ltd
SKU: 60511302

The centrifugal mineral concentrate slurry pump is available in sizes ranging from 40mm to 250mm discharge and are capable of flow rates from 5 to 350 liters per second (79-5540USGPM) at heads of up to 40 meters (130ft).

Send Inquiry

Product Details

Centrifugal High Performance Mineral Concentrate Slurry Pump

MSP vertical pump

Product Description

yellow vertical pump.jpg

description of MSP Vertical Slurry Pump1

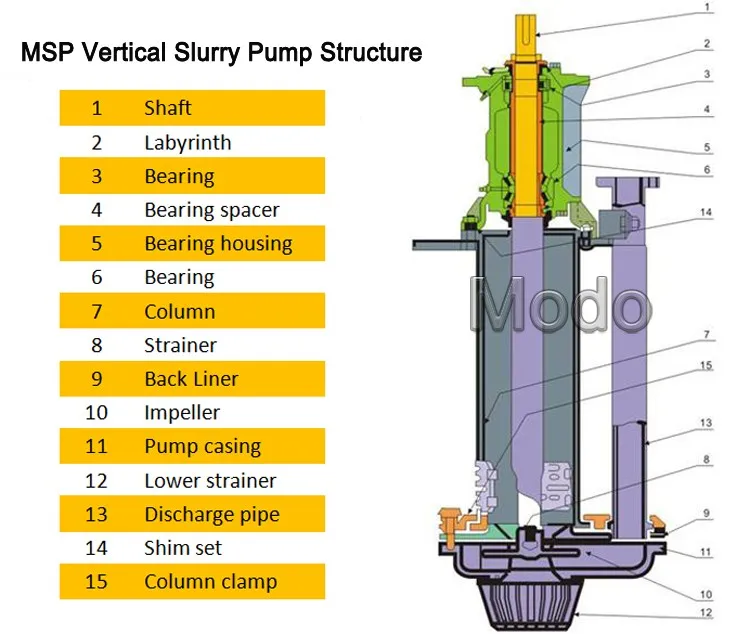

Structure

Features of MSP Vertical Slurry Pump

Cantilevered shaft design
Double suction semi-open impeller
Agitator option keeps solids in suspension
Different length of the pump drive shaft or inhaled could be selected
Material of Impeller could be wear-resistant metal or rubber
SPR models feature full rubber covering for corrosion resistance
V-belt drive, direct drive, and flexible coupling. Bearing to lubricate oils.
No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available

Technical Data

Metal MSP Vertical Slurry Pump

Type	Outlet Dia. (mm)	Bearing Frame	Max Power (KW)	Max Particle Size (mm)	Pumping Depth (mm)	No. of Vanes	Impeller Dia. (mm)
MSP-40P	40	P	15	12	*9001200**	5	188
MSP-65Q	65	Q	30	15	*90012001500*	5	280
MSP-100R	100	R	75	32	*120015002100*	5	370
MSP-150S	150	S	110	45	*150018002100*	5	450

Rubber MSP Vertical Slurry Pump

Type	Outlet Dia. (mm)	Bearing Frame	Max Power (KW)	Max Particle Size (mm)	Pumping Depth (mm)	No. of Vanes	Impeller Dia. (mm)
MSP-40PR	40	P	15	12	*9001200**	5	188-195
MSP-65QR	65	Q	30	15	*90012001500*	5	280-290
MSP-100RR	100	R	75	40	*120015002100*	5	370
MSP-150SR	150	S	110	45	*150018002100*	5	450
