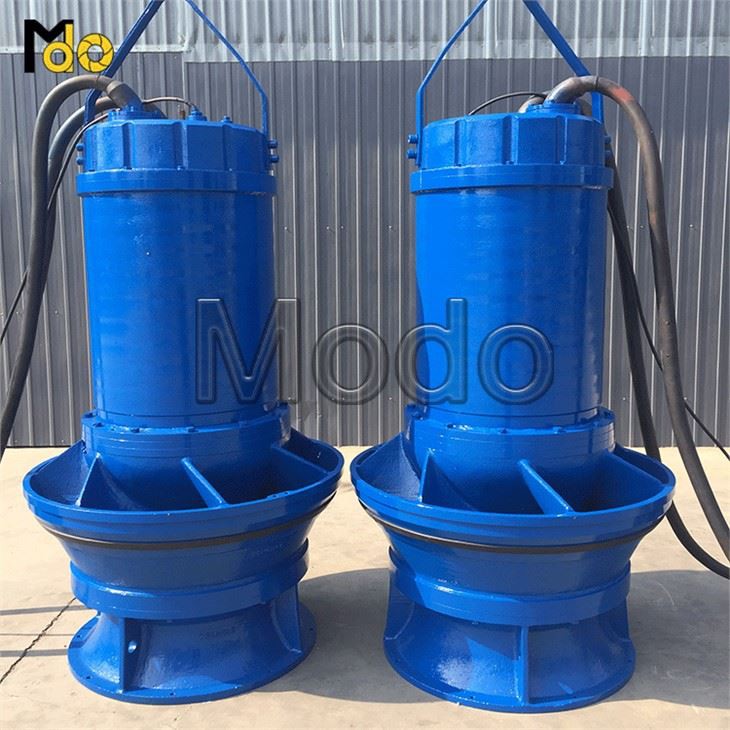

Centrifugal Pump Single Stage Axial Flow Pump

Modo Pump has been focused on centrifugal pump single stage axial flow pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our centrifugal pump single stage axial flow pump and check the price list with us.



centrifugal pump single stage axial flow pump

Single stage axial type pump is very large flow range, ranging from 1.8 to 3.6 million cubic meters per hour; the head is generally below 20 meters. This large flow pumps are generally vertical, with the impeller submerged under water, and there are also horizontal or oblique axial flow pumps. When the impeller of the small axial flow pump is installed above the water surface, it is necessary to use a vacuum pump to exhaust and divert water to start.

Parameter range:

Flow rate	700～89842 m3/h
Head	0.92-15.5 m
Power	15-1400kw
Voltage	380v,440v,660V, 6kV,10kv

Advantages

(1) The liquid flows along the axis of the pump shaft. This type of pump has a low lift and a large flow rate, and is suitable for pumping clean water or other liquids with similar physical and chemical properties to water.

(2) The pump part of the vertical axial flow pump is located on the ground, which is convenient for visually observing its vibration and heating technical performance. The pump station management personnel can find and come out the problems in the operation of the pump in time.

Precautions when using

1. During trial operation, check the connection parts to ensure that there is no looseness in each connection part.

2. Electrical appliances and instruments work normally; oil, gas, and water pipelines must not leak; pressure and hydraulic pressure are normal.

3. Frequently check whether there are floating objects near the water inlet to prevent blockage of the water inlet.

4. The temperature of the rolling bearing of the axial flow pump should not be greater than 75 degrees.

5. Pay attention to the sound and vibration of the water pump at any time, and immediately stop the machine for inspection if any abnormality is found.

6. The temperature of the oil in the gear box should be normal.
