Long Shaft Deep Well Pump
Long shaft deel well pump Application of long shaft deep well pump: Long shaft deep well pump is applied to lift normal temperature clean water without erosive for water power plant(in an overhaul and leakage),power plant(when reduce the teperature in the recycle,and for domestic service),steel...
Long shaft deel well pump
Application of long shaft deep well pump:

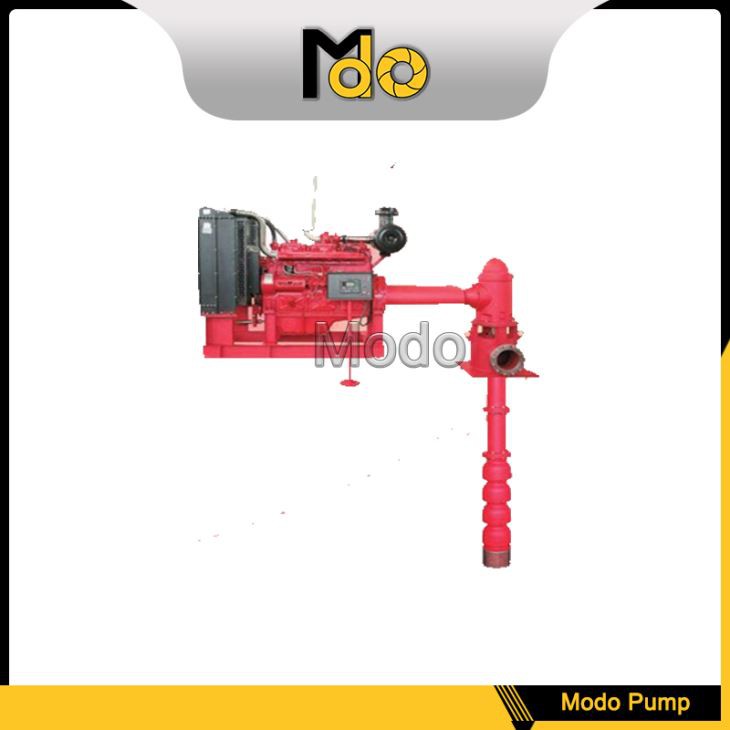

Long shaft deep well pump is applied to lift normal temperature clean water without erosive for water power plant(in an overhaul and leakage),power plant(when reduce the teperature in the recycle,and for domestic service),steel works(for scale pit),fire-fighting,urban water supply by water plant and agriculture irrigation.long shaft deep well pump can be electric motor driven and diesel engine driven.
Long shaft deep well range:
Capacity:≤5000m3/h
Head≤350m
Motor power:5.5-1600kw
Well diater:100-950mm
Voltage:380v,415v,460v,230v,6kv,10kv,etc.
Max.discharge dia.:650mm
Submerged depth:as per clients'requirement
Long shaft deep well pump model selection:
| Model | Capacity | Head | Stage | Sting quantity | Rotating speed | Motor power | Efficiency | diameter | ||
| m3/h | m | i | mm | rpm | kw | % | mm | |||
| 200MLJC60-20 | 40 | 44 | 40 | 30 | 2 | 9 | 2940 | 11 | 75 | 181 |
| 66 | 60 | 45 | 3 | 18.5 | ||||||
| 60 | 88 | 80 | 60 | 4 | 22 | |||||
| 110 | 100 | 75 | 5 | 30 | ||||||
| 76 | 132 | 120 | 90 | 6 | 37 | |||||
| 154 | 140 | 105 | 7 | 37 | ||||||
| 300LJC160-11.5 | 125 | 39 | 35 | 28 | 3 | 14 | 1460 | 22 | 80 | 295 |
| 52 | 46 | 38 | 4 | 30 | ||||||
| 65 | 58 | 48 | 5 | 37 | ||||||
| 160 | 78 | 69 | 57 | 6 | 45 | |||||
| 91 | 80 | 66 | 7 | 55 | ||||||
| 104 | 92 | 76 | 8 | 75 | ||||||
| 200 | 117 | 103 | 86 | 9 | 75 | |||||
| 130 | 115 | 95 | 10 | 75 | ||||||
| 143 | 126 | 104 | 11 | 90 | ||||||
| 156 | 138 | 114 | 12 | 90 | ||||||
Long shaft deep well pump ---Why choose us:
Our staff is well-trained and educated in this industry.

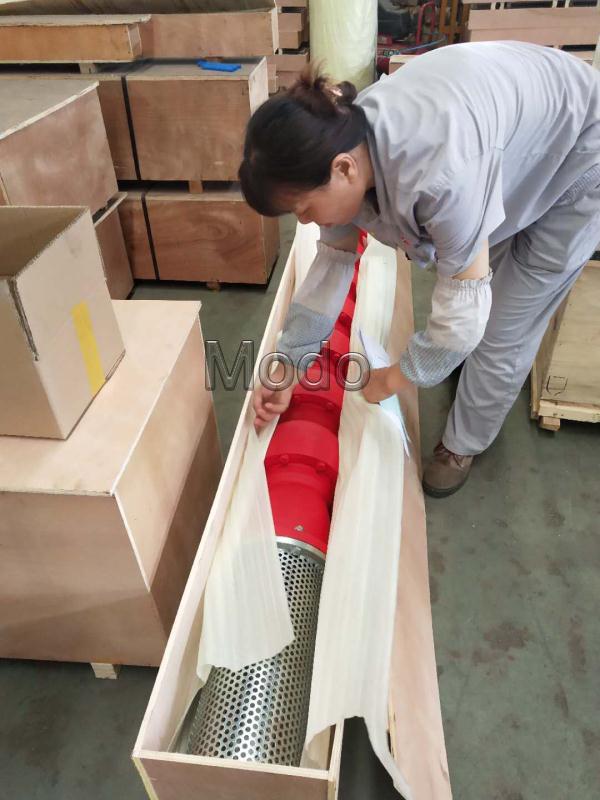

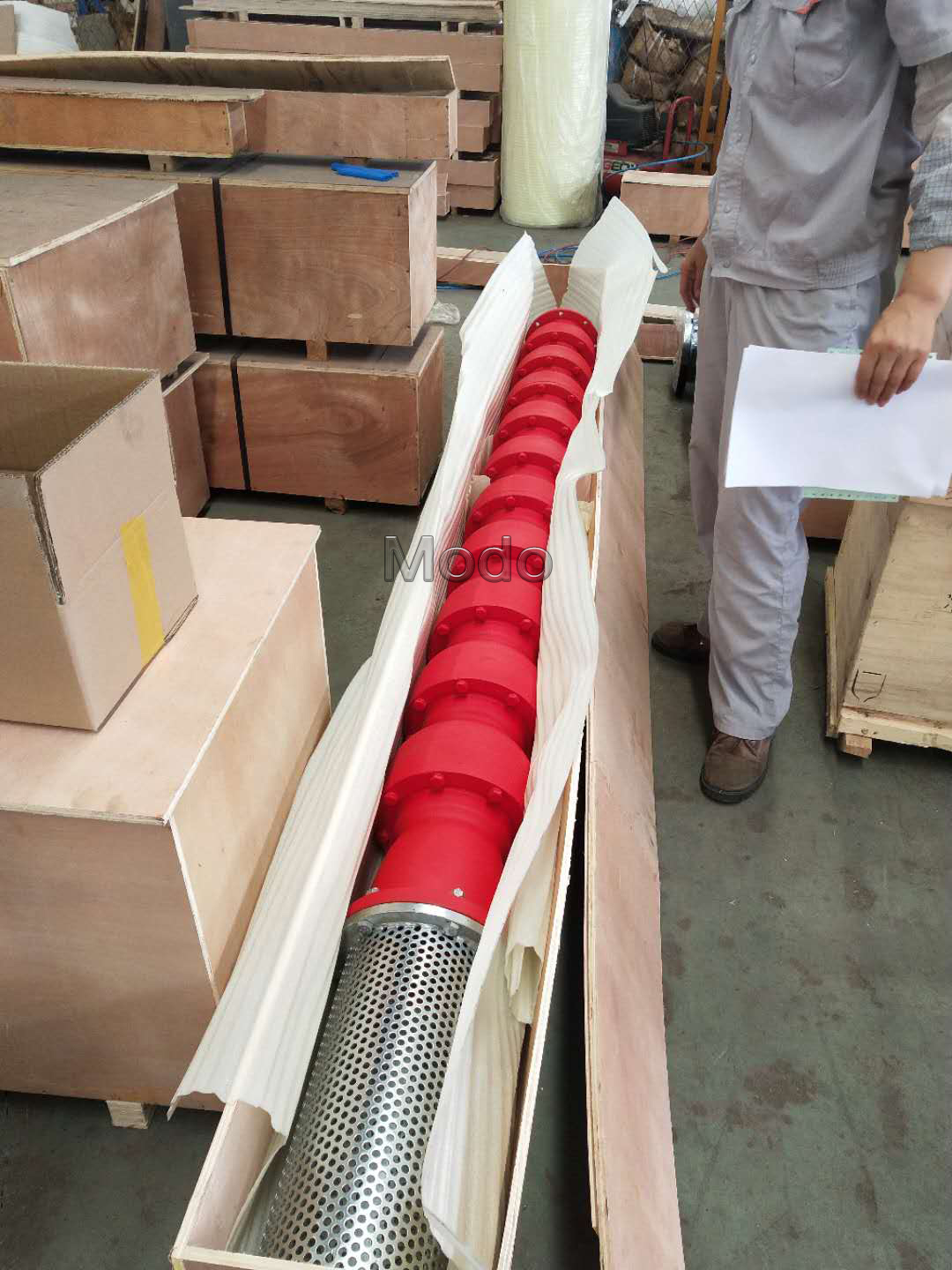

Professional painting makes excellent appearance:

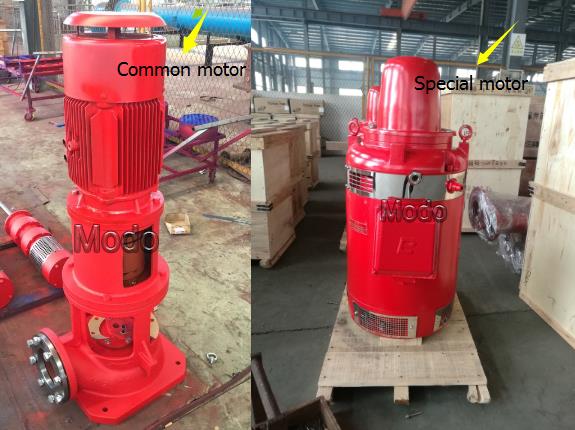

Multiple choice for electric motor:
Considerate aftersale-service:
Client A Client B
for Client A:When client receive the long shaft deep well pump,he do not know how to assemble it.We assist him on line talking,very easy for him!
for Client B:The order nearly finished ,but the end user prefer to change the data.Client ask us to do something to help him .After communicate with our production team&management,we overcome all difficulties and have done it!
Email us for your solution!
