End Suction Centrifugal Pumps

Modo Pump has been focused on end suction centrifugal pumps manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our end suction centrifugal pumps and check the price list with us.



Our company is named MODO® PUMP, we're specializing in centrifugal water pump for many years. End suction centrifugal pumps are one of our hot-selling products. Every year, different kinds of pumps are sold to different countries around the world, and it was widely acclaimed.
Features

End suction centrifugal pumps are suitable for working conditions with moderate flow and head. It has a wide range of applications.

Applications

(Only clean water can be pumped, and the medium must be free of solid particles. If the liquid contains solid particles, please inform us and we will select a more suitable pump.)
•Agriculture Irrigation
•Fire fighting
•Air conditioning water circulation
•River water
•Sea water

Type

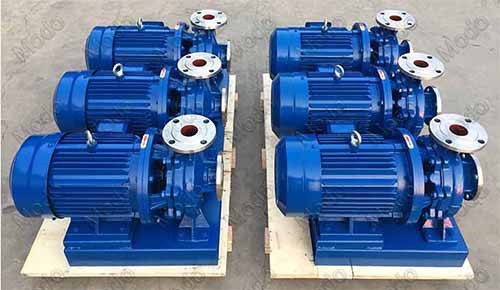

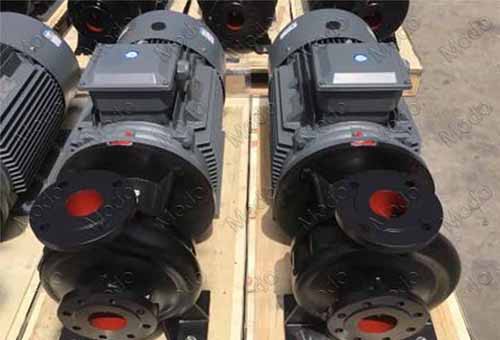

Direct Coupled	Standard Coupled	Closed Coupled
ISW	ISA/ISO	PAC

Above photos just for your reference.

Material

Standard	Casing	Impeller	Shaft	Shaft seal
ISW	Cast Iron	Cast Iron	45#Steel	Gland packing/Mechanical seal
ISA	Cast Iron	Cast Iron	SS420	Gland packing/Mechanical seal
ISO	Cast Iron	Cast Iron	SS420	Mechanical seal
Customized: SS304/SS316/SS2205/SS2507 etc.

Driven

Driven by electric motor (China OEM, ABB, WEG and so on) (Customizable voltage)
Driven by diesel engine (Changchai, Weichai, Cummins and so on)
Model meaning
ISW100-250
ISW - refers to Direct Coupled End Suction Water Pump
100 - refers to inlet&outlet diameter mm
250 - refers to impeller diameter mm
ISA100-40
ISA - refers to End Suction Water Pump
100 - refers to outlet diameter mm
40 - refers to impeller diameter cm
ISO125-100-315
ISO - refers to End Suction Water Pump
125 - refers to inlet diameter mm
100 - refers to outlet diameter mm
315 - refers to impeller diameter mm

Customers and Us

At the beginning of this year, a Mongolian customer sent an inquiry about the end suction centrifugal pumps to us. He told me that he would use it to irrigation, but he didn't know the head. In order to select the suitable pump model for him, our engineer and me hold a meeting and talked about the information he provided, such as the horizontal distance, vertical height, the range of the flow and the old pipeline size. Finally, we provided the customer with a suitable solution and won his praise and order.
I just want to say that we will do our best to help you. Trust us!
Please contact me
By Whatsapp: +86 199 30522 796
By email: carol@modopump.com

Parts Name & Code
1.Casing
2.Front-wear ring
3.Impeller
4.Back-Wear Ring
5.Casing Cover
6.Bearing Cover
7.Shaft
8.Bearing Housing
9.Rear Oil Seal
10.Support Foot
11.Drainage plug & Washer
12.Casing O-Ring
13.Impeller Nut
14.Washer
15.Mechanical Seal
16.Slinger
17.Front Oil Seal
18.Bolt
19.lmpeller Key
20.Gasket
21.Front-Bearing
22.Rear-Bearing
23.Bolt
24.Nut
25.Bolt
