Fire Fighting Water Pump Supply Equipment

Modo Pump has been focused on fire fighting water pump supply equipment manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our fire fighting water pump supply equipment and check the price list with us.



Fire fighting water pump supply equipment

Product features:

1. Fully intelligent control to automatically start and stop the pump set

2. Integrated skid mounted, compact structure, small floor area and easy installation

3. Adopt the soft pneumatic circulation mode of multiple pumps to reduce the impact and interference of direct start to the power grid.

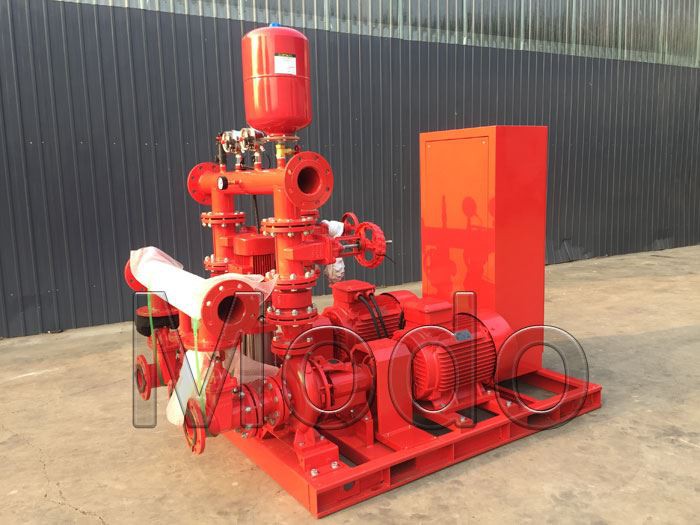

Fire fighting water pump supply equipment is a complete set of equipment that automatically constant the pressure of fire pipe network through frequency conversion control. This set of equipment is composed of frequency conversion control box, fire pump, valve, pipe fittings, steel structure frame, etc.



Advanced performance



·Direct connection, compact structure; The pump body adopts streamlined design; The arrangement of stiffeners is simple, with high structural strength and beautiful appearance;



·The hydraulic model adopts CFD optimization design. Through the three-dimensional design theory, model optimization design and pump dynamic characteristic analysis method, the pump efficiency is improved to the greatest extent and the efficient operation range of the pump is widened. The part mould of the flow passage part adopts numerical control molding, and the casting adopts resin sand molding to ensure the dimensional accuracy and surface finish of the part;



·FEM optimization design is adopted for main structural parts, and the structural design rationality and load resistance requirements of parts are reviewed.



·High efficiency three-phase asynchronous motor is selected, with protection grade of IP55 and insulation grade of F.



Application:

The equipment is suitable for fire water supply and emergency water supply in warehouses, wharfs, airports, petroleum, chemical industry, power plants, liquefied gas, textiles, ships, oil tankers and other places.

Project Reference

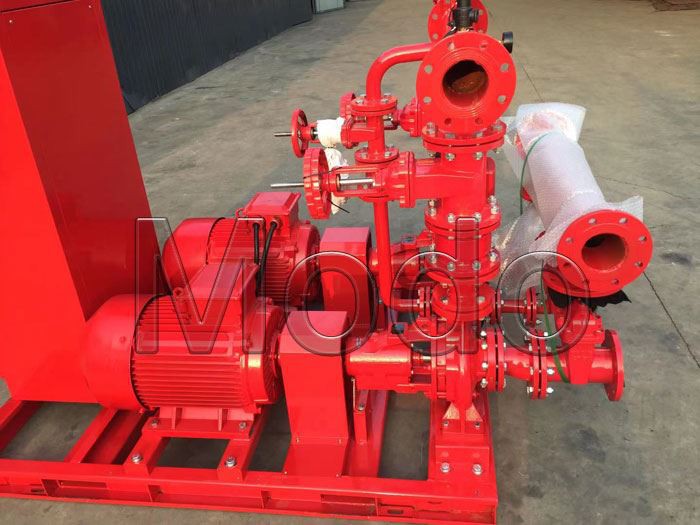

In June, we receive an inquiry from UAE customer for the fire fighting pumps. After discussing the requirements and the installation condition, we selected the dual - electric pumps fire fighting site for him, which are made according to the standard NPFA 20. Here are the main specs of the pump set:

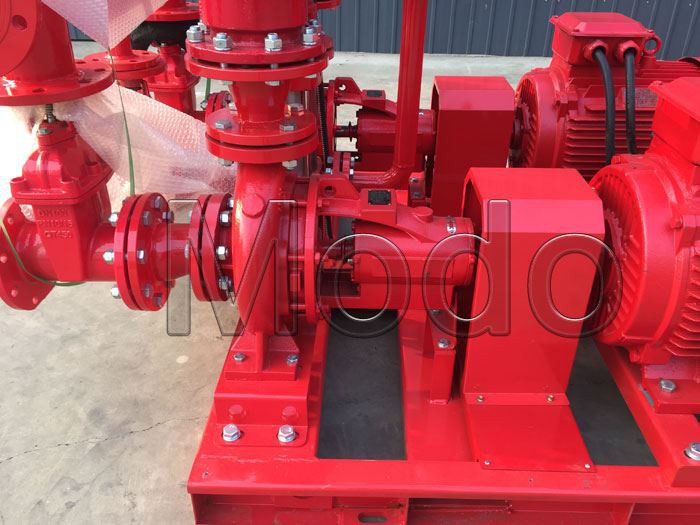

Main pump--Dual electric pumps:

Flow: 22L/S

Head: 4.5bar

Motor: 30kw/400V/50HZ/3Phase

Material: Cast iron

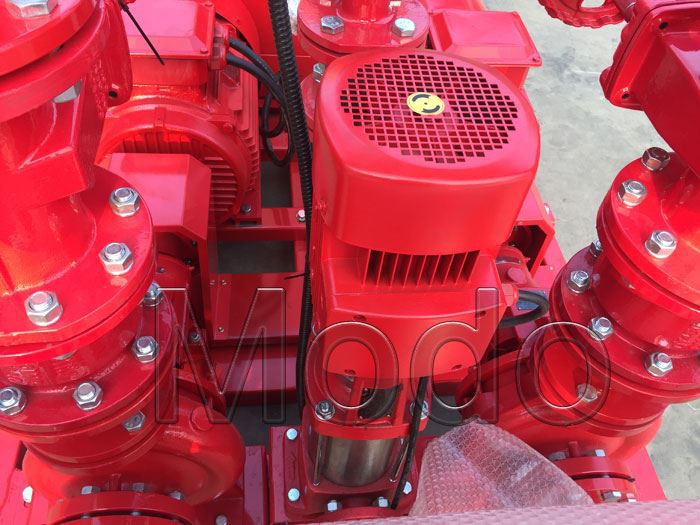

Jockey pump

Flow:1.5L/S

Head: 5.5bar

Motor: 1.5kw/400V/50HZ/3Phase

Material: Stainless steel 304



Control panel:

This control panel will controls 3 pumps totally.  It is designed to have fire fighting function . one

duty one standby. The Jockey pump will start and stop based on the pipe pressure.



Standard Accessories

 Pressure Tank 24L

 Gate Valve(Flange type) DN80&DN32;

 Anechoic Check Valve(NRV)-(Flange type) DN80&DN32;   Pressure relief valve (safety valve)DN15;

 Pressure gauge DN100;

  Vibration proof Pressure switch DN100;

 Suction filter-Y filter DN100;

 Welding Manifold pipe-Discharge DN100;

 Welding Manifold pipe-Suction DN100;
