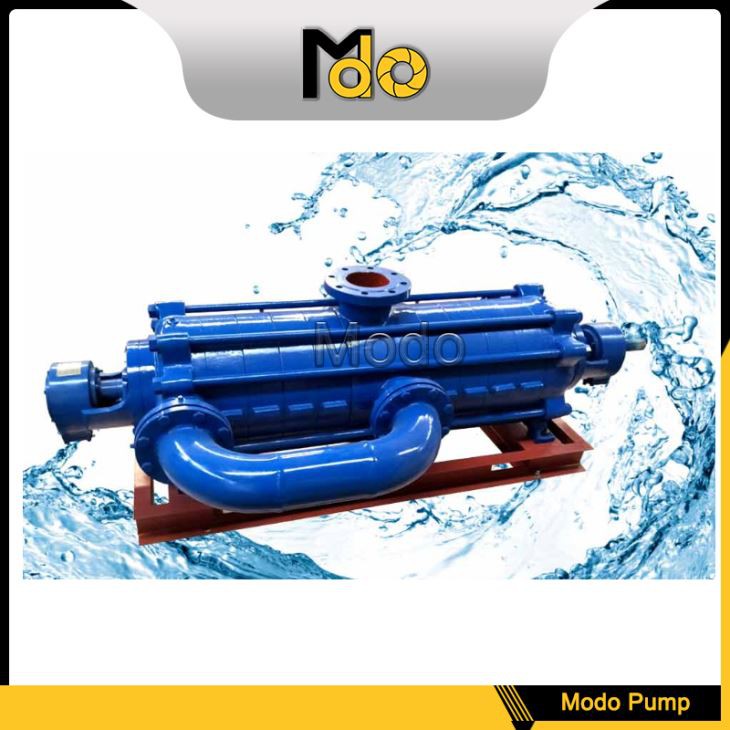

Stainless Steel Multistage Pump
MD multistage pump is characterized by its rational structure, high efficiency, nice NPSH, low vibration, stable operation, long service time and so on. It is applied to transport medium mineral water containing solid particlesl.5% (the granule is less than 0.5mm) and some other liquids similar to it. It is perfect equipment
MD Type pump is multi-stage section centrifugal pump, with excellent hydraulic models ,high-efficiency, energy-saving, and wide performance range, operating safety & steady, low noise, long life and installing & repairing is very convenient etc. It can deliver heat water, oil, corrosive or wearable medium by changing the material, seal or adding cooling system.
DG 450 – 60 x 4
DG-- Bolier feed water pump
450-- Rated flow 450 m3/h
60-- The single stage head is 60 m
4--Stage
| D/DG Water Pump Performance Data | |||||||
| Model | Capacity | Head m | Speed r/min | Motor Power (Kw) | Impeller Dia mm | Weight kg | |
| m3/h | L/S | ||||||
| D6-50x2 | 6.3 | 1.75 | 100 | 2950 | 11 | 198 | 140 |
| D6-50x12 | 6.3 | 1.75 | 600 | 2950 | 55 | 198 | 340 |
| D25-50x3 | 25 | 6.94 | 150 | 2950 | 30 | 196 | 220 |
| D25-50x12 | 25 | 6.94 | 600 | 2950 | 110 | 196 | 409 |
| D46-50x12 | 46 | 12.78 | 600 | 2950 | 160 | 210 | 475 |
| D85-67x9 | 85 | 23.6 | 603 | 2950 | 250 | 235 | 1840 |
| D120-50x2 | 120 | 33.3 | 100 | 2950 | 55 | 213 | 640 |
| D120-50x9 | 120 | 33.3 | 450 | 2950 | 220 | 213 | 1200 |
| D155-67x9 | 155 | 43.1 | 603 | 2950 | 450 | 235 | 1800 |
| D360-40X10 | 360 | 100 | 400 | 1480 | 630 | 360 | 2550 |
| D580-70X10 | 580 | 161.1 | 700 | 1480 | 1800 | 473 | 4120 |
| D720-60x9 | 720 | 200 | 540 | 1480 | 1600 | 450 | 3900 |
Description of selecting pump
1. The pump type, data, and gravity, temperature, viscosity, corrosive feature etc. must be stated in the order.
2. If the required data is different from the data in sheet of Performance Data, our company also can design according to your requirements.
