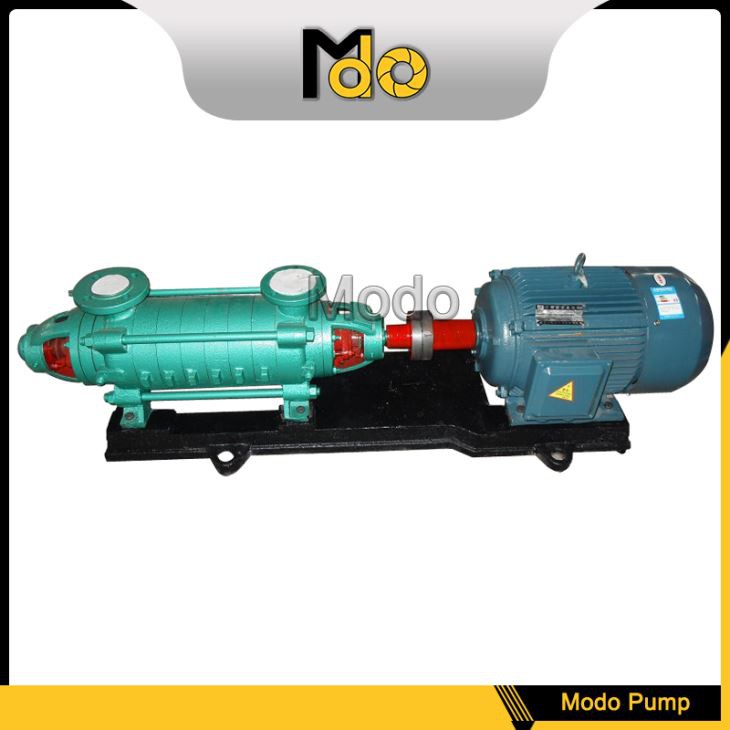

High Pressure Multistage 30bar Water Pump

Modo Pump has been focused on high pressure multistage 30bar water pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our high pressure multistage 30bar water pump and check the price list with us.



High pressure multistage 30bar water pump

Type DG pump is single-suction, multi-stage, segmental centrifugal pump. It is used for feeding water of low-middle pressure boiler as well as pumping high lift water of factory and city. It is provided for delivering clear water or other liquid which is physically and chemically similar to clear water. The temperature of the liquid for  type DG85-80 and 200DG 43 pump is -20℃~150℃, the temperature for the liquid for the others usually is -20℃~105℃. The maximum inlet pressure is not allowed more than 0.59MPa (6kgf/cm2).

Data

Capacity:35m3/h

Head:25bar

Temperature:105 degree

Suction pressure max:1bar

Power:55kw

Speed:2900rpm

Voltage&frequency:380v,50hz

Material list

Material   list
Suction casing	Cast steel
Discharge   casing	Cast steel
Stage   casing	Cast steel
Impeller	Cast steel
Diffuser	Cast steel
Shaft	40CR
Shaft sleeve	Cast steel
Balance disc	Cast steel
Balance ring	Cast steel
