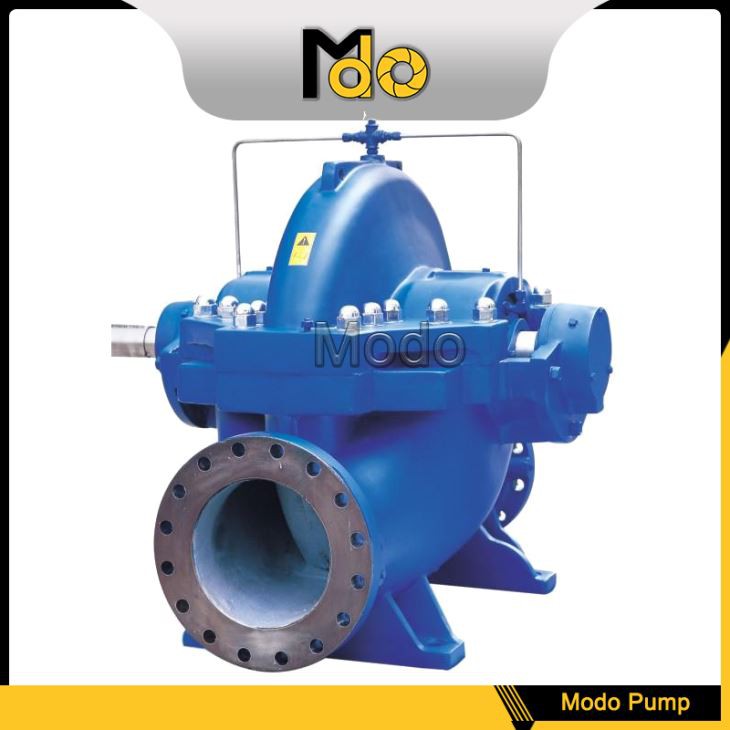

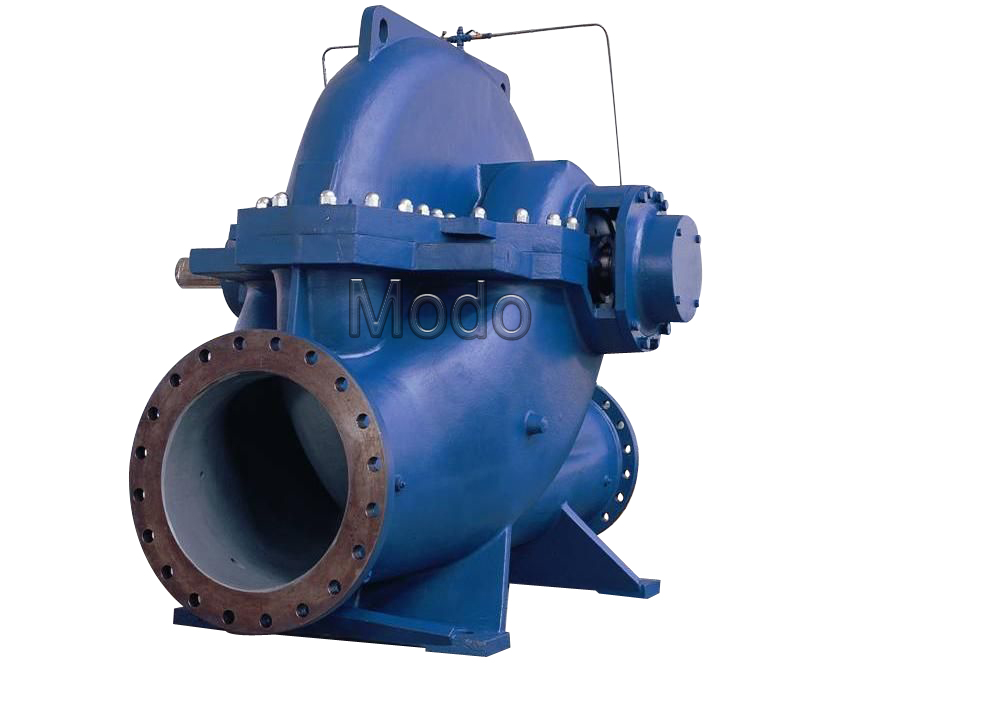

The "S" series split casing pump is a single stage, double suction horizontal open centrifugal pump. The S double suction pump is suitable for industrial and urban water supply and drainage pumps.
Modo Pump has been focused on split casing sewater pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our split casing sewater pump and check the price list with us.
Seawater pump photos:
Clients requirement:
We need two water pumps to send the seawater back to the ocean,discharge diameter 500mm,and the capacity is 1m3/sec,driven with Cummins engine.
As per client's information,we recommend duplex material,which is anticorrosive.
Material list
Casing
Duplex(2205)
Impeller
Duplex(2205)
Gland packing
Duplex(2205)
Shaft sleeve
Duplex(2205)
Double suction ring
Duplex(2205)
Shaft
2Cr13
Connecting bolt
Stainless steel
Impeller
Equipped with double suction impeller, which release the axial force to lowest level.
Most advantaged CDA hydraulic model.
The pump body can be adjusted to transformed impeller so that it can improve its efficiency in different situations.
Pump body
Equipped with double volute case, it releases radial force. Force on shaft decrease and lead to longer service life.
Convenient installation. Pump cover with automatic correction function.
Relative pipeline position of motor and pump body is changeable so as to adjust to different occasions.
There is on vortex beside inlet, stable operation and low wastage.
Bearing
Convenient maintenance, enlarged bearing, long service life.
Bearing sleeve fixed up in bottom of bearing, which contributes to stationary position and its reliability, easy dismounting.
Shaft
Enlarged one, fine rigidity stable operation, novel structure.
There is no damage on rotor even though short time of reversal and it is easily changed back into right direction.
It is a complete sealed shaft that could not get in touch with liquid and has nothing to do with thread corrosion.
Spare parts finely meet the pump specifications.
Base
Welded steel one for you chose which has the feature of impact resistance and fine malleability. It is portable and durable one.
Shaft Sealing
Branded mechanical sealing with no leakage, axle sleeve is stainless steel, which avoids corrosion.
Wadding used meets requirements for environmental protection.
Injection type of wadding can ensure current on-line service without stop the machine so that it can save loss of machine halt. Frictional power consumption decreases.
