Water Pump With Motor Driven

Modo Pump has been focused on water pump with motor driven manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our water pump with motor driven and check the price list with us.



Water Pump With Motor Driven

Pump description

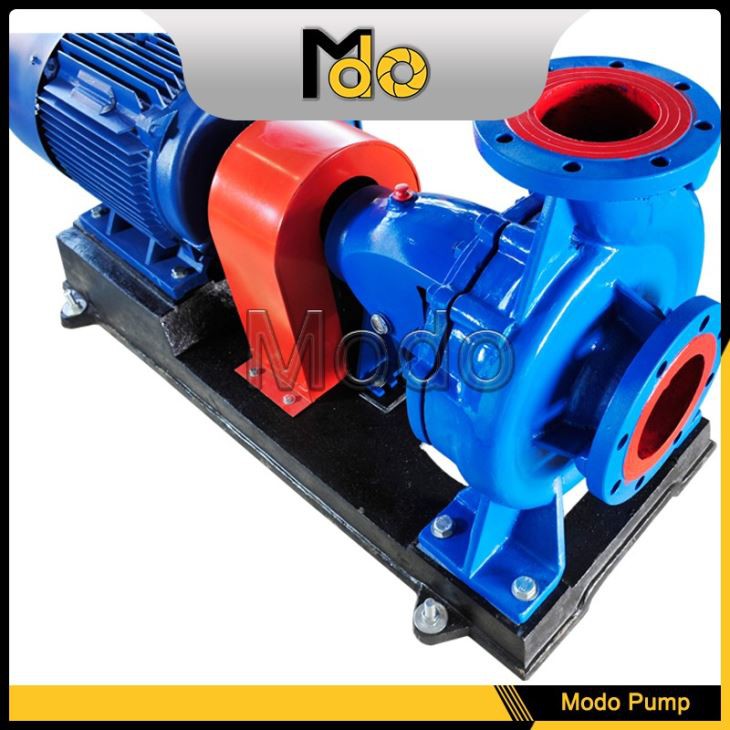

The IS150-125-315 water pump with motor driven is made of cast iron with mechanical seal. The flow of this pump is 200 cubic meter per hour and the head is 32m. The closed impeller designs make the pump high efficiency. The electric motor of it is 30kw/40hp with 1450rpm. It could be also driven with 1750rpm(60hz) motor for higher performance.

Performance Data

Efficiency: 78.9%
NPSHr: 2.5 m
Impeller diameter:  315mm
Rotation: Clockwise from the driven end
Suction diameter: 125mm
Discharge diameter: 40mm

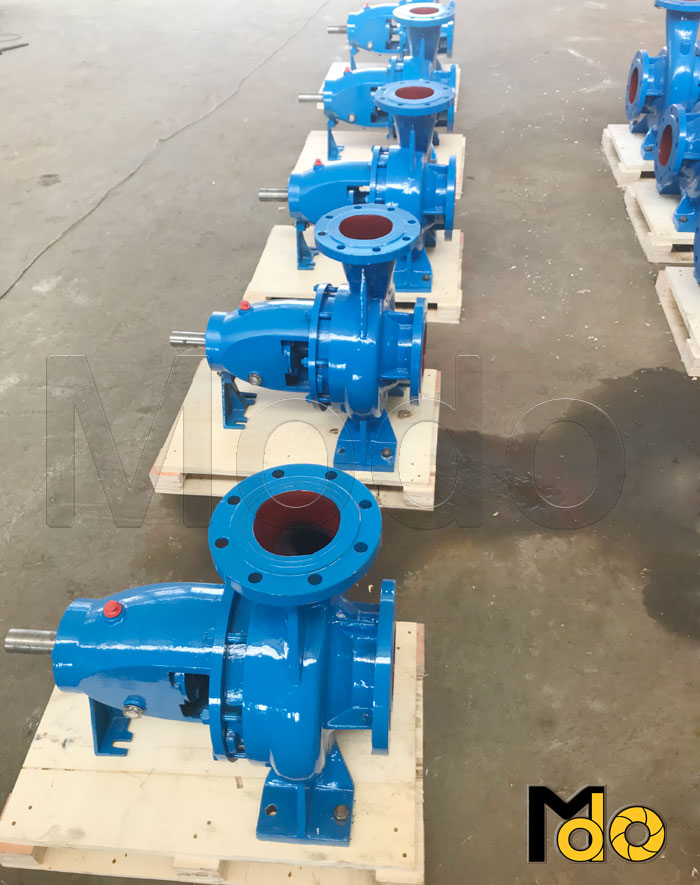

Pump reference photo

Pump using conditions

1. The suction range is not more than 9 meters.

2, transmission medium: clear water [clear river water, lake water, etc.

3. The temperature of the medium is not higher than 80 degrees.

4. The temperature of the environment is not higher than 40 degrees.
