10/8 China Sand Slurry Pump Manufacturer

Name: 10/8 China Sand Slurry Pump Manufacturer
Brand: Modo Pump Co.,Ltd
SKU: 93393916

Sand Slurry Pump M ODO sand slurry pump are heavy duty horizontal slurry pumps designed to handle the transfer of abraisive and high density slurries in minging and heavy industry. The slurry pumps are designed to be interchangeable with the most common slurry pump footprints used by the mining...

Send Inquiry

Product Details

Sand Slurry Pump

MODO sand slurry pump are heavy duty horizontal slurry pumps designed to handle the transfer of abraisive and high density slurries in minging and heavy industry. The slurry pumps are designed to be interchangeable with the most common slurry pump footprints used by the mining industry.

China sand slurry pump manufacturer:

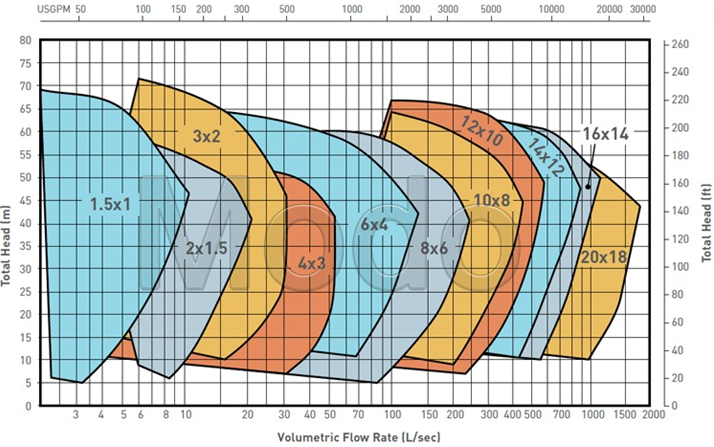

Pulp pump model selection:

·Usage:	Slurry, Sand & Sewage
·Type:	MAH Horizontal Centrifugal Slurry Pump
·Capacity	Up to 2880 m3/hr( 800 L/s )
·Head	Up to 65 m ( 214 feet )
·Speed:	Up to 1500 rpm
·Size:	25mm to 300mm (1＂up to 12＂)
·Temperature	Max.: 110 ℃
·Drive	Diesel or Electric
·Shaft	40 Cr
·Shaft Sleeve	3 Cr13
·Bearing Assembly	Timkin
·Cover Plate	Cast Iron
·Throat Bush	27% Chrome White Iron or Rubber
·Liner	27% Chrome White Iron
·Pump Casing	Cast iron
·Impeller	27% Chrome White Iron or Rubber

Type	Max. power	Capacity	Head	Speed	Max. Eff.	NPSH	Impeller Dia.	Max. Particle size
Type	kw	m³/h	m	r/min	%	m	mm	mm
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

China sand pump manufacturer:


China manufacturer sand slury pump supplier:

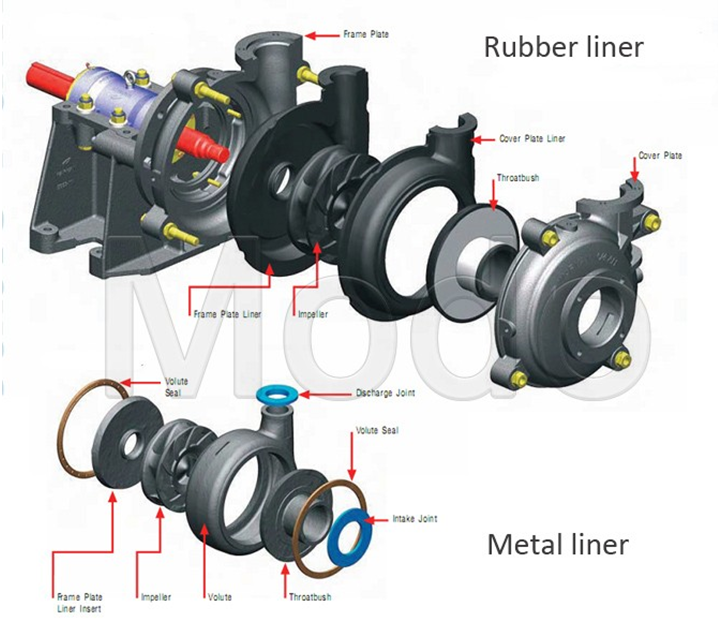

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber
