16/14 MAH Slurry Pump Supplier
16/14 MAH slurry pump China supplier Application: 16/14 MAH slurry pumps are widely used in mining, power, metallurgy, coal, deading, building material and other industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries. Minerals Flotation Processing...
16/14 MAH slurry pump China supplier
Application:
16/14 MAH slurry pumps are widely used in mining, power, metallurgy, coal, deading, building material and other industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Minerals Flotation Processing
Electric Factory Coal Preparation
Coal Washing
Chemical Medium Processing
Effluent Handling
Sand And Gravel Handling
Type Notation :
16/14 MAH slurry pump
16------ Suction Diameter(inch)
14------- Discharge Diameter(inch)
16/14 MAH slurry pumps working range:
| Model | Capacity（m3/h) | Head（m) | Speed(rpm) | Efficiency | NPSH (m) | Impeller | Impeller diameter(mm) |
| 16/14 | 2520-5400 | 13-57 | 250-550 | 79% | 4~8 | 5 | 1067 |

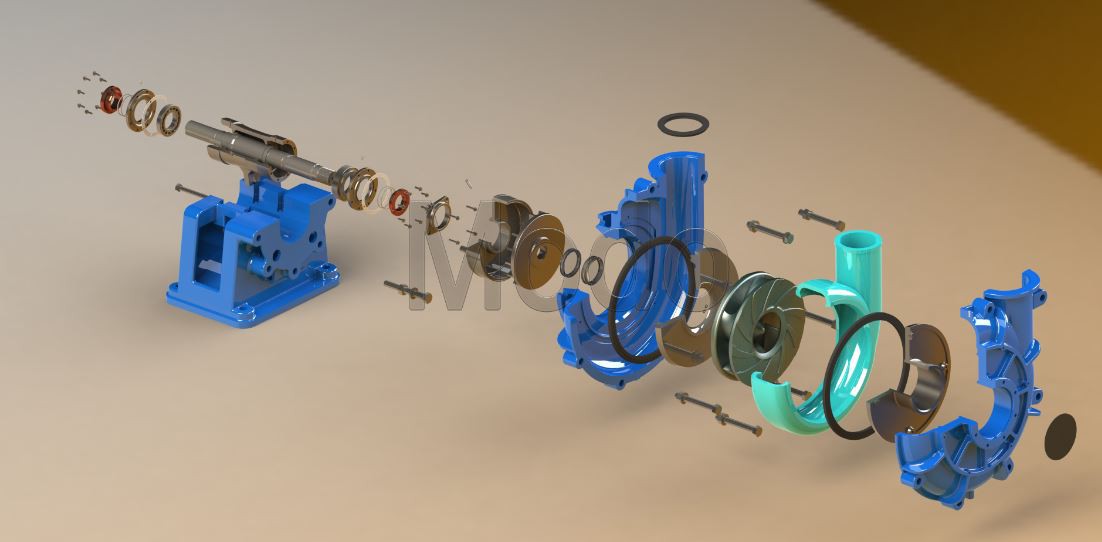

16/14 MAH slurry pump Structure :
![[JD(YB`SW}OT%1DGO~]RE}9](../Content/uploads/2019132031/201912241025531503974.jpg "[JD(YB`SW}OT%1DGO~]RE}9")

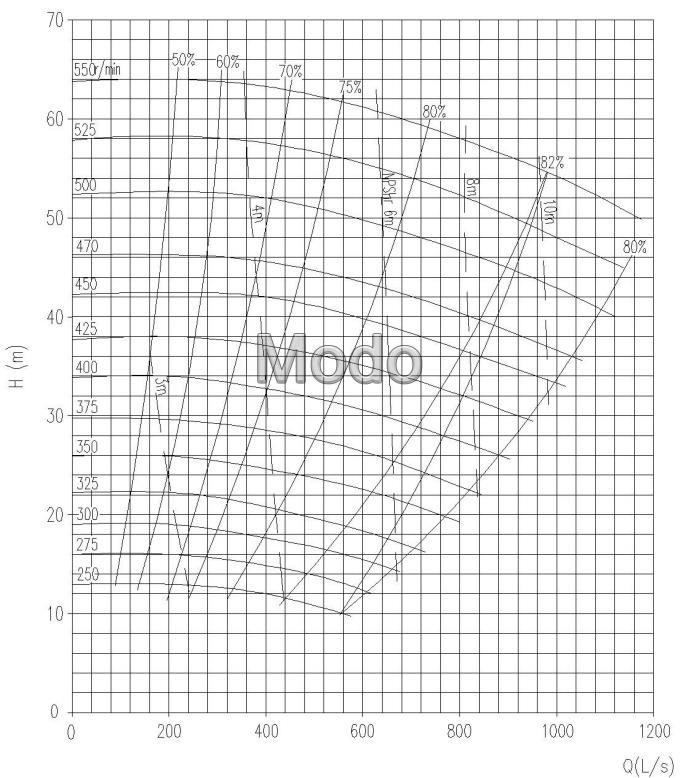

16/14 MAH slurry pump performance curve:

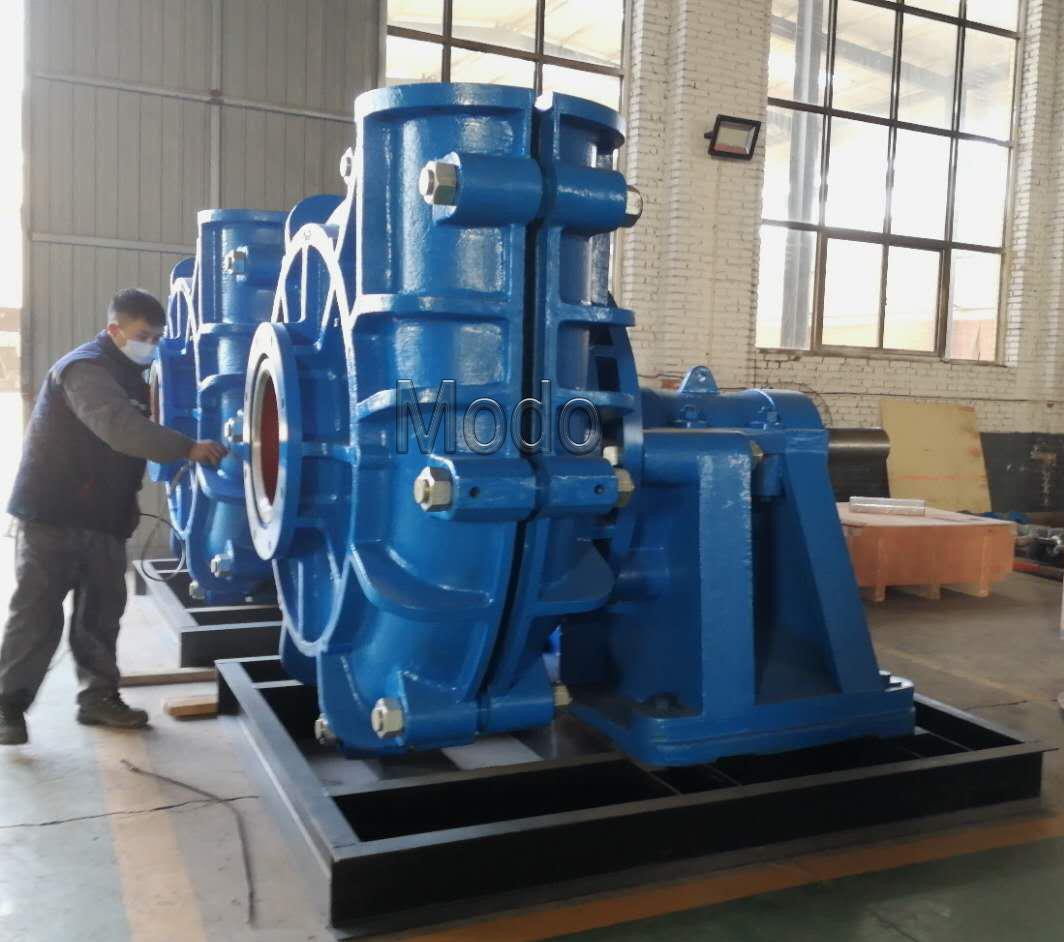

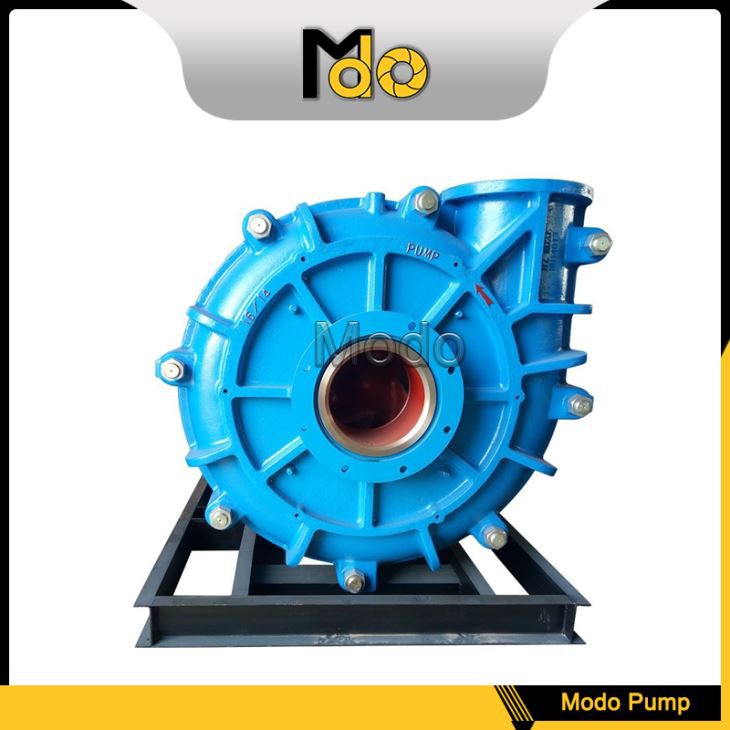

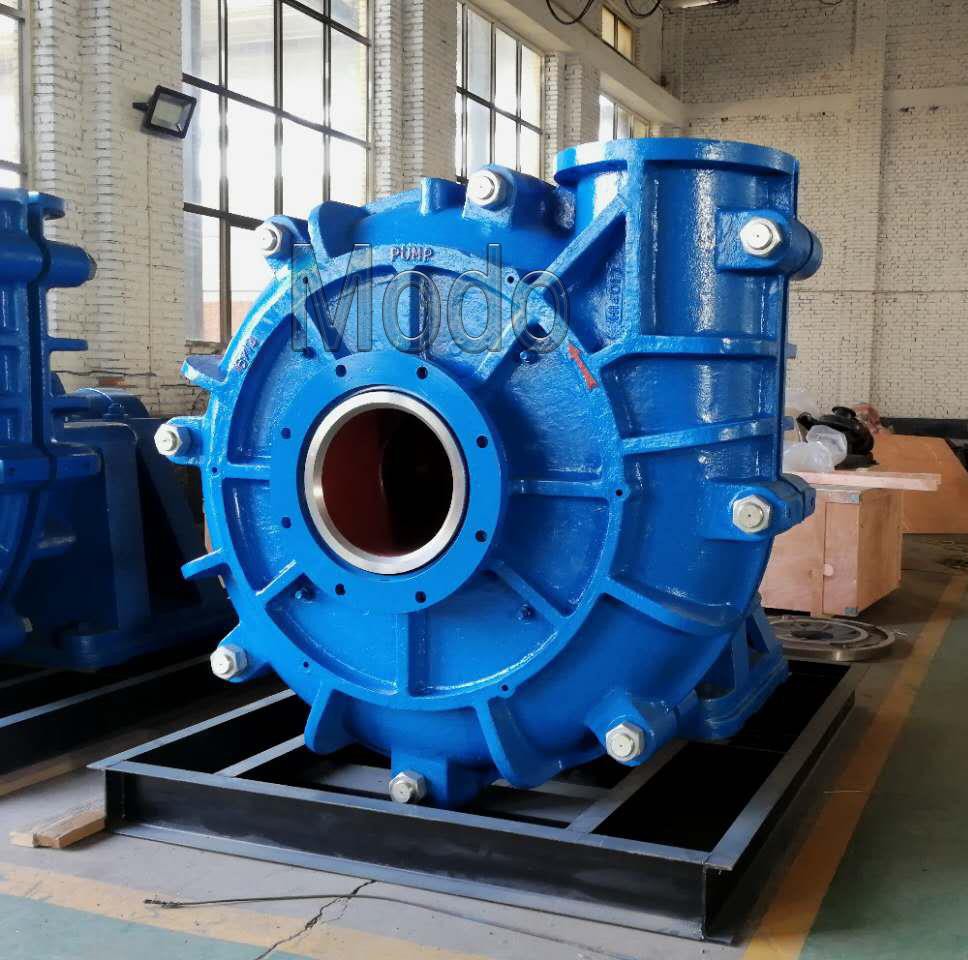

16/14 MAH slurry pump photos:
