Sewage Slurry Mud Pump

Modo Pump has been focused on sewage slurry mud pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our sewage slurry mud pump and check the price list with us.



A sewage slurry mud pump is a type of pump designed specifically for handling wastewater, sewage, and slurry with high solid content. These pumps are robust and capable of moving thick, abrasive, and viscous materials, making them suitable for various industrial, municipal, and agricultural applications where conventional pumps might struggle.

Models of sewage slurry mud pump

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

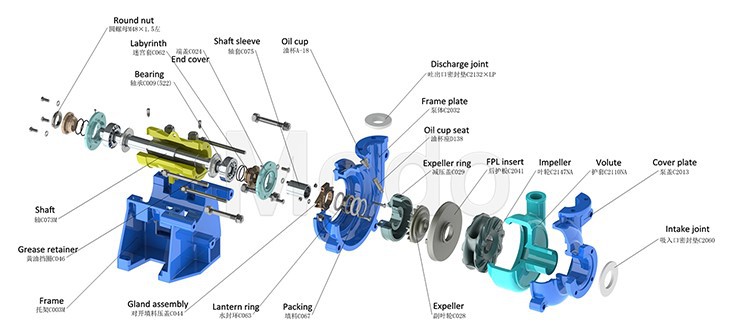

Exploded diagram of sewage slurry mud pump:

Spares parts of sewage slurry mud pump:

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

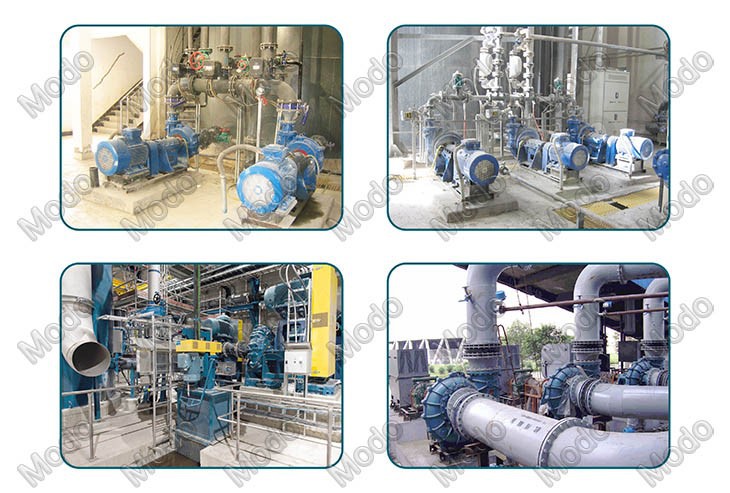

Working site of sewage slurry mud pump:



How to select the most suitable sewage slurry mud pump?
When it comes to selecting the right type of sewage slurry mud pump, there are two main materials to choose from- metal lining and rubber lining. Both of these materials have their own advantages and disadvantages, and it ultimately depends on your application and requirements.

Here are some things you should consider when choosing the appropriate material for your sewage slurry mud pump:

1. Abrasion Resistance:
Slurries often contain abrasive materials that can cause wear and tear on the sewage slurry mud pump components. The lining material needs to have excellent abrasion resistance to withstand the harsh conditions. Metal lining is generally more resistant to abrasion compared to rubber lining.

2. Corrosion Resistance:
Some slurry applications also involve corrosive materials that can corrode the sewage slurry mud pump components. Rubber lining is typically more resistant to corrosion than metal lining, making it a better choice for applications involving corrosive materials.

3. Flexibility:
Rubber lining is more flexible than metal lining, providing better noise and vibration absorption. This property makes it a better choice for applications where quieter operation is desired.Trust we could help you get a sewage slurry mud pump.
