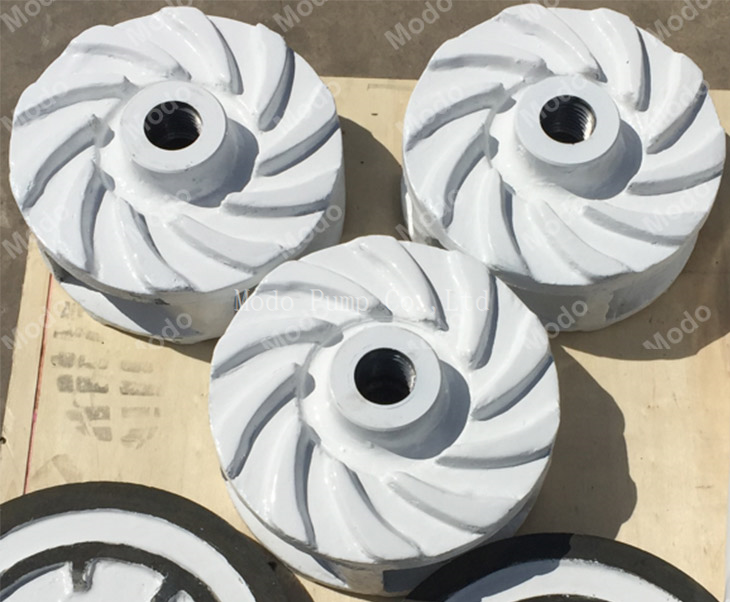

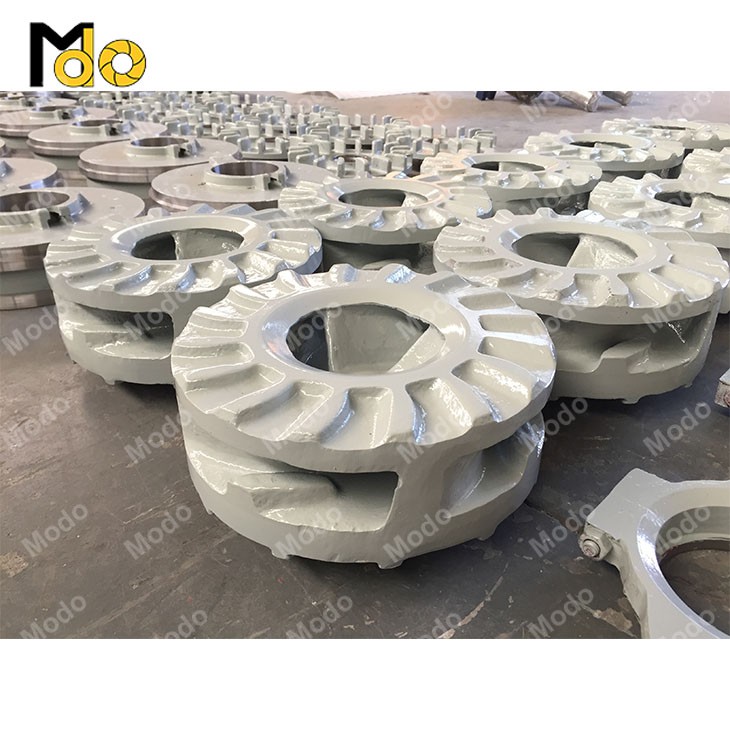

Slurry pump impeller



The slurry pump impeller is the main component of the slurry pump. The working principle of slurry pump is based on the movement of the impeller, which converts the mechanical energy of the motor into fluid energy. The slurry pump impeller is a rotating disc equipped with vanes or blades, which move the fluid or slurry through the slurry pump.

The material of the slurry pump impeller is crucial to the performance and durability of the slurry pump. The most commonly used materials for impellers are high-chrome iron, rubber, and ceramic. The type of material used depends on the nature of the slurry, with high-chrome iron being suitable for abrasive and corrosive slurry, rubber for abrasive slurry with a high concentration of solids, and ceramic impellers for high abrasion and chemical resistance.





The importance of the slurry pump impeller lies in its ability to handle the abrasive and corrosive slurry without wearing excessively. The impeller is optimized to ensure maximum efficiency and minimal wear and tear. Its design, size, and shape all play critical roles in the performance of the slurry pump. Therefore, careful selection of impeller material and design is crucial to ensure an efficient and long-lasting slurry pump.





Other important parts of slurry pumps:

The volute liner inside the pump casing and acts as a wear-resistant barrier between the fluid and the pump casing. The liner is also designed to reduce the turbulence of the flow, which in turn, improves the efficiency of the pump. Lining materials include rubber, ceramic or polyurethane.

The throat bush is the small clearance area between the impeller and the liner. This component is critical in preventing both wear and recirculation of the fluid within the pump when installed correctly. The throat bush is made from high wear-resistant materials such as chrome alloy or rubber.

Overall, the main function of these components is to ensure that the slurry pump can transport abrasive fluid or slurry efficiently and effectively. The materials used in these components are chosen based on their high wear resistance and ability to handle the abrasive nature of the fluids.
