High Head Submersible Slurry Pump

Modo Pump has been focused on high head submersible slurry pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our high head submersible slurry pump and check the price list with us.



Above photo is the model MSS500-55-132
Flowrate:500m³/h
Head:55m
Power:132kw
Speed:980rpm
The pump is equipped with a bottom cutter for mixing sand and slurry.

High head submersible slurry pumps refer to pumps that are capable of handling abrasive and viscous slurries at high pressures. They are designed with a high head impeller that can generate the necessary pressure to move heavy slurry over long distances. These pumps are typically used in applications such as mining, dredging, and industrial processes where there is a need to transport solids-containing fluid.

Model	Outlet Dia. (mm)	Capacity (m³/h)	Head (m)	Power (Kw)	Speed (r/min)	Max.Dia.of Solid (mm)	Pump Weight (kg)
SS45-15-5.5	80	45	15	5.5	1460	13	100
SS15-20-5.5	80	15	20	5.5	1460	13	100
SS30-30-7.5	80	30	30	7.5	1460	13	114
SS50-26-11	80	50	26	11	1460	13	165
SS75-25-15	100	75	25	15	1460	13	220
SS150-18-18.5	150	150	18	18.5	980	32	550
SS200-12-22	150	200	15	22	980	45	580
SS60-46-30	150	60	46	30	980	21	700
SS150-30-30	150	150	30	30	980	21	550
SS300-20-37	200	300	20	37	980	28	775
SS200-30-45	150	200	30	45	980	36	1000
SS500-15-45	250	500	15	45	980	46	1100
SS250-35-55	150	250	35	55	980	36	1140
SS600-15-55	250	600	15	55	980	46	1140
SS350-35-75	200	350	35	75	980	28	1550
SS500-20-75	200	500	20	75	980	25	1550
SS200-60-90	150	200	60	90	980	14	1550
SS400-40-90	200	400	40	90	980	28	1550
SS600-30-110	200	600	30	110	980	28	1970
SS1000-18-110	300	1000	18	110	980	50	1970
SS500-45-132	200	500	45	132	980	28	2000
SS1000-22-132	300	1000	22	132	980	50	2000
SS650-52-160	200	650	52	160	980	28	2650
SS780-50-185	300	780	50	185	980	38	3330
SS800-55-220	300	800	55	220	980	38	3400
SS1250-35-220	350	1250	35	220	980	45	3400
SS1750-30-250	350	1750	30	250	980	55	3500
SS2000-35-315	400	2000	35	315	980	60	3700

The benefits of using high head submersible slurry pumps include their ability to handle abrasive and corrosive materials, their ability to handle large volumes of fluid at high pressure, and their ability to operate efficiently even in challenging conditions. Some common features of high head submersible slurry pumps include robust construction, heavy-duty bearings, and a high-powered motor.

Overall, high head submersible slurry pumps are an essential piece of equipment for many industrial processes and provide a reliable and efficient solution for handling difficult-to-manage fluids.

Features
• Submersible work without influence of suction head;
• No assistant vacuum pump, save invest;
• No noise, keep the silence of work station;
• With agitator, no need extra stirring devices, more convenience for operating;
• It need not build pump house.
• Directly work on the surface of slurry, with higher efficiency to deliver slurry.

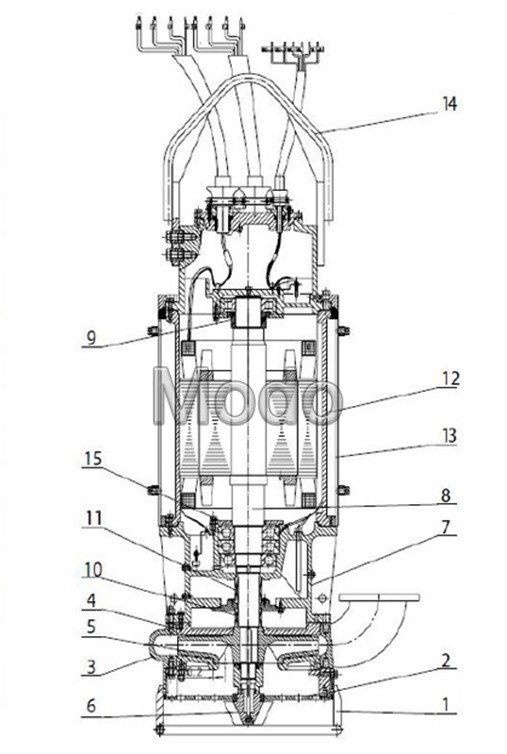

MSS Submersible Slurry Pump

1.Support Frame
2.Strainer
3.Pump Casing
4.Back Plate
5.Impeller
6.Agitator
7.Oil Chamber Housing
8.Shaft
9.Shaft Sleeve
10.Wet End Mechanical
11.Motor Mechanical Seal
12.Motor Casing
13.Motor Cooling Jacket
14.Lifting Brace
15.Bearing Covers
16.Oil Chamber Cover

Description

Usage	Slurry, Sewage and Water
Type	MSS Submersible Slurry Pump
Capacity	Up to 2400 m*/hr (666 1/s)
Head	Up to 60m (196 feet)
Speed	Up to 1480rpm
Size	80mm to 400mm (3.15"up to 16")
Temperature	Max.110℃
Drive	Electric
Support Frame	Mild Steel
Strainer	420 Stainless Steel
Pump Casing	27% Chrome White lron or 316 Stainless Steel/Duplex1
Back Plate	27% Chrome White iron or 316 Stainless Steel/Duplex1
Impeller	27% Chrome White lron or 316 Stainless Steel/Duplex1
Agitator	27% Chrome White lron or 316 Stainless Steel/Duplex1
Oil Chamber Housing	Cast lron
Shaft	420 Stainless Steel
Shaft Sleeve	420 Stainless Steel
Wet End Mechanical Seal	304 Stainless Steel
Motor Mechanical Seal	304 Stainless Steel
Motor Casing	Cast lron
Motor Cooling Jacket	Fabricated Mild Steel
Lifting Brace	Mild Steel
Bearing Covers	Cast lron
Oil Chamber Cover	Cast lron
