Electric Submersible Slurry Pump

Modo Pump has been focused on electric submersible slurry pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our electric submersible slurry pump and check the price list with us.



An electric submersible slurry pump is a type of pump designed to handle slurries, which are mixtures of water and solids. The pump is placed underwater and powered by an electric motor. It is designed to handle abrasive and corrosive materials, and is commonly used in mining, dredging, and other industries where heavy-duty pumping is required. The pump consists of a motor, impeller, and a series of wear-resistant components that protect the pump from the harsh environment. The electric motor is sealed and protected from water and debris by being placed inside a waterproof housing. The impeller is responsible for creating the centrifugal force necessary to move the slurry through the pump and into the discharge pipe. The wear-resistant components are made high-chrome steel to ensure they can withstand the abrasive nature of the slurry.

There`re protective sensors inside the electric submersible slurry pump, including overload protection, oil chamber leakage protections, motor leakage protection. Greater protection of the motor from damage and extended service life.

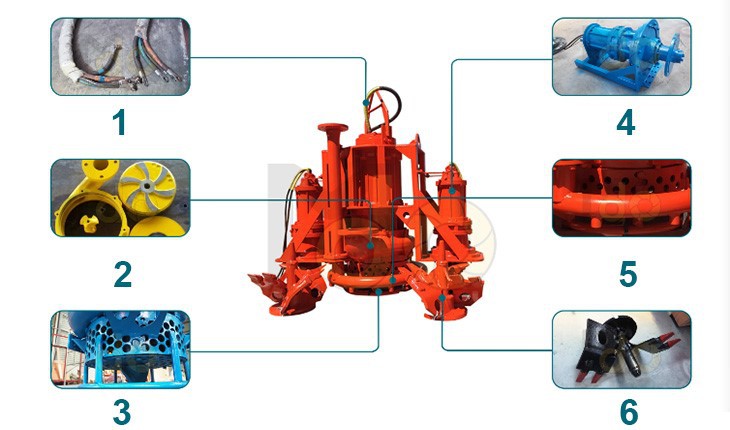

1.Protection:overload/motor leakage
2.Anti-wear parts material:high chrome
3.Bottom agitator-Mixing the water and sand by centrifugal force
4.Loosen the hard materials into small pieces
5.High pressure water jet system for more sand capacity
6.Replacable teeth maganese steel material

Except electrical submersible slurry pump, the pump can be also hydraulic powered, it can be mounted on an excavator, or a hydraulic power pack. Depends on customer`s request.

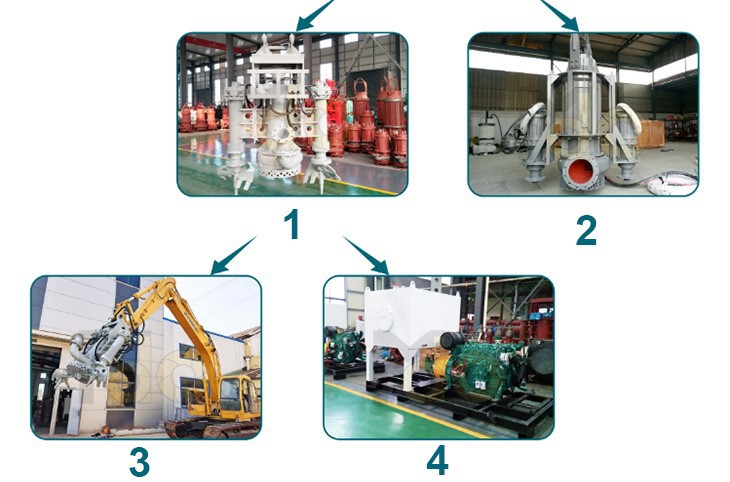

                           Different driven styles

1.Hydraulic
2.Electrical
3.Mounted on excavator
4.Driven by hydraulic power pack

When selecting a suitable model, customer need to supply below information:
Driven type: Electrical or hydraulic
Flowrate:___m³/h
Head:___m
Voltage___V___Hz (If electrical)
Excavator brand and model (If hydraulic by excavator)
Or can refer to below selection chart:

Model	Outlet Dia. (mm)	Capacity (m³/h)	Head (m)	Power (Kw)	Speed (r/min)	Max.Dia.of Solid (mm)	Pump Weight (kg)
SS45-15-5.5	80	45	15	5.5	1460	13	100
SS15-20-5.5	80	15	20	5.5	1460	13	100
SS30-30-7.5	80	30	30	7.5	1460	13	114
SS50-26-11	80	50	26	11	1460	13	165
SS75-25-15	100	75	25	15	1460	13	220
SS150-18-18.5	150	150	18	18.5	980	32	550
SS200-12-22	150	200	15	22	980	45	580
SS60-46-30	150	60	46	30	980	21	700
SS150-30-30	150	150	30	30	980	21	550
SS300-20-37	200	300	20	37	980	28	775
SS200-30-45	150	200	30	45	980	36	1000
SS500-15-45	250	500	15	45	980	46	1100
SS250-35-55	150	250	35	55	980	36	1140
SS600-15-55	250	600	15	55	980	46	1140
SS350-35-75	200	350	35	75	980	28	1550
SS500-20-75	200	500	20	75	980	25	1550
SS200-60-90	150	200	60	90	980	14	1550
SS400-40-90	200	400	40	90	980	28	1550
SS600-30-110	200	600	30	110	980	28	1970
SS1000-18-110	300	1000	18	110	980	50	1970
SS500-45-132	200	500	45	132	980	28	2000
SS1000-22-132	300	1000	22	132	980	50	2000
SS650-52-160	200	650	52	160	980	28	2650
SS780-50-185	300	780	50	185	980	38	3330
SS800-55-220	300	800	55	220	980	38	3400
SS1250-35-220	350	1250	35	220	980	45	3400
SS1750-30-250	350	1750	30	250	980	55	3500
SS2000-35-315	400	2000	35	315	980	60	3700
