Submersible Pump For Sludge

Modo Pump has been focused on submersible pump for sludge manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our submersible pump for sludge and check the price list with us.



A submersible pump for sludge is a type of pump that is designed to handle and move sludge from one location to another. Sludge is a thick, viscous material that can clog or damage conventional pumps, making submersible pumps a popular choice for this application. These pumps are typically electrically powered and are completely submerged in the sludge during operation. They are often used in wastewater treatment plants, mining operations, and other industrial applications where sludge needs to be moved or transferred. Some common features of submersible pumps for sludge include rugged construction, corrosion resistance, and the ability to handle solids and other debris.

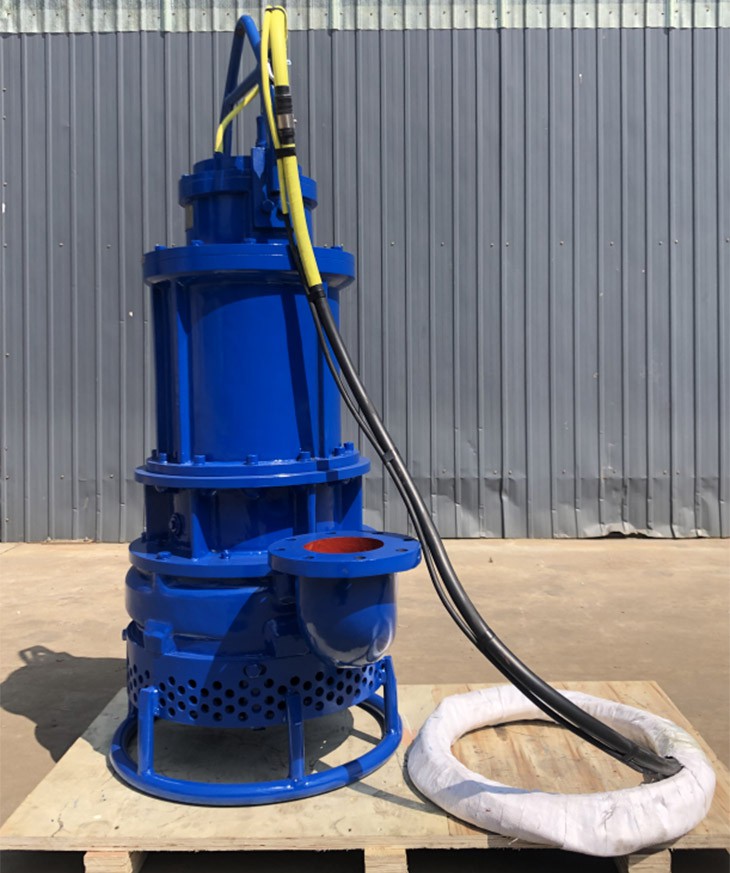

Above photo is submersible slurry pump used for removing sludge, sediment, and debris that settle at the bottom of a pond,, below is the pump main specification.
MSS200-20-30
Flowrate:200m³/h
Head:20m
Power:30kw
Speed:980rpm
Discharge:150mm
Max particle size:21mm
Material:high chrome alloy
The pump is heavy duty type, net weight:736kg.

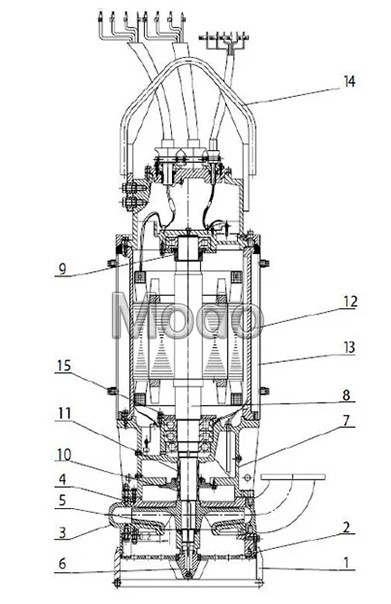

MSS Submersible Slurry Pump Structure

1.Support Frame
2.Strainer
3.Pump Casing
4.Back Plate
5.Impeller
6.Agitator
7.Oil Chamber Housing
8.Shaft
9.Shaft Sleeve
10.Wet End Mechanical
11.Motor Mechanical Seal
12.Motor Casing
13.Motor Cooling Jacket
14.Lifting Brace
15.Bearing Covers
16.Oil Chamber Cover

Description

Usage	Slurry, Sewage and Water
Type	MSS Submersible Slurry Pump
Capacity	Up to 2400 m*/hr (666 1/s)
Head	Up to 60m (196 feet)
Speed	Up to 1480rpm
Size	80mm to 400mm (3.15"up to 16")
Temperature	Max.110℃
Drive	Electric
Support Frame	Mild Steel
Strainer	420 Stainless Steel
Pump Casing	27% Chrome White lron or 316 Stainless Steel/Duplex1
Back Plate	27% Chrome White iron or 316 Stainless Steel/Duplex1
Impeller	27% Chrome White lron or 316 Stainless Steel/Duplex1
Agitator	27% Chrome White lron or 316 Stainless Steel/Duplex1
Oil Chamber Housing	Cast lron
Shaft	420 Stainless Steel
Shaft Sleeve	420 Stainless Steel
Wet End Mechanical Seal	304 Stainless Steel
Motor Mechanical Seal	304 Stainless Steel
Motor Casing	Cast lron
Motor Cooling Jacket	Fabricated Mild Steel
Lifting Brace	Mild Steel
Bearing Covers	Cast lron
Oil Chamber Cover	Cast lron
