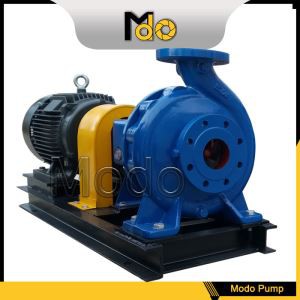

60hz horizontal water pump
Description
The ISA series 60hz horizontal water pump is designed complying to BS EN733/DIN24255 standard. The ISA 60hz horizontal water pump is made of cast iron material with mechanical seal. It would delivery to Venezuela.
Performance Data of 60hz horizontal water pump
Flow rate | 60M3/hr |
Head | 33.6m |
Speed | 1750rpm |
Inlet/outlet diameter | 65mm |
Impeller diameter | 80mm |
Efficiency | 70% |
Motor | 11kw/1750rpm/440V/60HZ |
Weight | 276 kg |
Dimension(LxWxH) | 120cmx5cmx65xm |
Materials of 60hz horizontal water pump
Parts | Material |
Pump Casing | Cast iron |
Pump Impeller | Cast iron |
Shaft | ASTM1045 |
Shaft seal | Mechanical seal |
Gaskets | Rubber |
Features of 60hz horizontal water pump
Back pull out design
High efficiency
DIN European standard
Applications of 60hz horizontal water pump
Water supply and drainage
Marine—Ballasting & Bilge
Booster and pressurization set
Irrigation and agriculture
Food and chemical industry(with stainless steel material)
Package of 60hz horizontal water pump
The 60zh horizontal water pump is packed with strong plywooden cases, which is fumigation free. The light weight of it can save deliery cost. While it is also strong enough to protect pumps.
