Fire Fighting Pump

Modo Pump has been focused on fire fighting pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our fire fighting pump and check the price list with us.



split case fire pump made in China

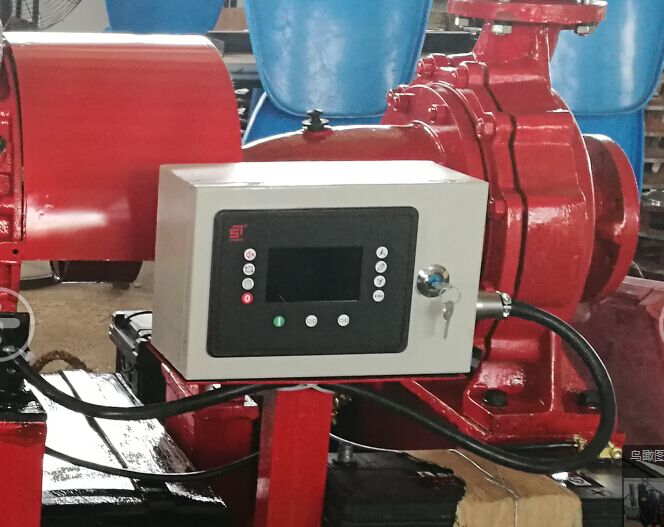

Split case fire pump+LED controller

Split case fire pump+jockey pump+LED controller

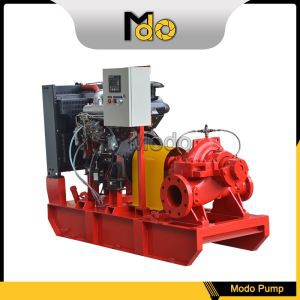

Split case fire pump diesel engine+electric engine+jockey pump+LED controller

Split case Fire pumps can be driven either by an electric motor or a diesel engine, power independent of the local electric power grid, a pump using an electric motor may utilize, when connected via a listed transfer switch, the installation of an emergency generator.

Split case Pump specification:

·Usage:
·Type:	MS Double Suction Water Pump
·Capacity	68 m3/hr to 30000 m3/hr
·Head	6 m to 230 m
·Speed:	585 rpm/730rpm/980rpm/1450rpm/2980rpm
·Outlet Diameter:	150mm to 1600mm (6＂up to 64＂)
·Temperature	Max.: 80 ℃
·Drive	Diesel or Electric
·Shaft	4140 Mild Steel
·Shaft Sleeve	Cast iron/3 Cr13/40 Cr
·Pump Casing	Cast iron/Cast steel/SS   304/SS316
·Impeller	Cast iron/Cast steel/SS   304/SS316/Bronze
·Shaft seal	Mechanical seal/Packing gland   seal
·Seal ring	Cast   iron/ZCuZn16Si4/ZCuSn10Zn2

Types of pumps used for fire service include: horizontal split case fire pump, vertical split case, vertical inline, vertical turbine, and end suction.Besides split case fire pump we have following models:

Kindly supply following information:

--Liquid

--Capacity

--Head

--Electric or diesel engine

--Jockey pump need or not

Email us for your solution :

mailto:miya@modopump.cn
