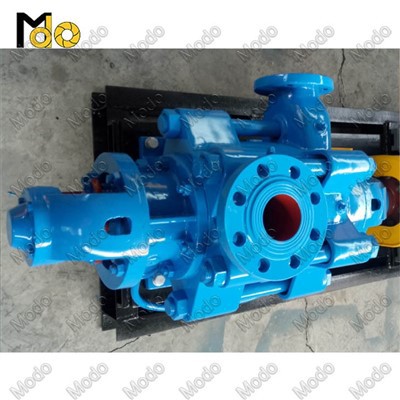

Multistage Centrifugal Ring Section Pump

Modo Pump has been focused on multistage centrifugal ring section pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our multistage centrifugal ring section pump and check the price list with us.



Multistage centrifugal ring section pump is a type of centrifugal pump that is used in various industries to move fluids from one place to another. These pumps are highly efficient and reliable, making them a popular choice for many applications.
The design of multistage centrifugal pump ring section pump includes multiple stages of impellers and diffusers, which work together to create a steady flow of fluid. The impellers are mounted on a central shaft and rotate at high speeds, creating centrifugal force that pushes the fluid outward.
One of the benefits of multistage centrifugal ring section pump is its ability to handle high flow rates and high pressures with ease. This makes it an ideal choice for applications such as water treatment plants, oil refineries, and chemical processing facilities.
Another advantage of multistage centrifugal ring section pump is their low maintenance requirements. They are built with durable materials that can withstand harsh environments and prolonged use without breaking down.
Overall, a ring section pump is an excellent investment for businesses that require efficient and reliable fluid handling. With its many benefits and proven track record, it is a wise choice for any industry that needs to move large quantities of fluid on a regular basis.
Multistage centrifugal pump ring section pump model and data sheet

Model	Flow rate	Head	Speed	Pa	Motor		Efficiency	NPSHr	Inlet	Outlet
	M3/h	m	rpm	KW	KW	Model	%	m	mm	mm
D46-50x3	46	150	2980	29.83	37	Y200L1-2	63	2.8	80	80

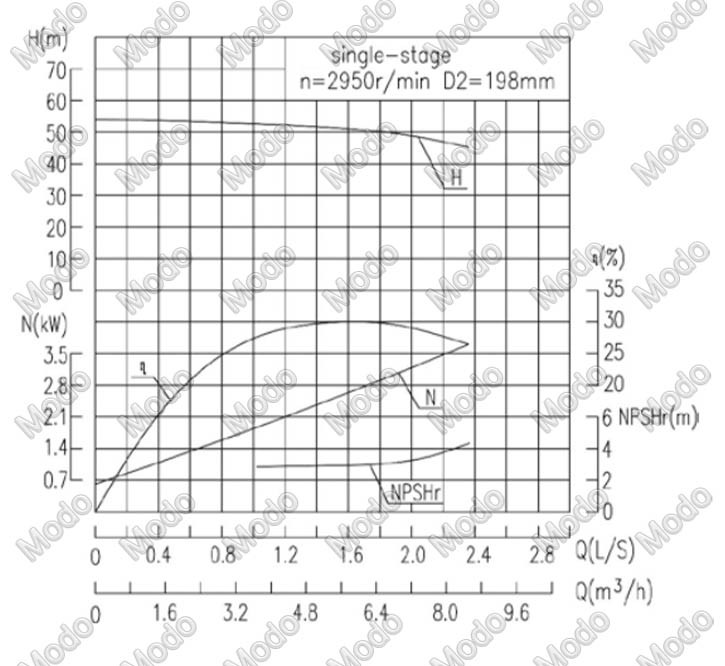

Performance curve

How is the difference between multistage centrifugal ring section pump and single stage centrifugal pump?
Centrifugal pumps are widely used for various applications in different industries. Among the different types of centrifugal pumps, the multistage and single stage are two of the most commonly used designs.
Single stage centrifugal pump has only a single impeller and volute, which means that it can only generate a certain amount of head (pressure) and flow rate. It is best suited for applications that require low to moderate pressure and flow rates.
On the other hand, a multistage centrifugal ring section pump has multiple impellers and volutes stacked one after another, which enables it to generate higher pressures and flow rates. Each impeller and volute combination adds more pressure and flow rate to the output, making it ideal for high-pressure applications.
Furthermore, multistage pumps are more efficient compared to single stage pumps when it comes to applications requiring high lift. The reason for this is that the power output of each impeller is used to pressurize the fluid repeatedly, resulting in a higher overall head.
In general, single stage centrifugal pumps are simple, cost-effective, and easy to maintain. They are best suited for low-pressure applications like water supply, circulation, irrigation, etc. Whereas multistage centrifugal pumps are more expensive, but they can generate high-pressure and flow rates making them ideal for applications requiring high-pressure pumping like oil and gas processing, boiler feeding, etc.
In conclusion, both single stage and multistage centrifugal pumps have their own advantages and limitations. Choosing the right pump depends on the specific needs of the application and its requirements. Therefore, it is essential to evaluate the requirements of the application before deciding which type of pump is needed.

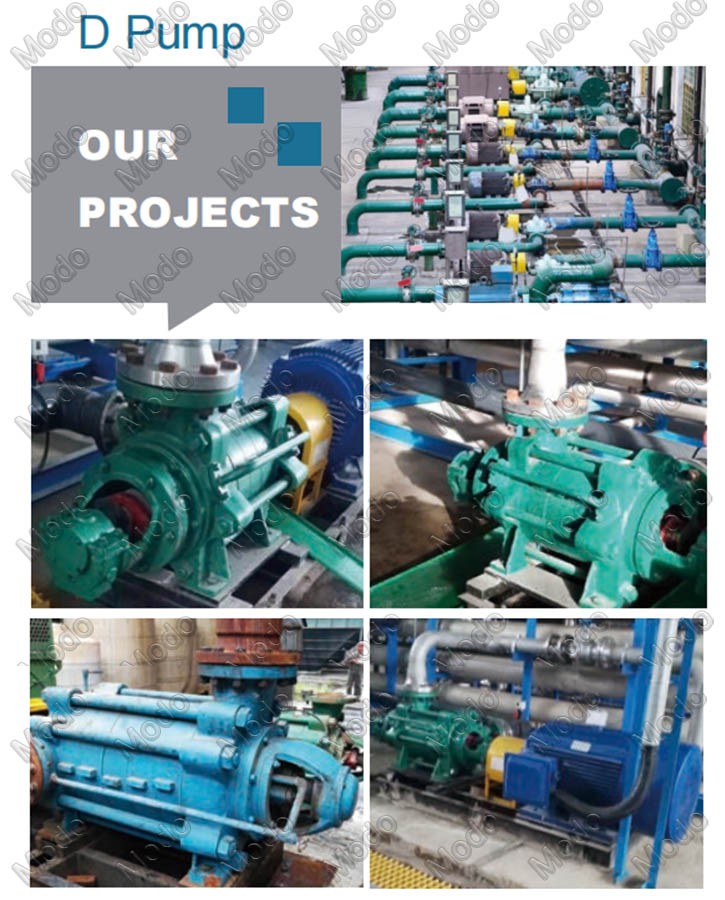

Application projects

How to select multistage pump model?
Multistage centrifugal pump and single stage centrifugal pump is a type of centrifugal pump that uses multiple impellers or stages to increase the pressure and flow rate of the liquid being pumped. Multistage pumps are commonly used in applications such as water supply, irrigation, boiler feed, and chemical processing.
When selecting a multistage pump model, there are several factors that should be considered:
1. Flow rate: The desired flow rate of the liquid being pumped is one of the most important factors to consider when selecting a multistage pump. The flow rate is typically measured in gallons per minute (GPM) or cubic meters per hour (m3/h) and will determine the size and capacity of the pump.
2. Head: The head is the amount of pressure required to move the liquid from the inlet to the outlet of the pump. It is typically measured in feet or meters of liquid. The head will also determine the size and capacity of the pump.
3. Liquid properties: The properties of the liquid being pumped, such as viscosity, temperature, and chemical composition, will affect the selection of the pump. For example, if the liquid is highly corrosive, a pump with special materials of construction may be required.
4. Pump efficiency: The efficiency of the pump is important to consider as it will impact the operating cost of the pump. A more efficient pump will consume less energy and require less maintenance.
5. Pump type: Multistage pumps come in various types, including horizontal, vertical, and inline. The type of pump selected will depend on factors such as available space, installation requirements, and the specific application.
In summary, selecting the right multistage pump model involves considering the flow rate, head, liquid properties, pump efficiency, and pump type. By taking these factors into account, a suitable multistage pump can be chosen to meet the requirements of the application.
