110KW Split Casing Water Pump
The China centrifugal double suction pump is energy-saving, single-stage, double-suction centrifugal water pump. This centrifugal double suction pump adopts the national standard design, the pump series, standardization, high degree of generalization, at the same time, in the design of a new material, new structure, can be used for a variety of media delivery.

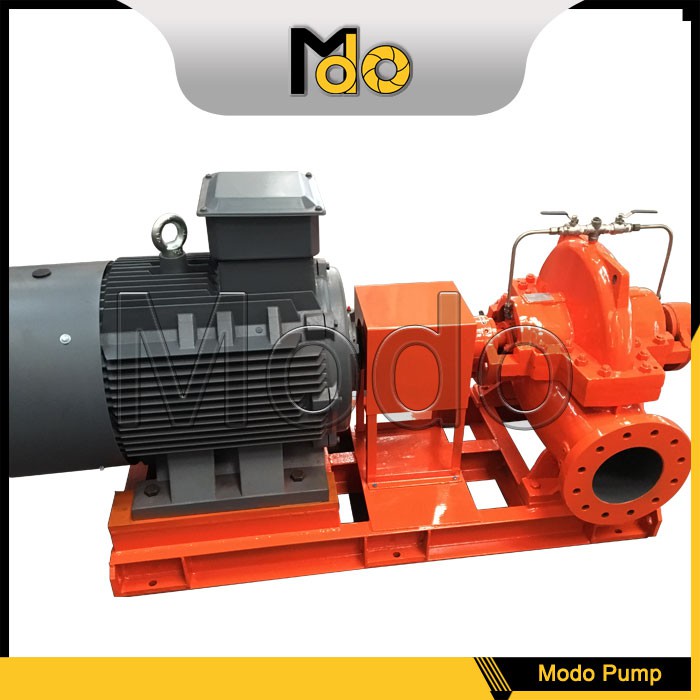

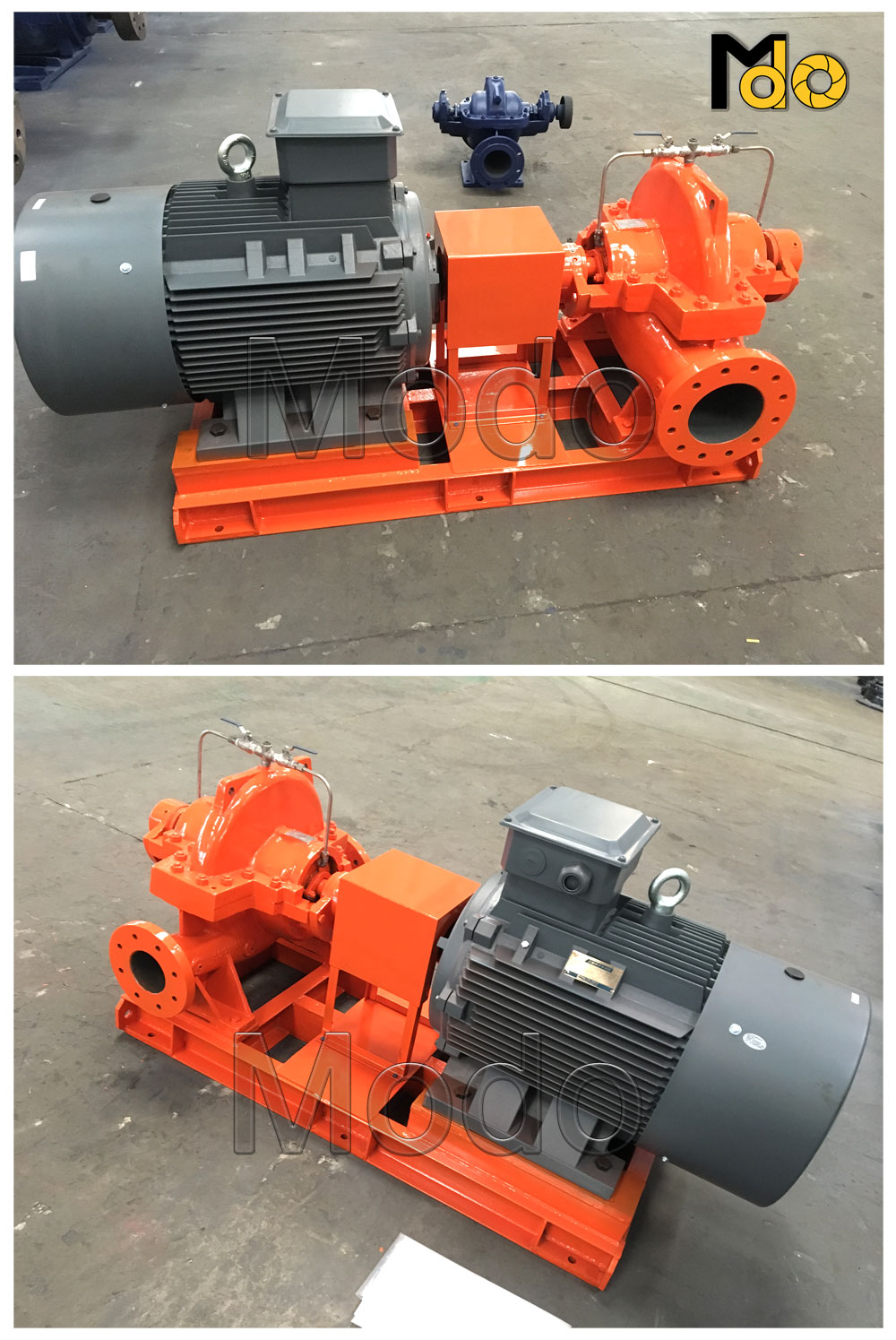

110KW split casing water pump
MS type 110KW split casing water pump is a single-stage centrifugal pump, horizontal in the open, for the transport of water and physical and chemical properties similar to water in liquid, the liquid temperature should not exceed 80 °C, suitable for factories, mines, power plants, city drainage, drainage irrigation and water onservancy.
110KW split casing water pump Specifications
Q = 327 mc/h
H = 91 m
RPM = 1480
Eff = 80%
Pabs = 85.6 kW
Pinst = 110 kW
Pumped liquid = Clean water
Pump materials = Cast iron
Impeller type = Closed
The Series Pump Specifications
·Usage: | Clean water/Sea water |
·Type: | MS Double Suction Water Pump |
·Capacity | 68 m3/hr to 30000 m3/hr |
·Head | 6 m to 230 m |
·Speed: | 585 rpm/730rpm/980rpm/1450rpm/2980rpm |
·Outlet Diameter: | 150mm to 1600mm (6＂up to 64＂) |
·Temperature | Max.: 80 ℃ |
·Drive | Diesel or Electric |
·Shaft | 4140 Mild Steel |
·Shaft Sleeve | Cast iron/3 Cr13/40 Cr |
·Pump Casing | Cast iron/Cast steel/SS 304/SS316 |
·Impeller | Cast iron/Cast steel/SS 304/SS316/Bronze |
·Shaft seal | Mechanical seal/Packing gland seal |
·Seal ring | Cast iron/ZCuZn16Si4/ZCuSn10Zn2 |
Pump Selections
Model | Inlet/Outlet | Capacity | Head | Speed | Shaft power(kw) |
150S-78 | 150/150 | 160 | 78 | 2900 | 45 |
150S-50 | 150/150 | 160 | 50 | 2900 | 27.3 |
200S-95 | 200/200 | 280 | 95 | 2900 | 94 |
200S-63 | 200/200 | 280 | 63 | 2900 | 59.3 |
200S-42 | 200/200 | 280 | 42 | 2900 | 37.7 |
250S-65 | 250/250 | 485 | 65 | 1450 | 108.7 |
250S-39 | 250/250 | 485 | 39 | 1450 | 62.1 |
250S-24 | 250/250 | 485 | 24 | 1450 | 36.9 |
250S-14 | 250/250 | 485 | 14 | 1450 | 21.7 |
300S-90 | 300/300 | 790 | 90 | 1450 | 249.8 |
300S-58 | 300/300 | 790 | 58 | 1450 | 148.5 |
300S-32 | 300/300 | 790 | 32 | 1450 | 79 |
300S-19 | 300/300 | 790 | 19 | 1450 | 46.9 |
300S-12 | 300/300 | 790 | 12 | 1450 | 31.1 |
350S-125 | 350/350 | 1260 | 125 | 1450 | 531 |
350S-75 | 350/350 | 1260 | 75 | 1450 | 304 |
350S-44 | 350/350 | 1260 | 44 | 1450 | 177.6 |
350S-26 | 350/350 | 1260 | 26 | 1450 | 101.5 |
350S-16 | 350/350 | 1260 | 16 | 1450 | 63.8 |
500S-13 | 500/500 | 2020 | 13 | 980 | 86.2 |
500S-35 | 500/500 | 2020 | 35 | 980 | 219 |
500S-98 | 500/500 | 2020 | 98 | 980 | 678 |
600S22 | 600/600 | 3241 | 22 | 980 | 231.8 |
600S75 | 600/600 | 3060 | 75 | 980 | 694.4 |
800S32 | 800/800 | 5500 | 32 | 730 | 538.5 |
800S47 | 800/800 | 5500 | 47 | 730 | 782.2 |

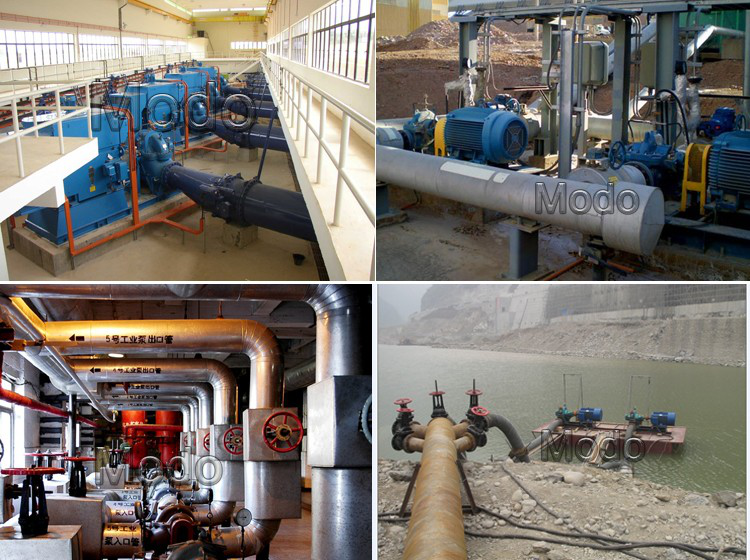

Application
