Head 500ft 2500gpm pump

Name: Head 500ft 2500gpm pump
Brand: MODO
SKU: 41073101

MSS series Heavy Duty 55KW Submersible Slurry Pump are a heavy duty, electro-submersible slurry pumps designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and industry.

Send Inquiry

Download

Product Details

500 ft of head with 2500 gpm pump application in mines

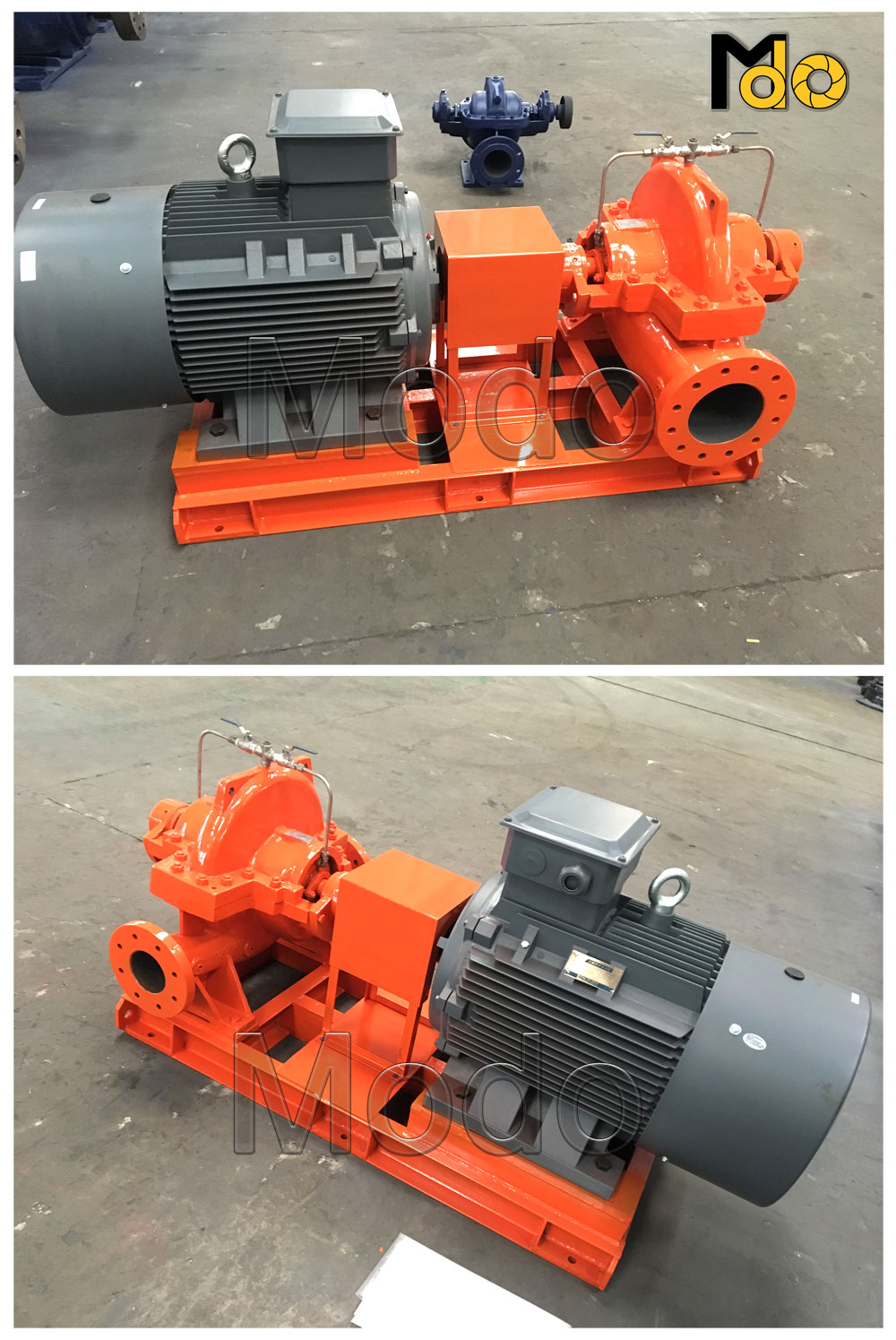

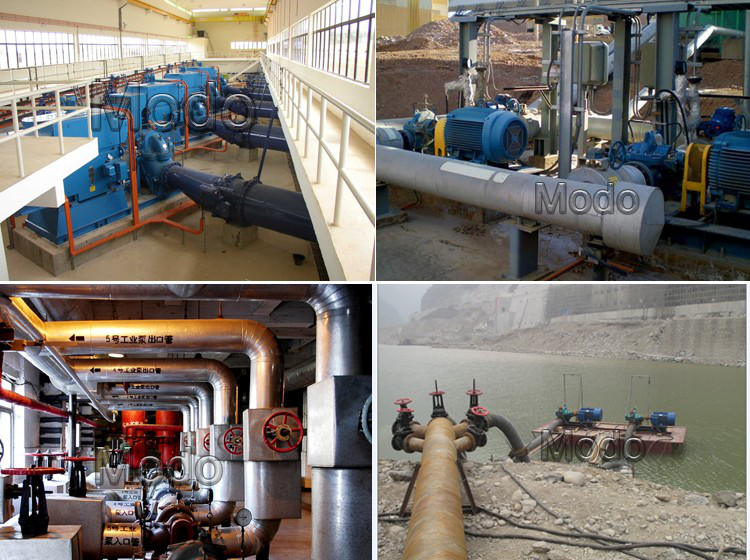

MS type split casing water pump is a single-stage centrifugal pump, horizontal in the open, for the transport of water and physical and chemical properties similar to water in liquid, the liquid temperature should not exceed 80 °C, suitable for factories, mines, power plants, city drainage, drainage irrigation and water conservancy.

Pump Specifications

·Usage:	Clean water/Sea water
·Type:	MS Double Suction Water Pump
·Capacity	68 m³/hr to 30000 m³/hr
·Head	6 m to 230 m
·Speed:	585 rpm/730rpm/980rpm/1450rpm/2980rpm
·Outlet Diameter:	150mm to 1600mm (6＂up to 64＂)
·Temperature	Max.: 80 ℃

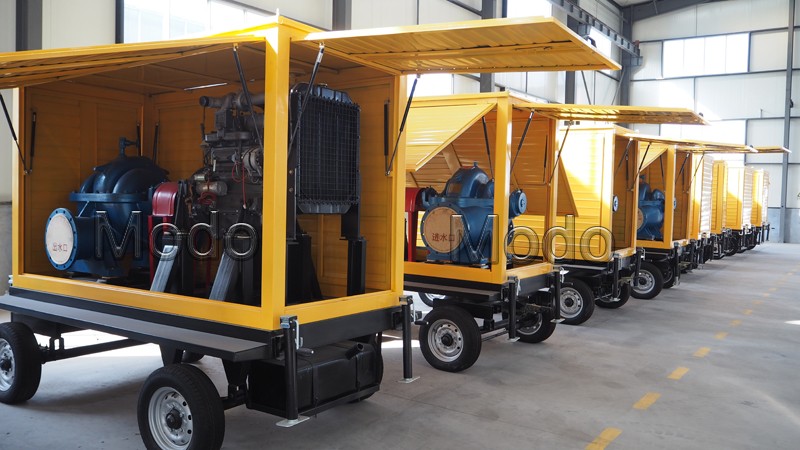

·Drive	Diesel or Electric
·Shaft	4140 Mild Steel
·Shaft Sleeve	Cast iron/3 Cr13/40 Cr
·Pump Casing	Cast iron/Cast steel/SS 304/SS316
·Impeller	Cast iron/Cast steel/SS 304/SS316/Bronze
·Shaft seal	Mechanical seal/Packing gland seal
·Seal ring	Cast iron/ZCuZn16Si4/ZCuSn10Zn2

Pump Selections

Model	Inlet/Outlet (mm)	Capacity m³/h	Head m	Speed (rpm)	Shaft power(kw)
150S-78	150/150	160	78	2900	45
150S-50	150/150	160	50	2900	27.3
200S-95	200/200	280	95	2900	94
200S-63	200/200	280	63	2900	59.3
200S-42	200/200	280	42	2900	37.7
250S-65	250/250	485	65	1450	108.7
250S-39	250/250	485	39	1450	62.1
250S-24	250/250	485	24	1450	36.9
250S-14	250/250	485	14	1450	21.7
300S-90	300/300	790	90	1450	249.8
300S-58	300/300	790	58	1450	148.5
300S-32	300/300	790	32	1450	79
300S-19	300/300	790	19	1450	46.9
300S-12	300/300	790	12	1450	31.1
350S-125	350/350	1260	125	1450	531
350S-75	350/350	1260	75	1450	304
350S-44	350/350	1260	44	1450	177.6
350S-26	350/350	1260	26	1450	101.5
350S-16	350/350	1260	16	1450	63.8
500S-13	500/500	2020	13	980	86.2
500S-35	500/500	2020	35	980	219
500S-98	500/500	2020	98	980	678
600S22	600/600	3241	22	980	231.8
600S75	600/600	3060	75	980	694.4
800S32	800/800	5500	32	730	538.5
800S47	800/800	5500	47	730	782.2
