2000m3/h Double Suction Pump

2000m3/hr double suction water pump

Description

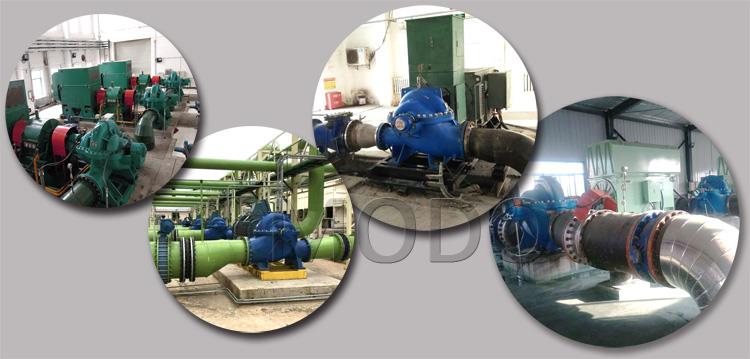

The MS 2000m3/hr double suction water pump is a single-stage double suction horizontal split centrifugal water pump.Compared with other pumps of the same type, S-type horizontal double suction pump has the characteristics of long service life, high efficiency, reasonable structure, low operation cost, convenient installation and maintenance. It is an ideal pump for fire protection, air conditioning, chemical industry, water treatment and other industries.

Performance Data

Flow rate	2000M3/hr
Head	13m
Speed	970rpm
Inlet diameter	500mm
Outlet diameter	400mm
Efficiency	85%
Weight	1500kg
NPSHr	5.7m

Materials

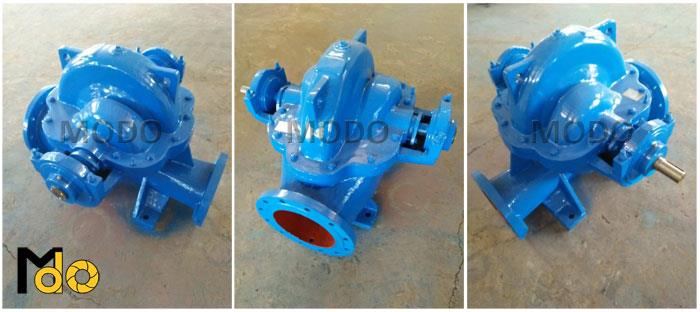

Pump Photos

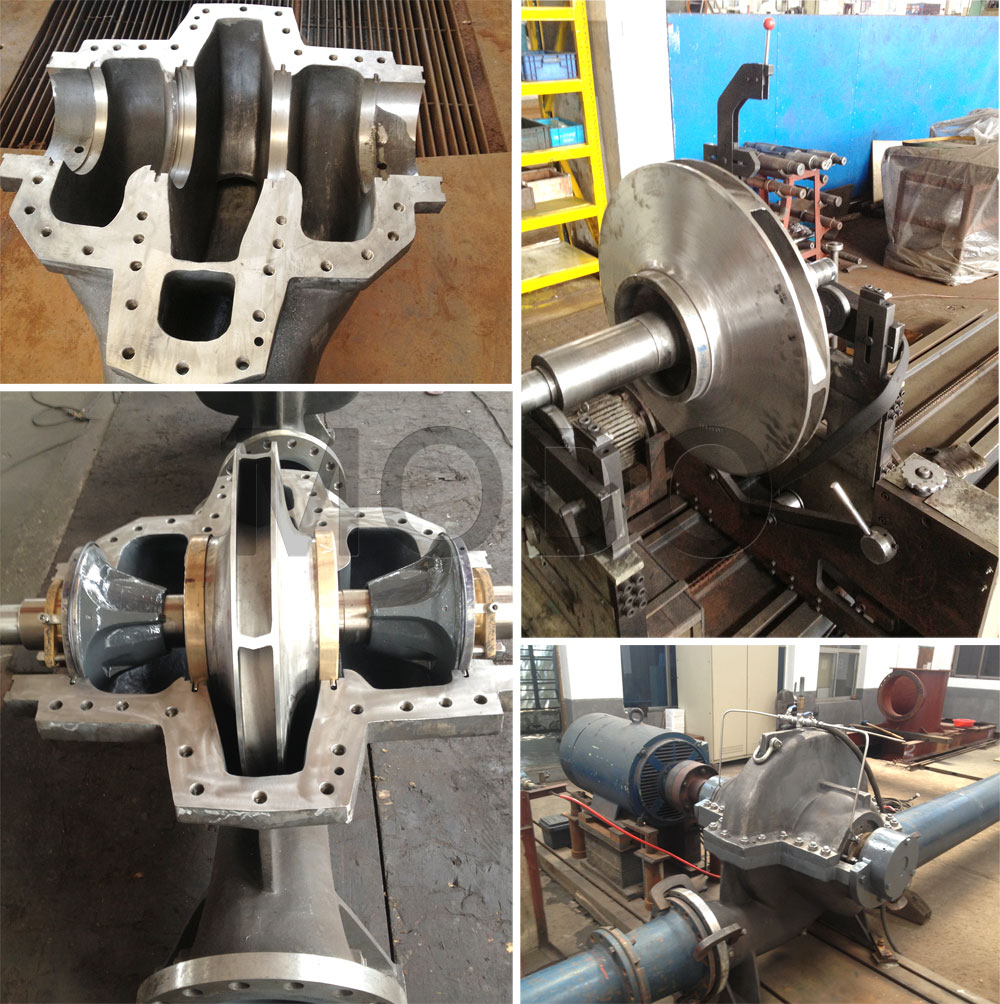

Pump parts

Features:

Double suction design can effectively reduce axial force

The double volute design can effectively reduce the radial force

The middle open structure can remove and maintain the internal parts of the pump, such as bearing, wear ring, impeller and shaft seal without disturbing the motor or pipeline

The perfect model spectrum includes more than 40 models and 400 specifications, and provides impeller cutting service to meet the needs of customers

Rich customized options, including high temperature pump (120 degrees), high working pressure (1.6Mpa, 2.5MPa), internal combustion engine drive, prime mover installation position (installed on the left or right side of the pump)

Installation sequence of double suction water pump:

1, Place the water pump on the concrete foundation with embedded anchor bolts, calibrate the level by adjusting the wedge-shaped cushion block between them, and properly tighten the anchor bolts to prevent walking.

2, Pour concrete between the foundation and the pump foundation.

3, After the concrete is dry, tighten the anchor bolts and recheck the levelness of the S-type split casing pump.

4, The concentricity of motor shaft and pump shaft shall be corrected. The two shafts shall be in a straight line. The concentricity tolerance on the two shafts shall be 0.1 mm, and the non-uniformity tolerance of end face clearance along the circumference shall be 0.3 mm

5, After connecting the inlet and outlet water pipes and after commissioning, they should still meet the above requirements.

6, After checking that the rotation direction of the motor is consistent with that of the water pump, install the coupling and the connecting pin.
