Double Suction Centrifugal High Pressure Seawater Pump

Modo Pump has been focused on double suction centrifugal high pressure seawater pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our double suction centrifugal high pressure seawater pump and check the price list with us.



Double suction centrifugal high pressure seawater pump

Double suction pump is a horizontal split casing type double suction centrifugal pump, which is mainly used to transport clean water with temperature not higher than 105 ℃ or liquid with physical and chemical properties similar to water.



Application area

• Power generation industry: power plant cooling circulating pump / open and closed water circulating pump

• Paper industry: raw water suction pump

• Steel industry: heating furnace circulating pump /high pressure descaling pump / rolling mill cooling pump

• Petrochemical Industry: short distance pipeline transportation / crude oil transportation / oil loading and unloading at oil terminal / circulating water

• Water industry: waterworks water supply / urban drainage / fire water supply / water supply pump station / industrial water

• Desalination: seawater supply pump / seawater recirculation pump

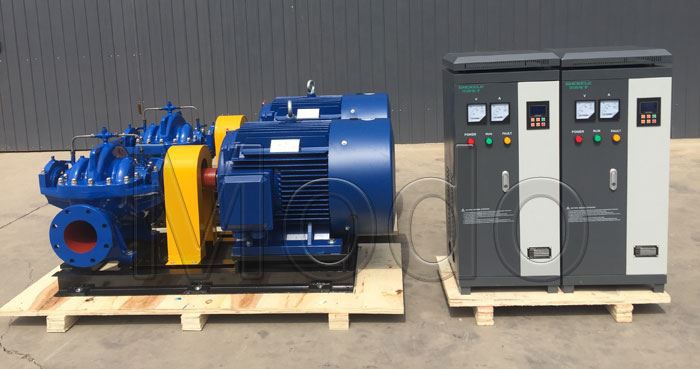

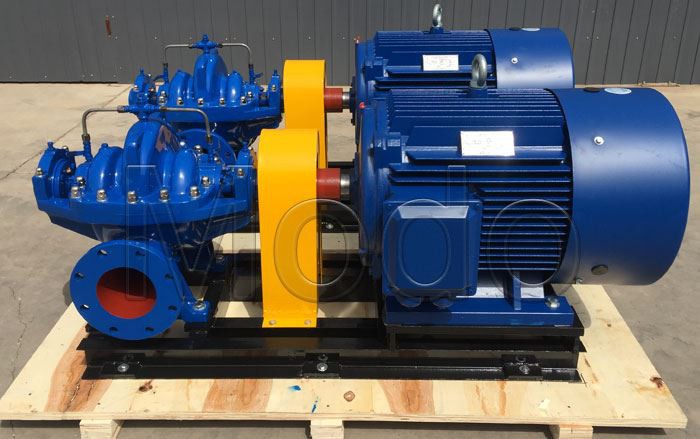

Here is the split casing pumps we sent to Saudi Arabia.





Feature



Double suction, horizontal separation type high strength pump casing,



The high-strength pump body with reinforced design ensures the rigidity and makes the operation stable and reliable,



According to the medium configuration of multi material wear ring



The pressure and flow controllable water seal pipe can improve the operation condition of shaft seal and prolong the service life of shaft seal system





Advantage



High efficiency: introduce the best hydraulic model at home and abroad, and use CFD computational fluid dynamics analysis method to improve the optimization analysis; The performance index surpasses the industry level, reaches the advanced level, and the highest efficiency exceeds 92%



Low NPSHr: the shape of the blade inlet edge adopts convex arc optimization design, which increases the flow area of the liquid flow inlet, reduces the inlet velocity, and increases the pressure at the inlet edge, so as to improve the NPSH.



High reliability: the bearing span is short and the shaft is thick, which makes the rotor stable and reliable.
